C2 Cable Lasher

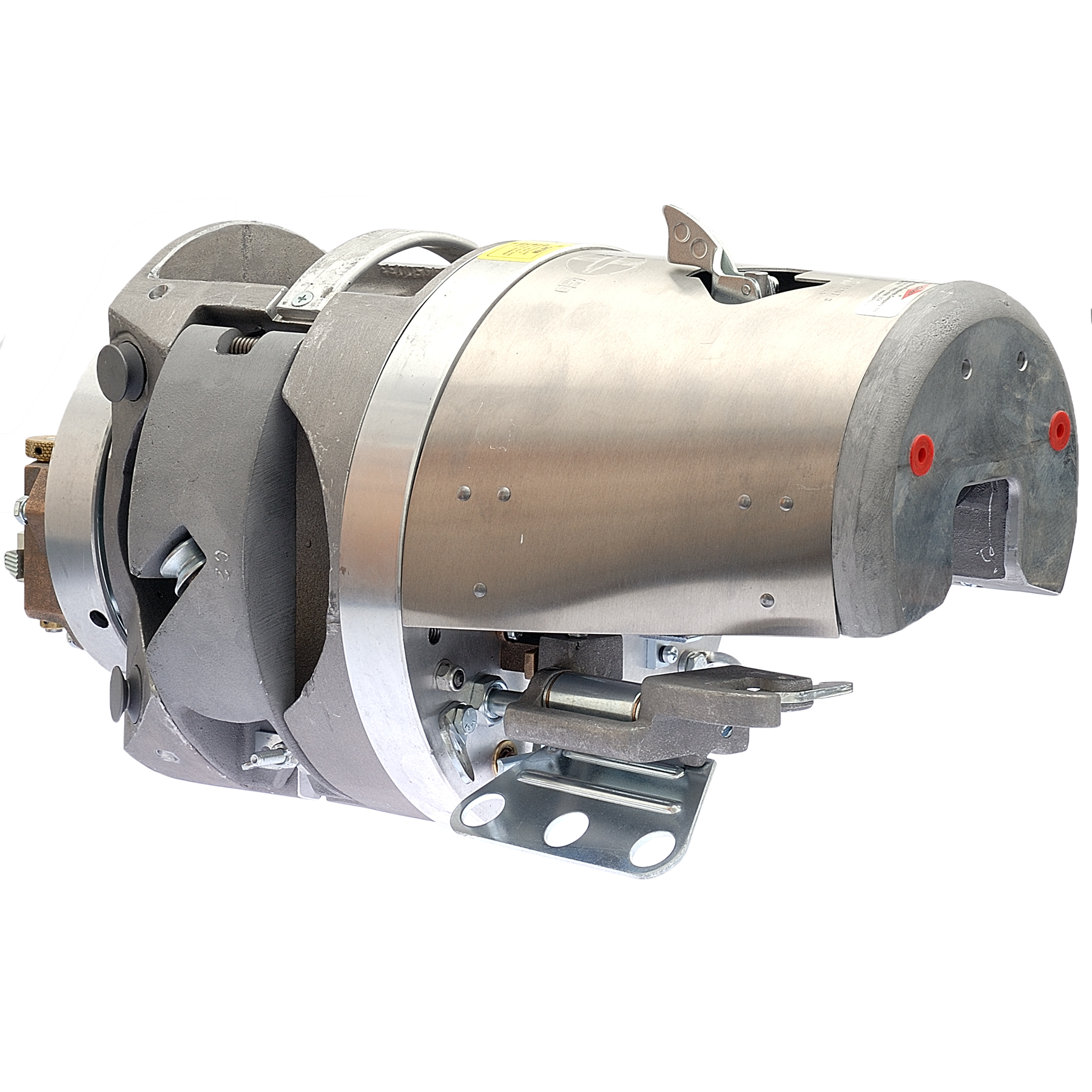

Model C2 Aerial Cable Lasher

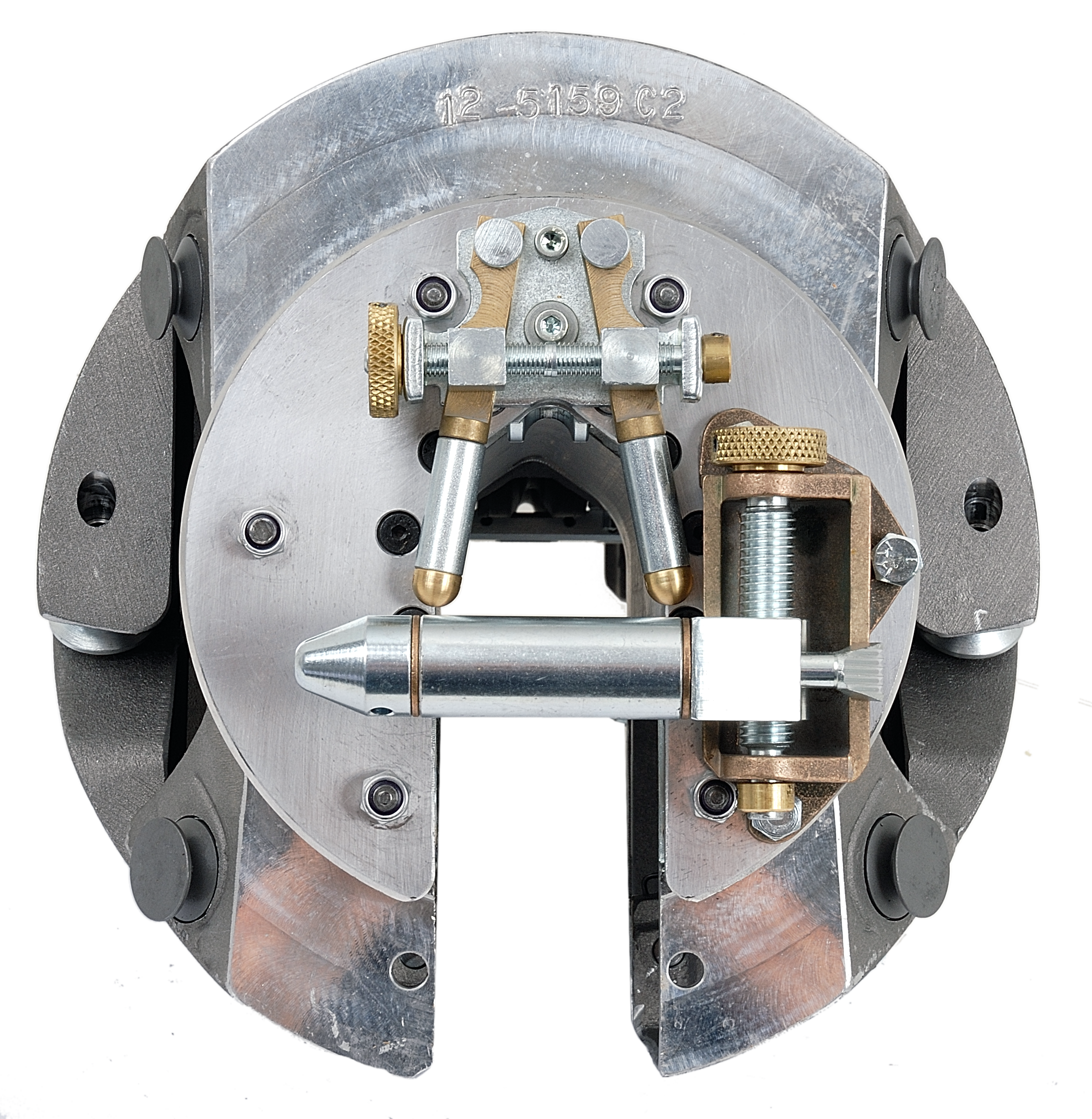

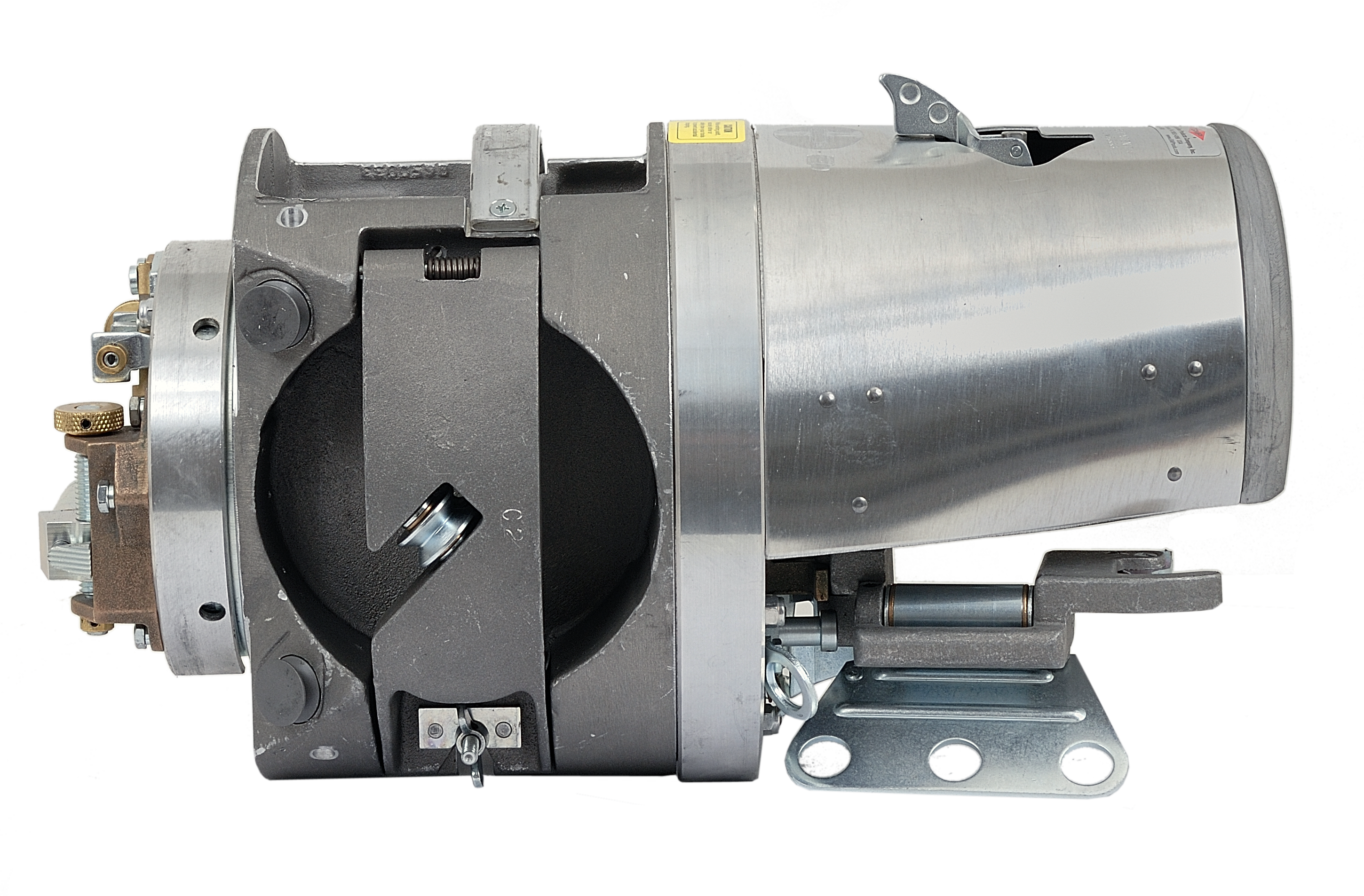

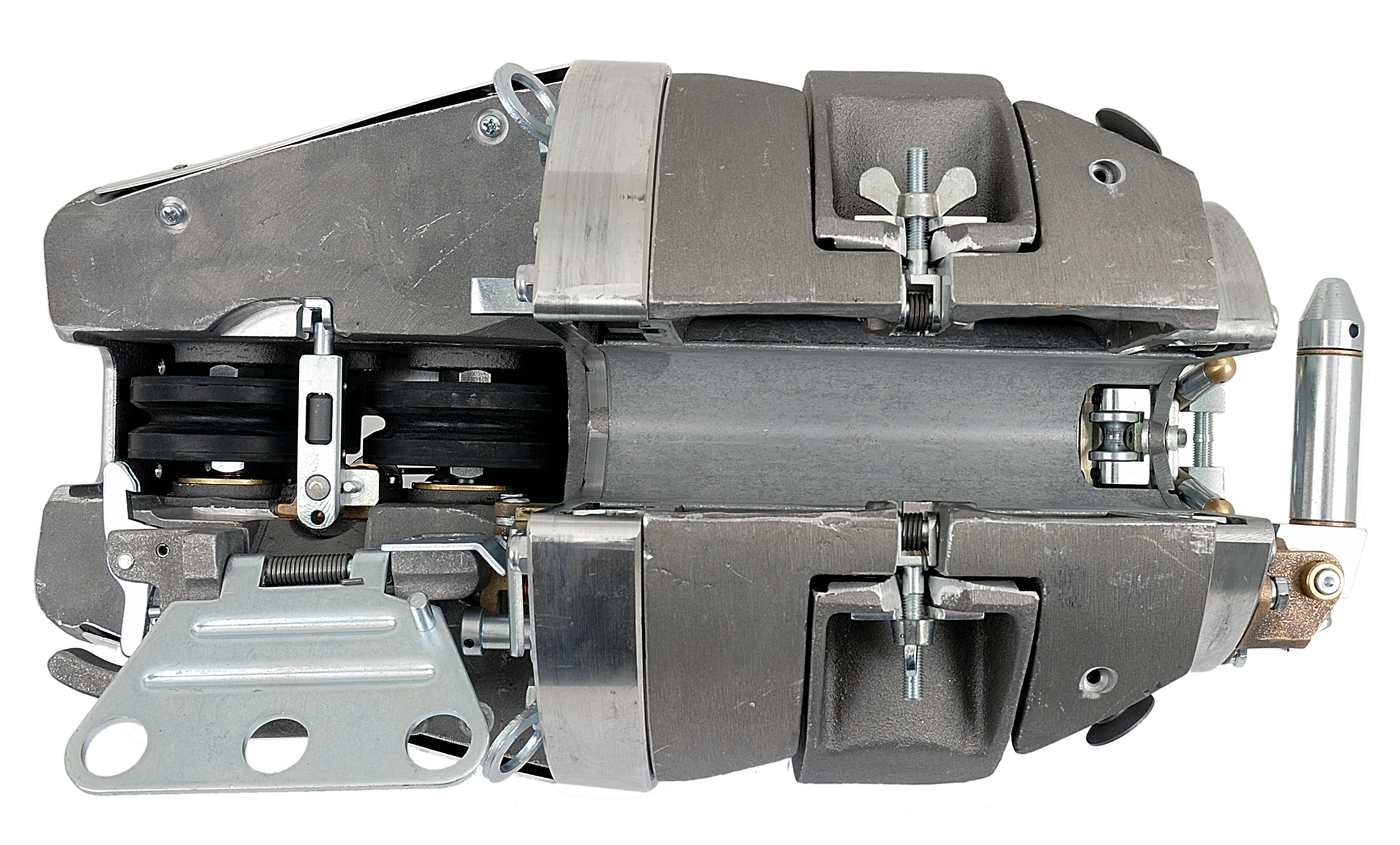

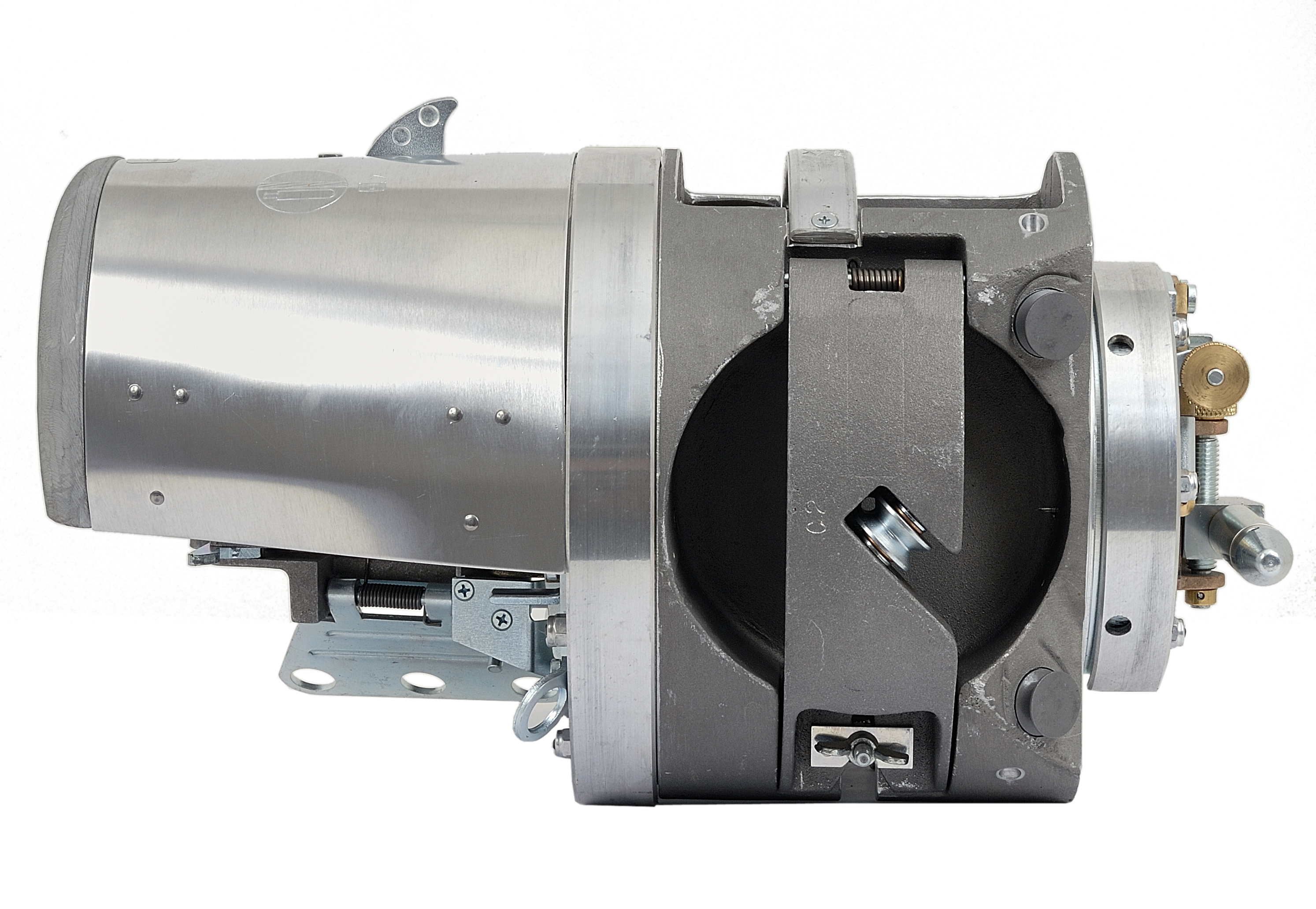

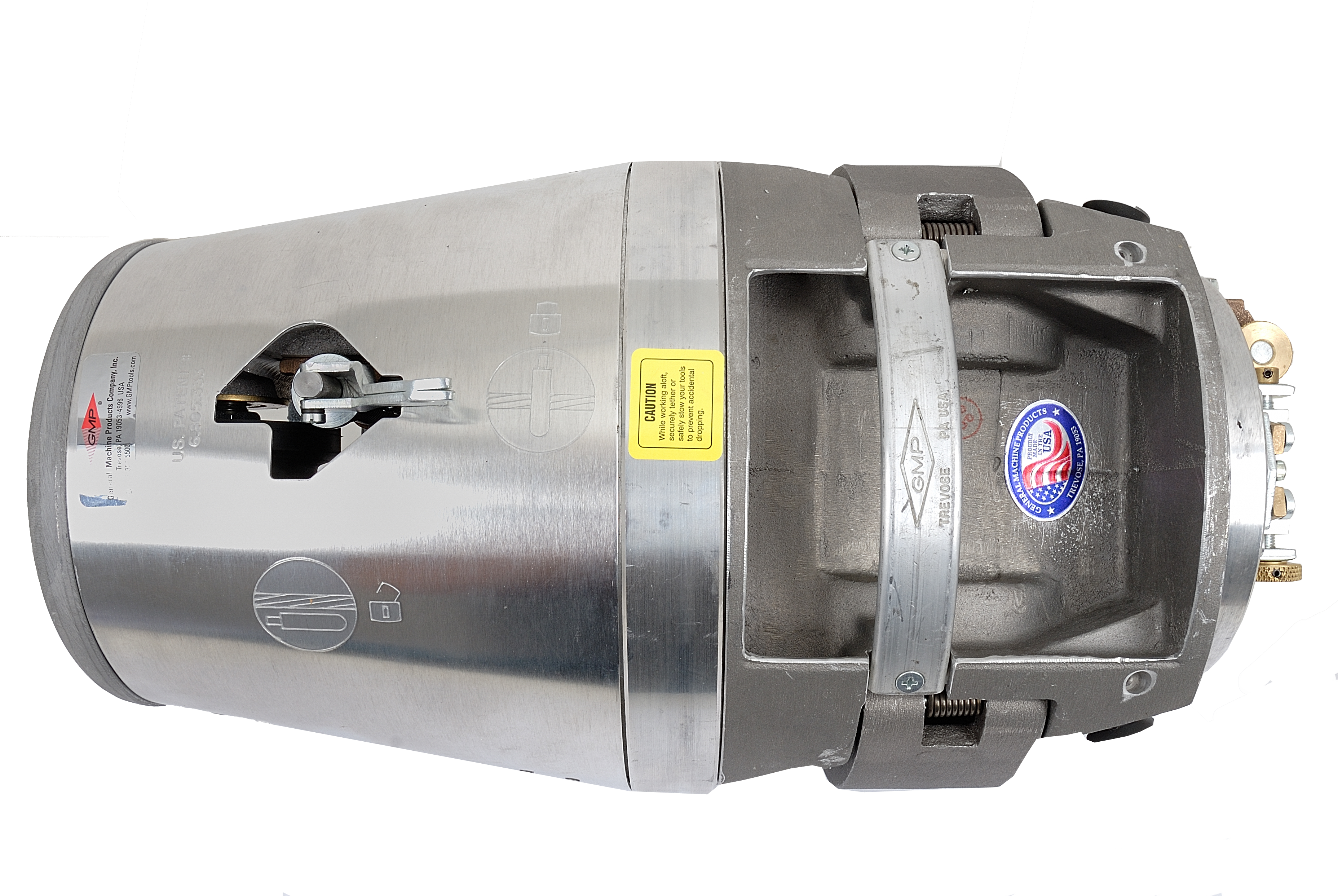

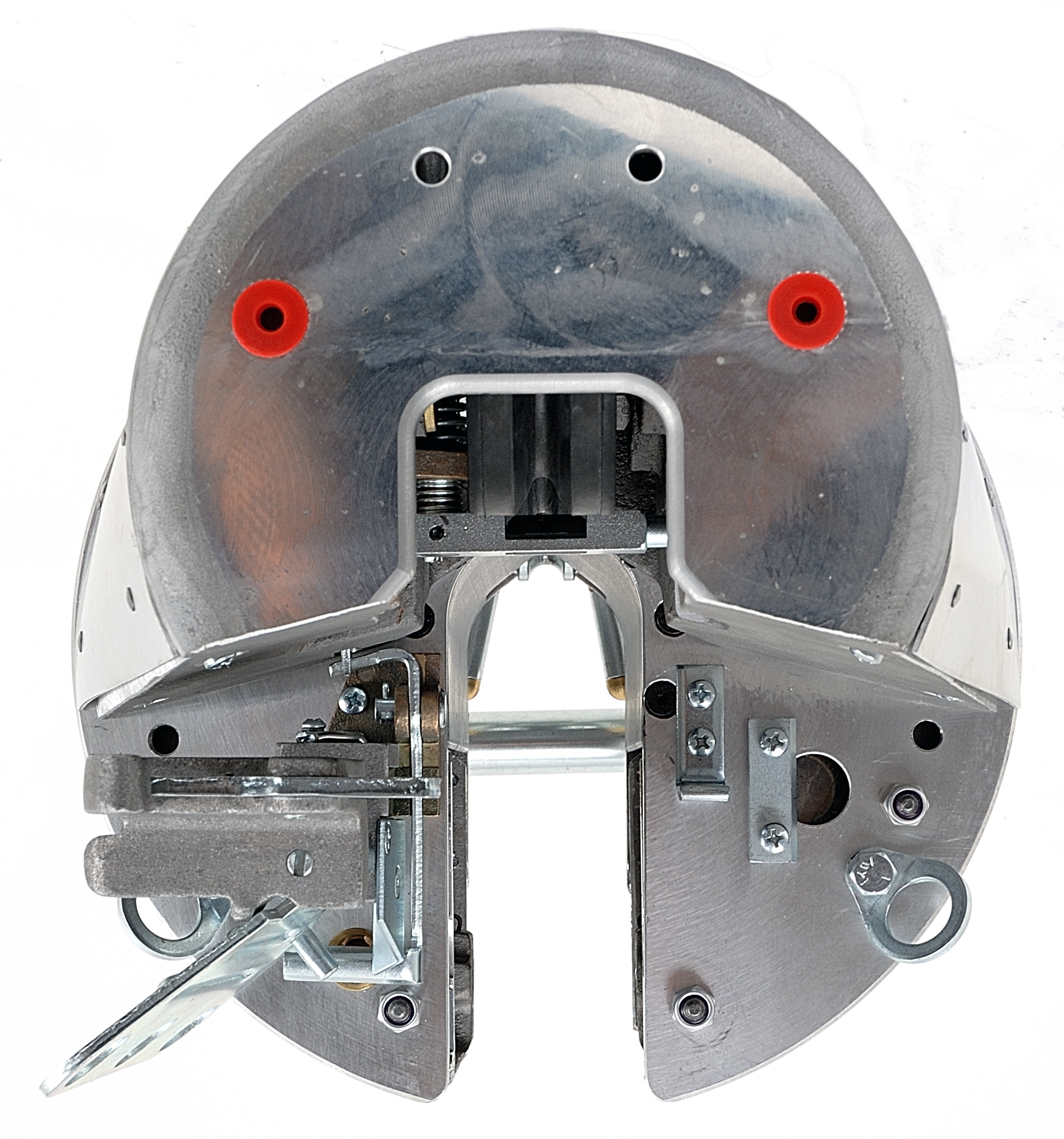

Model C2 Aerial Cable Lasher C2 Lasher right side C2 Lasher left side C2 Lasher bottom C2 Lasher top C2 Lasher front C2 Lasher rear Model C2 Aerial Cable Lasher Model C2 Aerial Cable Lasher C2 Case Towing Bridle (P/N 70190) 35 FOOT TOW ROPE Lasher Guard "Halo" Ice-Breaker Lasher Drive Wheel Kit

C2 Cable Lasher

71422

The compact Model C2 Cable Lasher is perfect for lashing smaller diameter Aerial cables to supporting strand with stainless steel lashing wire. The new design improvements make the C2 equally suited for new construction or overlashing up to its full 1 7/8 in. bundle capacity.



  • Lashes Single or bundled cables up to 1 7/8 in. (46mm) onto strand sizes 1/4 in. to 3/8 in. (6-10mm) diameter
  • New style strand lock swings out of the way for unobstructed overLashing
  • Simple Wire routing yields either “normal” or “loose” Wire tension
  • Dual Wire magazines for loading two coils of stainless Steel Lashing Wire
  • Typical Wire dimensions: 1200 ft. x .045 in. (365 m x 1.1mm) or 1600 ft. x .038 in. (487m x 1mm)
  • Lightweight and compact: Unloaded weight 35 lbs. (16kgs.); Only 10 in. O.D. x 18.5 in. long (25 x 47cm). The C2’s tapered housing eases passage through treed areas
  • The C2 Cable Lasher is furnished with a 6 ft. (1.6m) bridle Rope with snap Hooks, an instruction manual and a rugged, lightweight storage chest
  • The C2 and every GMP Lasher is fully serviceable to “good-as-new” specifications at our factory.

P/N

Description

Weight

71422

C2 Cable Lasher .045 in. Standard

35 lbs.(15.9kgs)

71424

C2 Cable Lasher without Strand Lock and Wide Opening for Overlashing

35 lbs.(15.9kgs)

03165

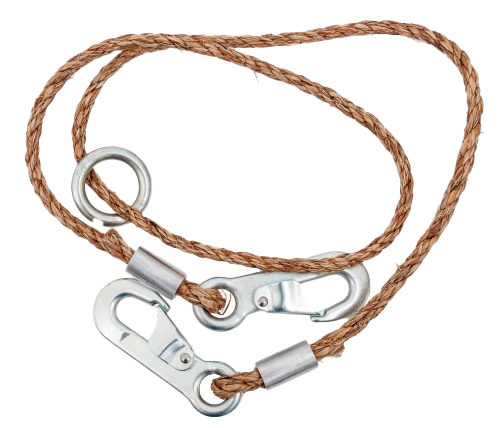

Bridle Rope Assembly only

3 lbs. (1.4kgs)

07143

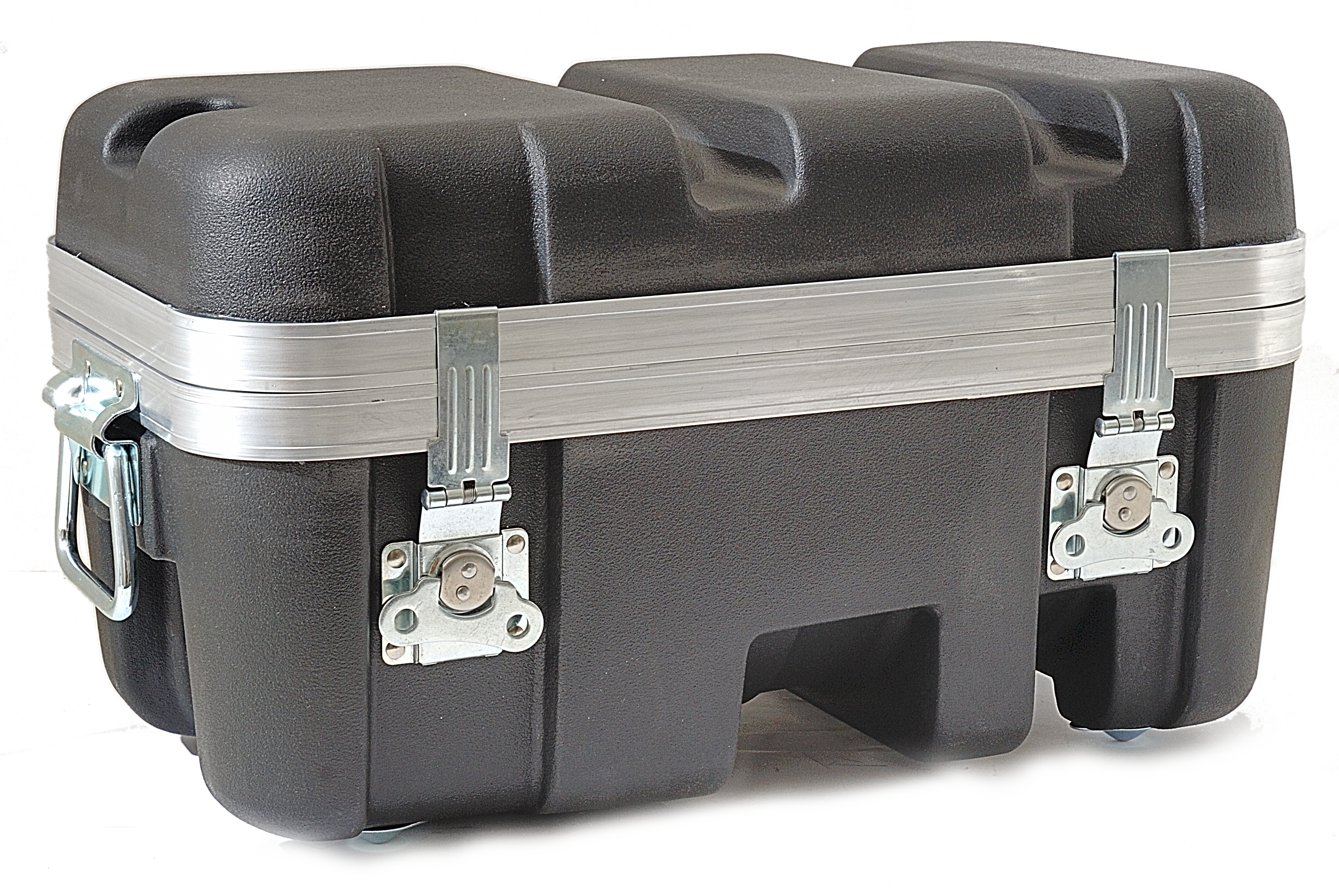

Chest Only

11 lbs. (5kgs)



C2 Cable Lasher w/Chest Shipping Weight

49 lbs. (22kgs)

70190

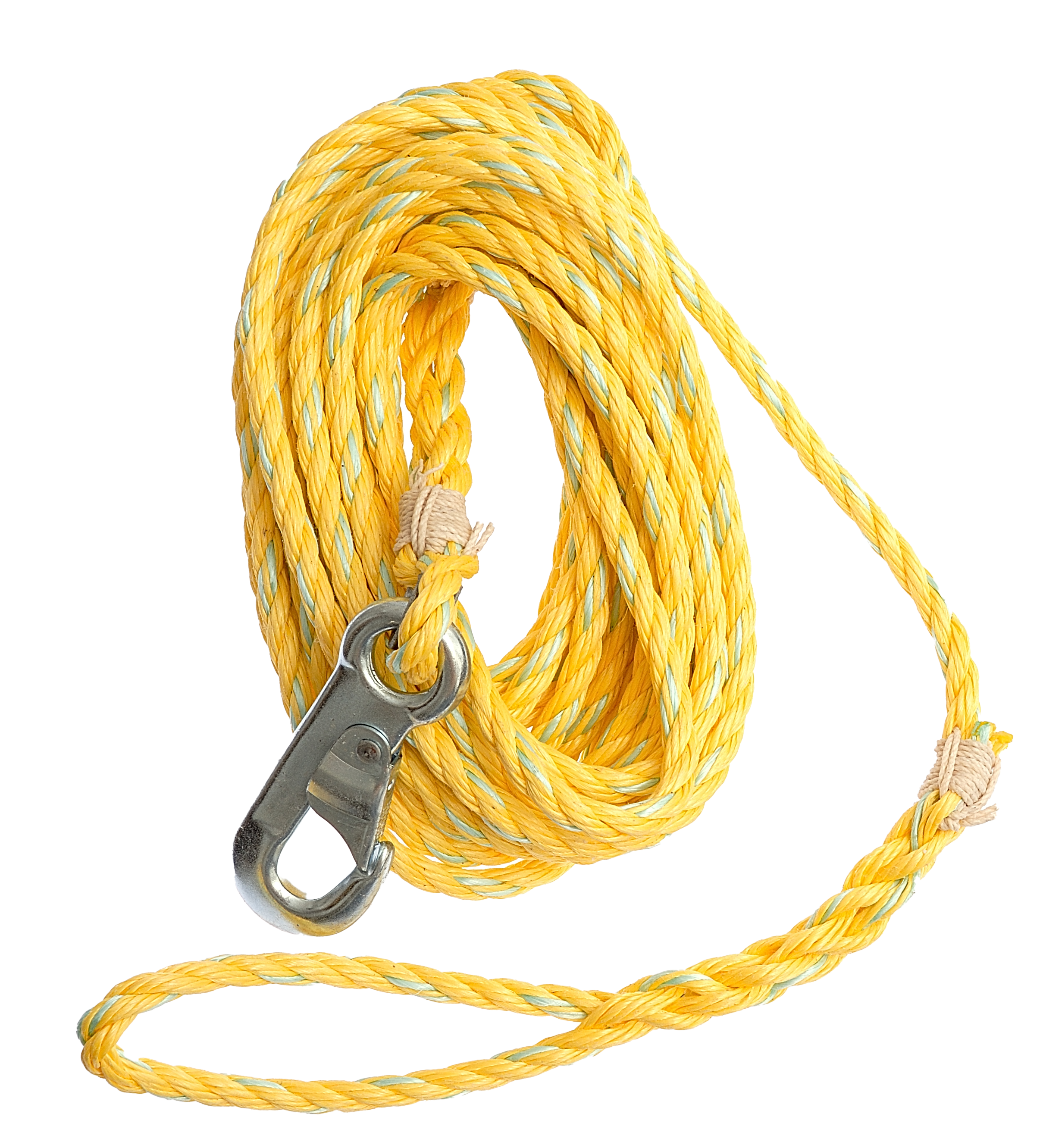

Towing Lanyard 35 ft. (optional) (250 lbs. WLL)

6 lbs. (2.7kgs)

70011

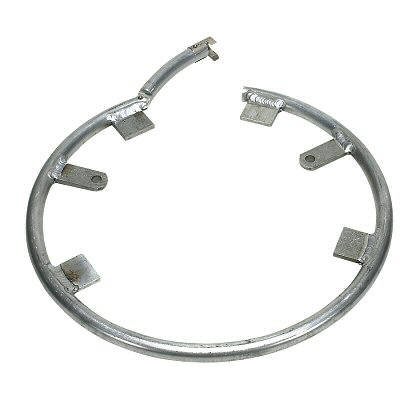

Lasher Guard "Halo" (optional)

3 lbs. (1.4kg)

28142

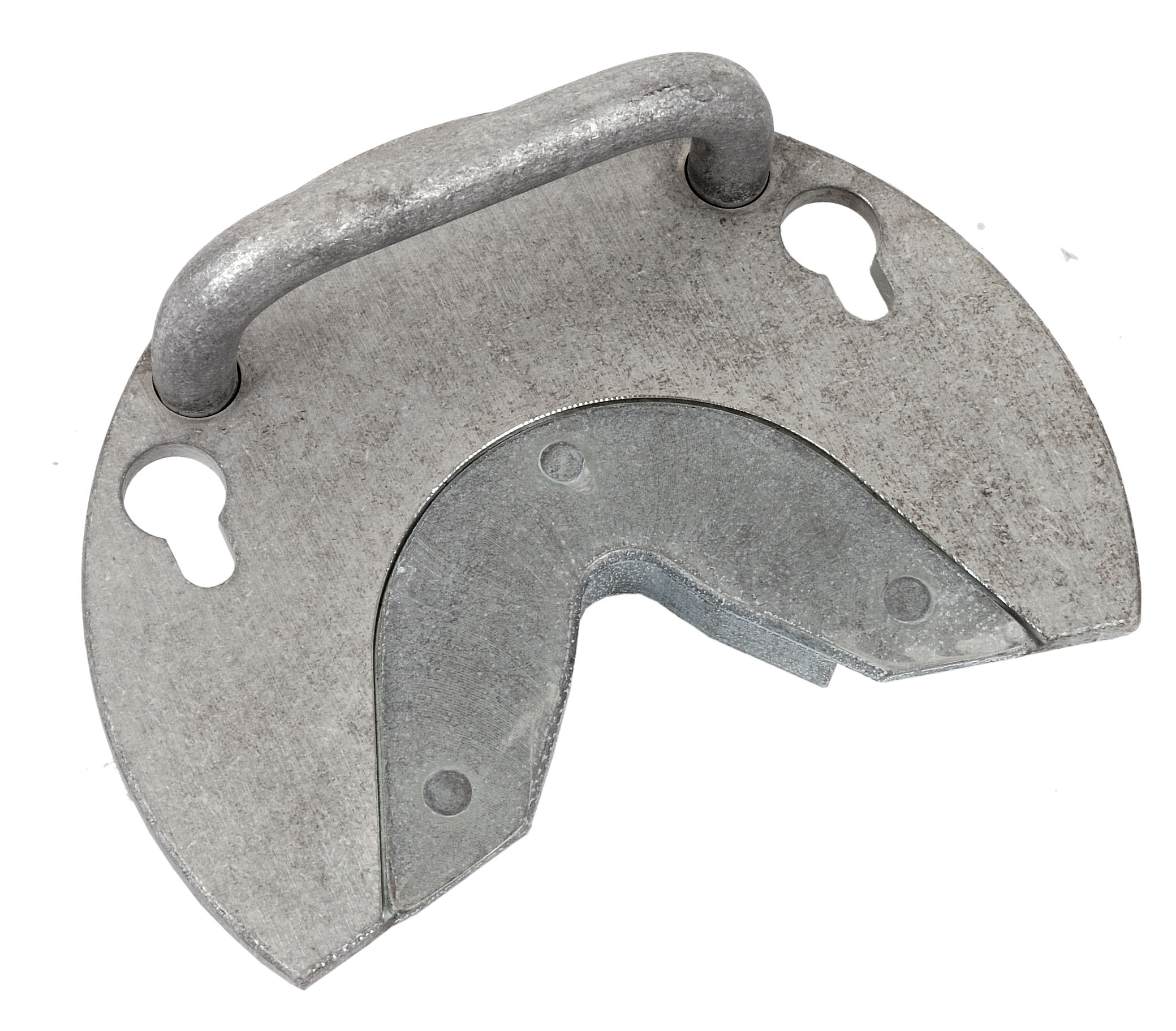

Replacement Drive Housing Handle

2 lbs. (.9kgs)

28120

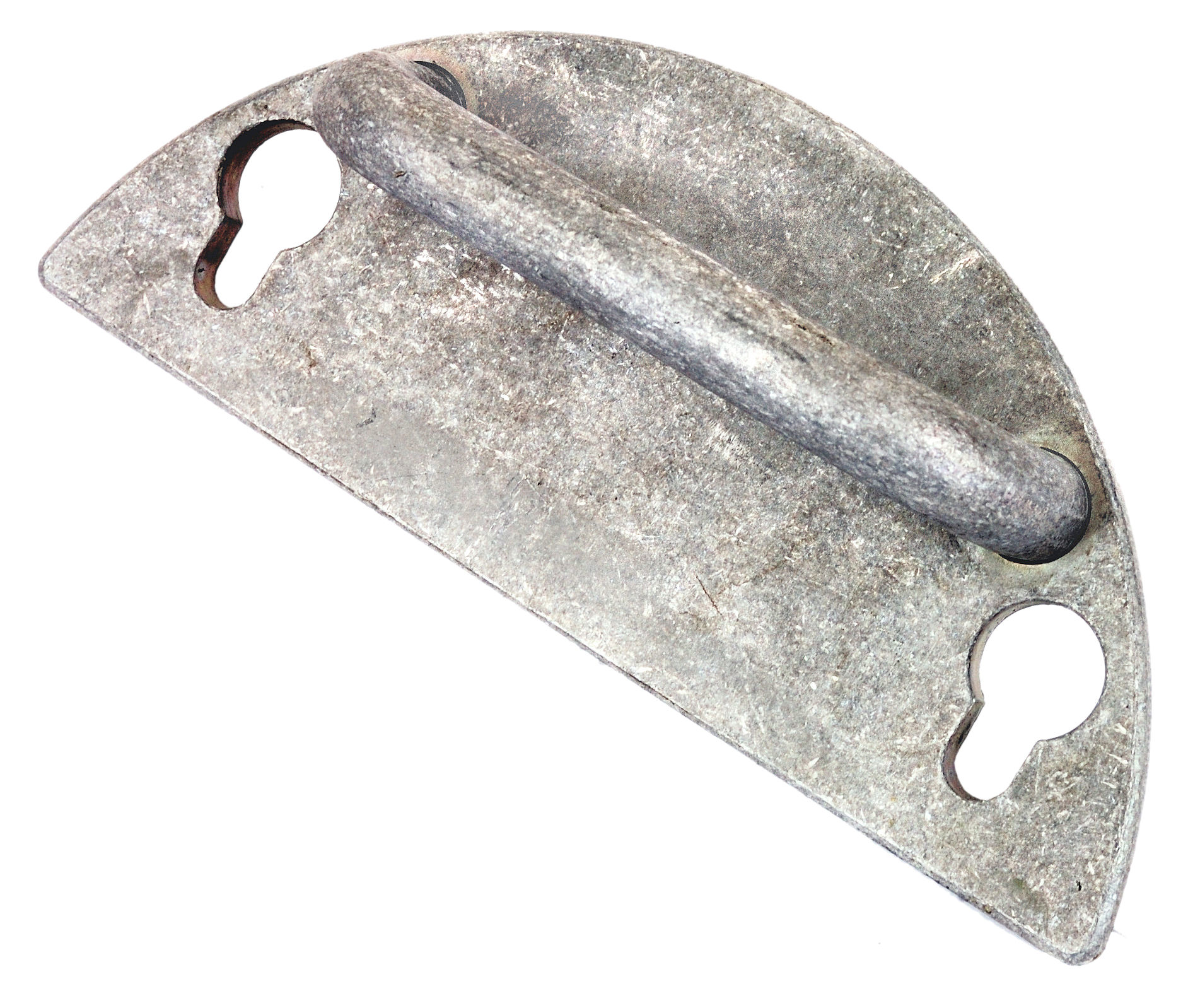

Optional Accessory Handle (provides handle when overlashing)

2 lbs. (.9kg)

33286

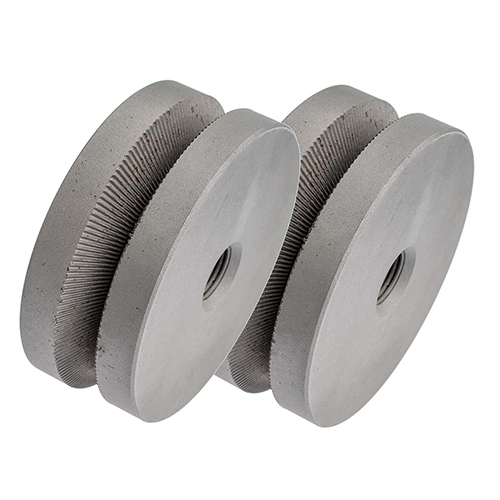

Ice Breaker Lasher Drive Wheels

5.5 lbs. (2.5kgs)





C2 CABLE LASHER

IDEAL APPLICATION

Telecommunication, Fiber Optic, Cable TV Industry

MAX BUNDLE SIZE

1 7/8 in. (48mm)

STRAND SIZE

1/4 - 3/8 in. (6.6M, 5/16M, 10M)

OVERLASHING

Yes

DRIVE

Friction Drive Wheel

WIRE SIZE (IN.)

.038, .045

COIL CAPACITY

1 or 2 depending whether single or double lashing

Length:

18.5 in.

Width:

10 in.

 Height:

9.5 in.

Weight:

35 lbs. (15.9kg)

Part Number

71422

Repair parts available at
Craftworktools.com
