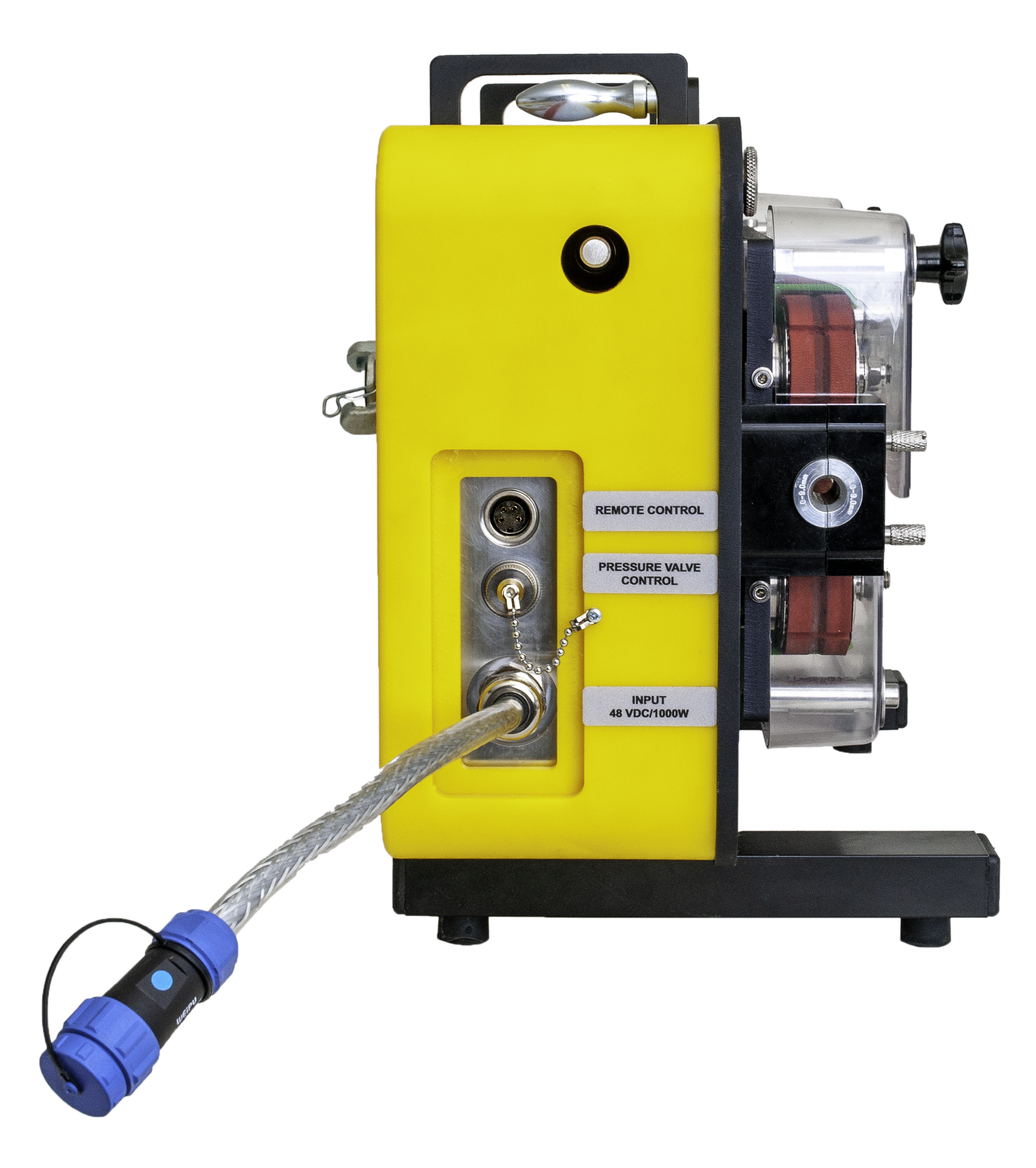

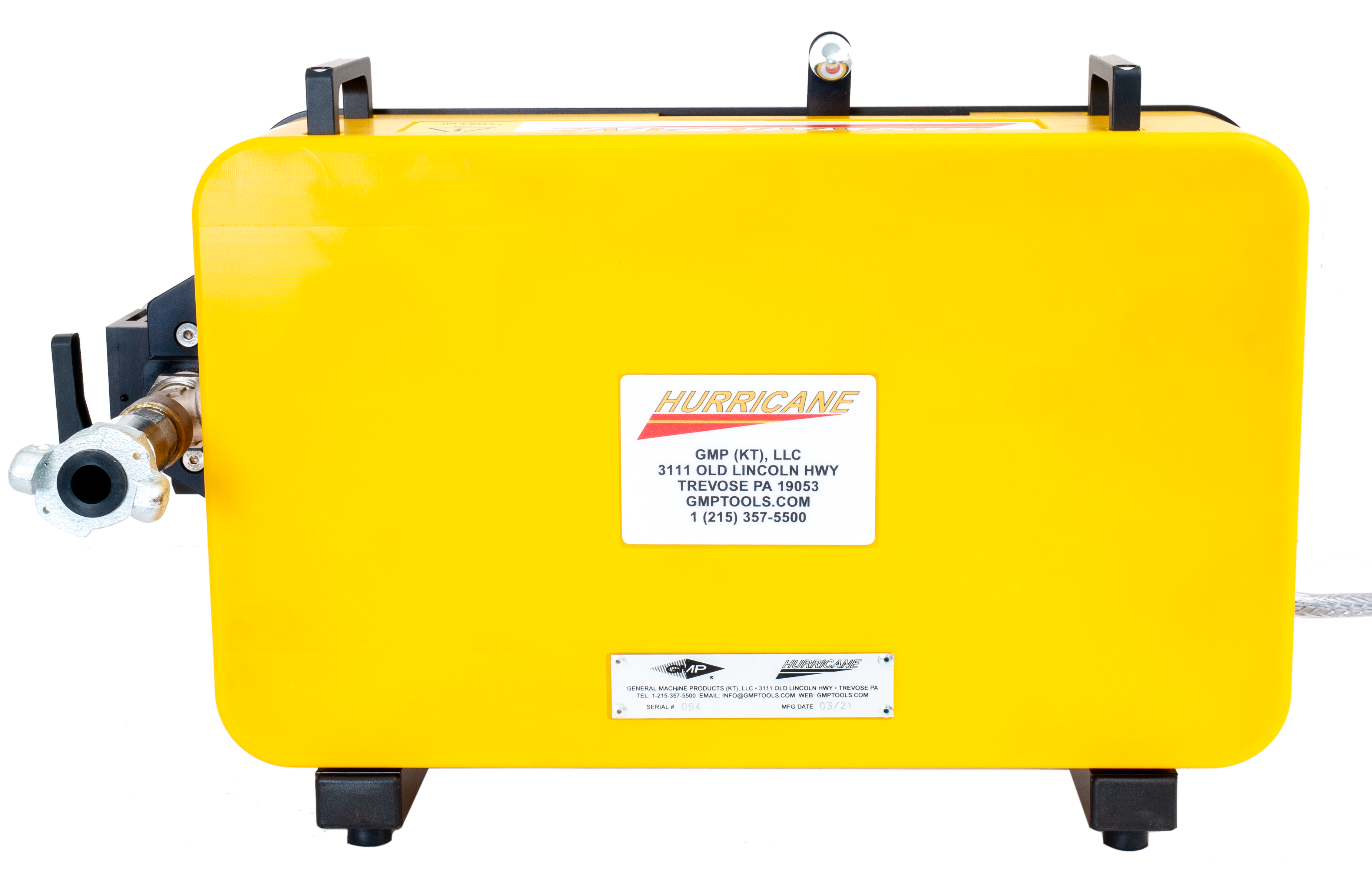

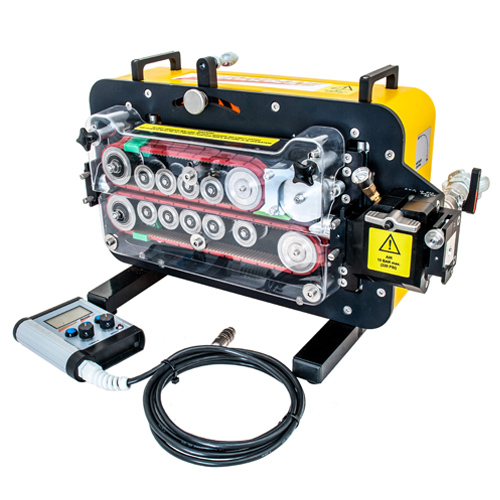

Hurricane Cable Blowing Machine
The Hurricane has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed and advanced data logging.
Single-person operation with safe, easy-to-operate ergonomic controls combines low maintenance and high reliability to form the machine’s key features.
- Dual Digital servo motor drive system
- Digital cable speed and length monitoring
- Advanced data logging system measures speed, force, distance, GPS location and environmental conditions (Android tablet included)
- Auto stop facility when air stone fitted

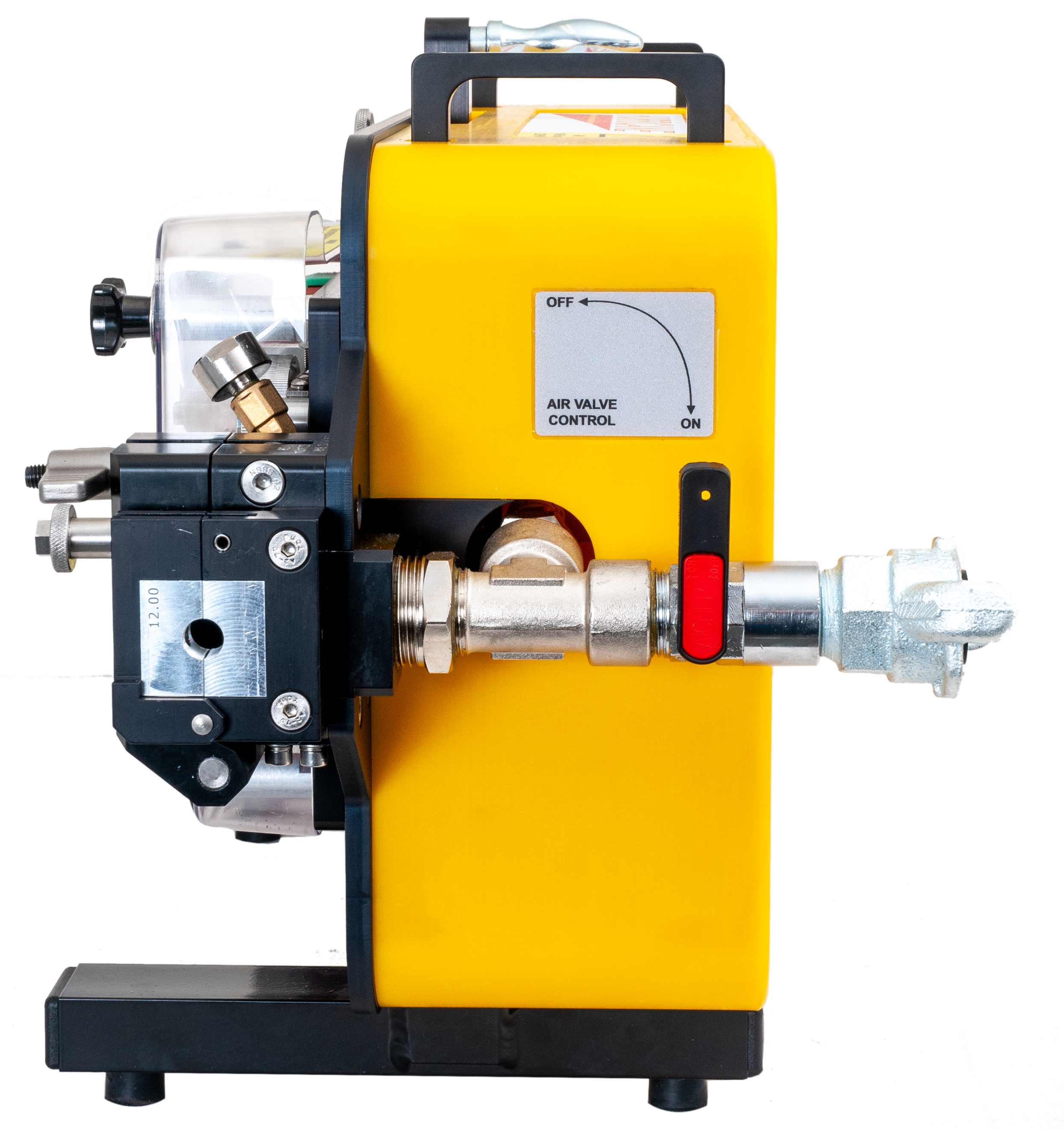

- Integral air valve and pressure gauge
- Allows forward and reverse operation
- Installs an Industry-leading range of cables with one machine
- Easy cable threading
WHAT'S INCLUDED WITH YOUR HURRICANE |
Hurricane Cable Blowing Machine |
Remote Control |
Android Tablet for data logging |
1 set of duct clamp and seal kit for duct size of your choice |
1 cable guide kit for cable size of your choice |
1 package of 5 cable seals for cable size of your choice |
Toolkit |

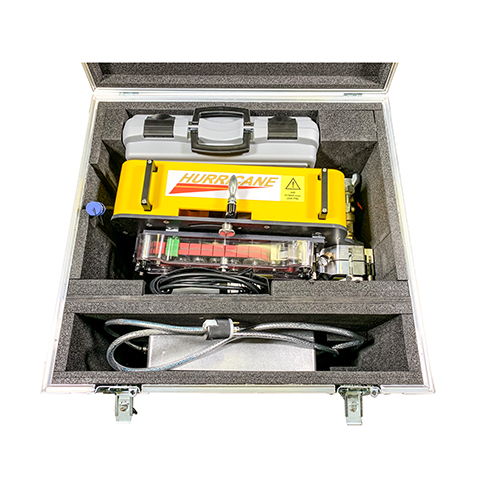

Travel Case for Hurricane and accessories |
Manual |
WHAT'S INCLUDED WITH YOUR HURRICANE PLUS |
Hurricane Cable Blowing Machine |
Remote Control |
Android Tablet for data logging |
3 sets of duct clamp and seal kit for duct sizes 5, 7, and 8mm |
3 cable guides kit for cable sizes 2.5 to 9mm |
3 packages of 5 cable seals for cable sizes 2.5 to 9mm |
Toolkit |
Travel Case for Hurricane and accessories |
Manual |
WHAT'S INCLUDED WITH YOUR HURRICANE MAX |
Hurricane Cable Blowing Machine |
Remote Control |
Android Tablet for data logging |
Included every tube and cable size available at time of configuration |
Toolkit |
Travel Case for Hurricane and accessories |
Manual |
P/N | DESCRIPTION | WEIGHT |
90000 | Hurricane Cable Blowing Machine * | 53 lbs. (24kg) |
90055 | Hurricane Plus Cable Blowing Machine * |
|
90054 | Hurricane Max Cable Blowing Machine * |
|
90056 | Hurricane Belt and collet kit for Flat Drop * |
|
SPECIFICATIONS | ||
|---|---|---|
| OPERATING CAPACITIES | DIMENSIONS | |
| Pushing Force: 0-95 lbs. (0-422N) | Weight: 53 lbs. (24kg) | |
| Pushing Speed: 0-279 ft/min (85m/min) | Weight with case and power supply: 113.5 lbs. (51.5kg) | |
| Cable Size: .10-.55" (2.5-14mm) O.D. | Dimensions (ht x length x width): 13 7/8" x 21 7/8" x 12" 352mm x 556mm x 305mm | |
| Sub – Duct Size: .20-.98" SDR (5-25mm) O.D. Micro - 5-25mm OD SDR - .5 inch OD | ||
| PNEUMATIC SYSTEM | POWER REQUIREMENTS | |
| Air Hose Bore (min): | 90-264VAC 50/60 Hz | |
| Operating Pressure: 220 psi (15 bar) Max | ||
| Flow: The air supply should be filtered, cooled, and dry | ||
