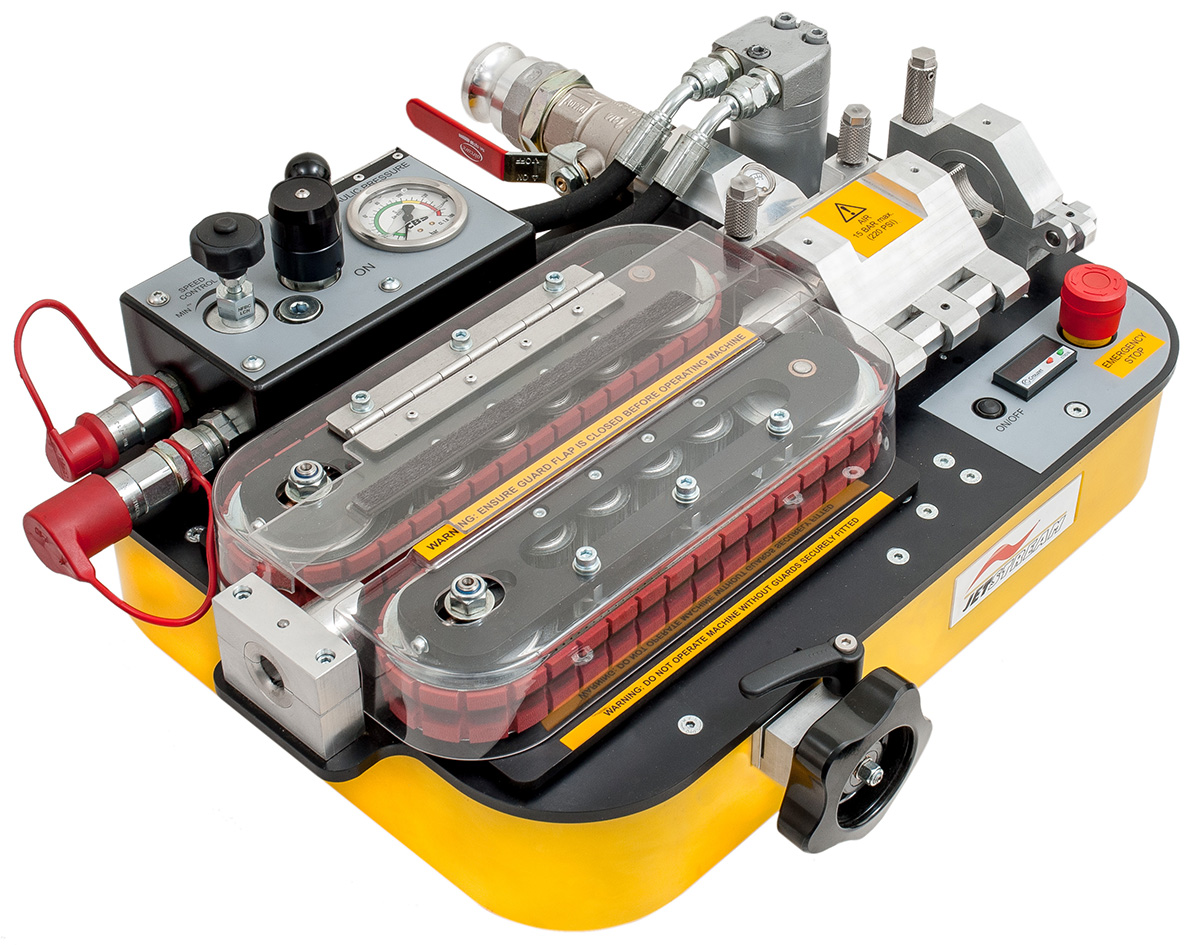

JetStream® Cable Blowing Machine
The JetStream® has been designed to provide maximum cable protection, combined with the performance and reliability of hydraulic drive. The profiled double drive belt system is driven by single 32cc hydraulic motor, powered by a supplied power pack with oil cooler.
The electronic monitoring system provides a read-out of speed and distance, helps protect against duct obstructions and includes an emergency stop. The JetStream is adjustable to suit a wide range of cable diameters .23-.79 in. (6-20mm), and duct diameters of .75-1.50 in. SDR (10-50mm OD). Optional belts suits a range of cable diameters from .16-.63 in. (4-16mm).
- Automatic cable centralizing
- Synchronous high grip profiled compliant drive belts
- Tabletop design with ergonomic controls for ease of operation
- Variable speed controls
- Digital cable speed and length monitoring
- Integral air valves and pressure gauges
- Polycarbonate safety guarding
- Low maintenance
- 4 Lug Chicago fitting adapter supplied for compressor

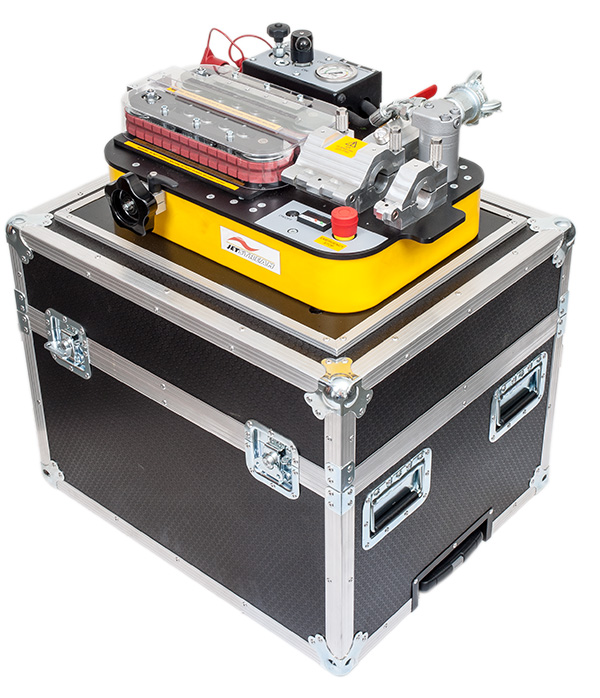

- Large wheeled travel case with pull out handle for transportation and included tool kit.
WHAT'S INCLUDED WITH YOUR JETSTREAM |
JetStream Cable Blowing Machine |
(2) 9V batteries for control |

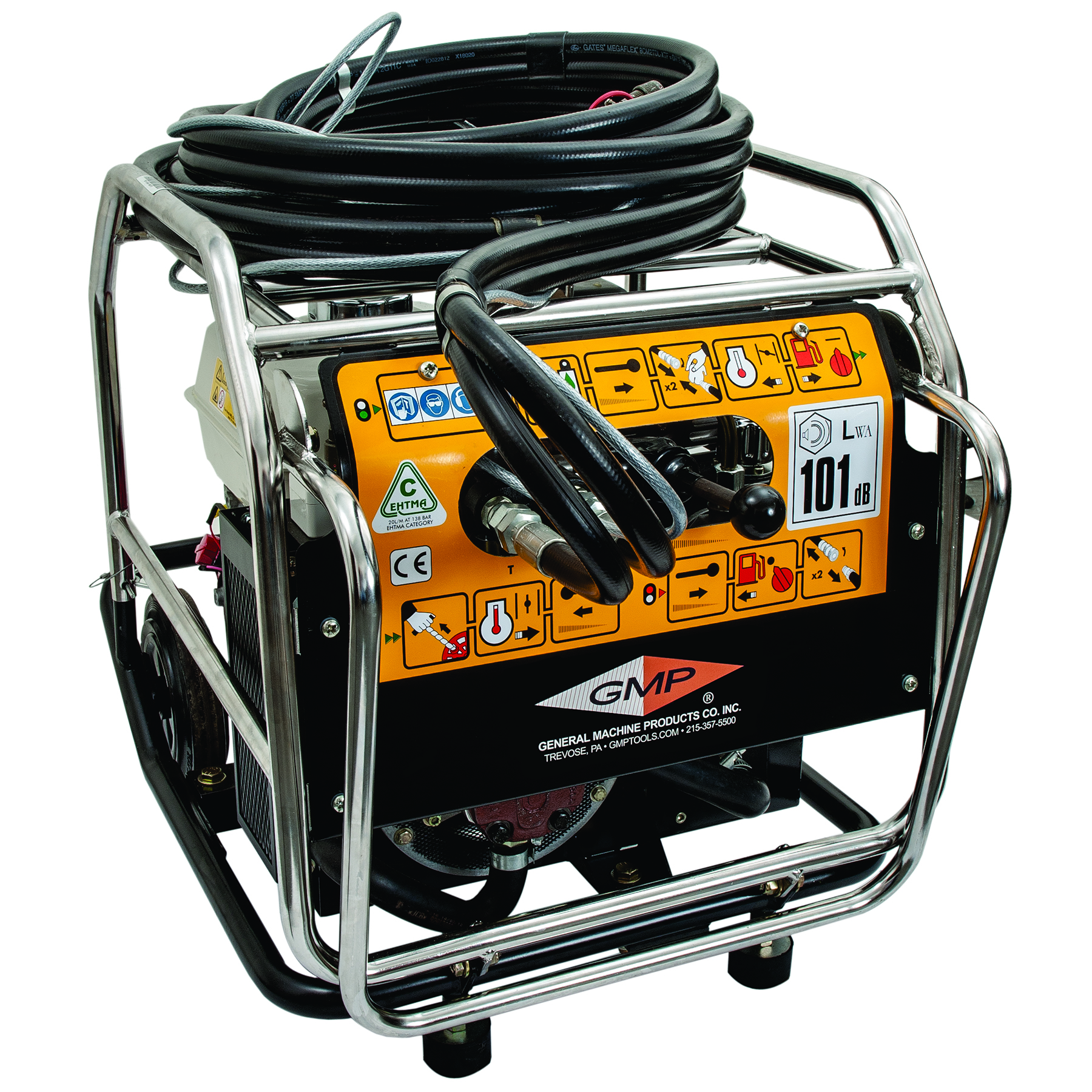

Hydraulic Power Pack |
1 set of duct clamps for duct size of your choice |
1 set of duct seals for duct size of your choice |
1 cable collet assembly for cable size of your choice |
1 package of 10 cable seals for cable size of your choice |
1 cable seal plug for cable size of your choice |
Travel Case for JetStream and accessories |
Toolkit |
Manual |
WHAT'S INCLUDED WITH YOUR JETSTREAM PLUS |
JetStream Cable Blowing Machine |
(2) 9V batteries for control |
Hydraulic Power Pack |
3 sets of duct clamps for duct sizes to cover the range of the most popular duct sizes installed |
3 sets of duct seals for duct sizes to cover the range of the most popular duct sizes installed |
3 cable collet assemblies for cable sizes to cover the range of the most popular cable sizes installed |
3 packages of 10 cable seals to cover the range of the most popular cable sizes installed |
3 cable seals plug to cover the range of the most popular cable sizes installed |
Travel Case for JetStream and accessories |
Toolkit |
Manual |
WHAT'S INCLUDED WITH YOUR JETSTREAM MAX |
JetStream Cable Blowing Machine |
(2) 9V batteries for control |
Hydraulic Power Pack |
Duct clamps for duct sizes to cover all available at the time of manufacture |
Duct seals for duct sizes to cover all available at the time of manufacture |
Collet assemblies for cable sizes to cover all available at the time of manufacture |
Cable seals (10 pack) to cover all available at the time of manufacture |
Cable seals plug to cover all available at the time of manufacture |
Travel Case for JetStream and accessories |
Toolkit |
Manual |
P/N | Description | Weight |
89950 | JetSteam Cable Blowing Machine* | Weight: 68 lbs (31kgs) |
90058 | JetStream Cable Blowing Machine PLUS kit with * |
|
90059 | JetStream Cable Blowing Machine MAX * |
|
| 38001 | Large Wheel Kit |
| Cable Diameter: .16-79 in. (4-20 mm) | Width: 19 in. (484 mm) | |
| Duct Size (Outside Dia): .75 – 1.50 in. SDR (10-50 mm OD) | Length: 24.5 in. (620 mm) | |
| Cable Speed (Adjustable): 0-280 ft/min (0-85m/min) | Height: 9.2 in. (233 mm) | |
| Air Pressure: 215 psi (15 bar) 450 cfm (12 m3/min) | Machine only Net Weight: 68 lbs. (31kgs) | |
| Power Requirement: Supplied hydraulic power pack | Total Weight (Machine, Case, and Power Pack): 277 lbs (126kgs) |
WE'RE PROTECTING YOUR INVESTMENT
|

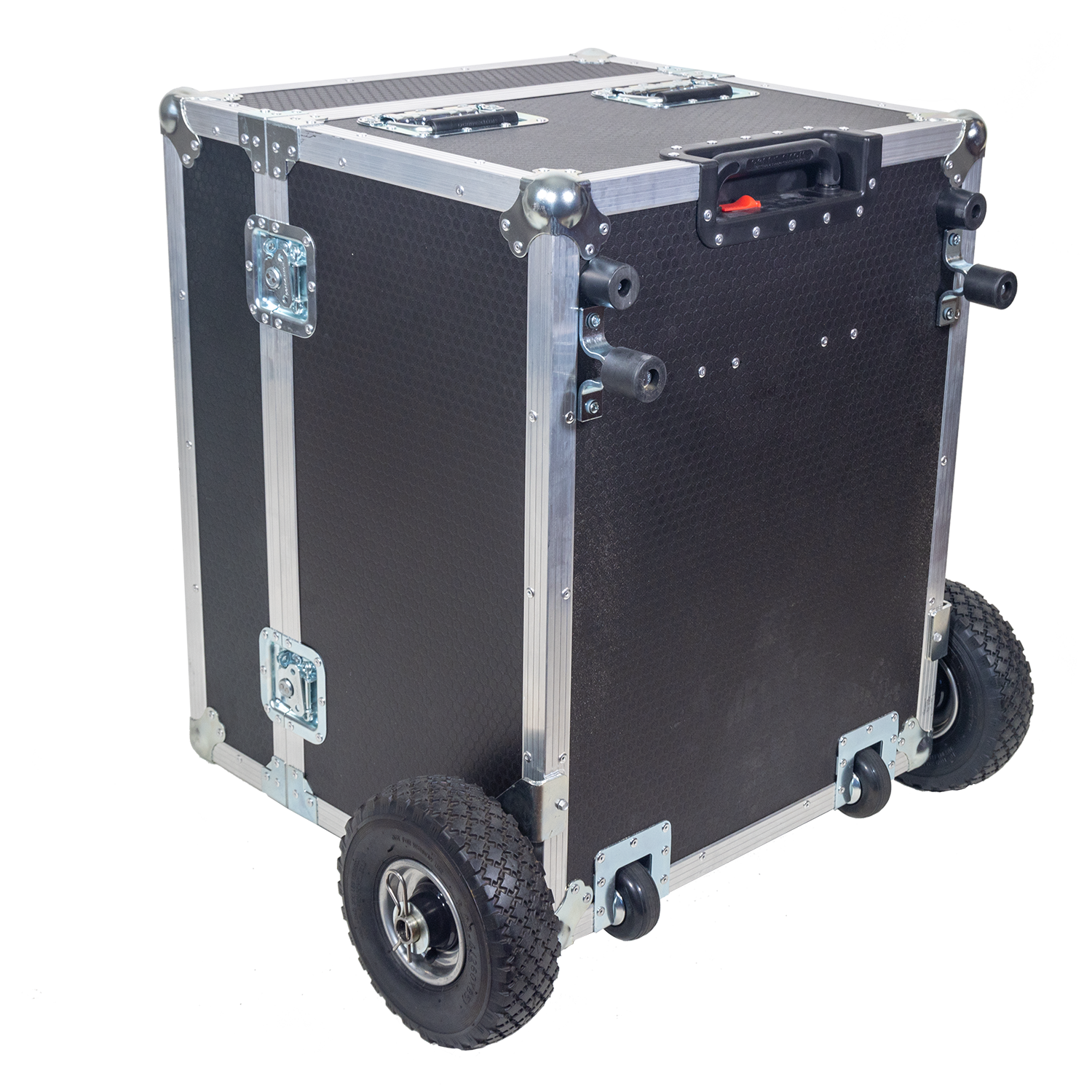

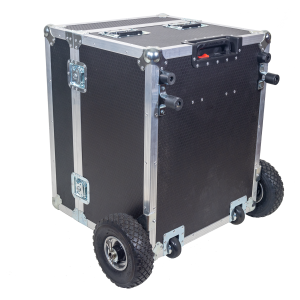

Large Wheel Kit Available P/N 38001
