ROPE TO ROPE AND SWIVEL CONNECTORS

Rope to Rope connector
Rope to Rope connector 1/2" Rope to Swivel Connector 31/32 Rope to Swivel Connector

ROPE TO ROPE AND SWIVEL CONNECTORS

71130

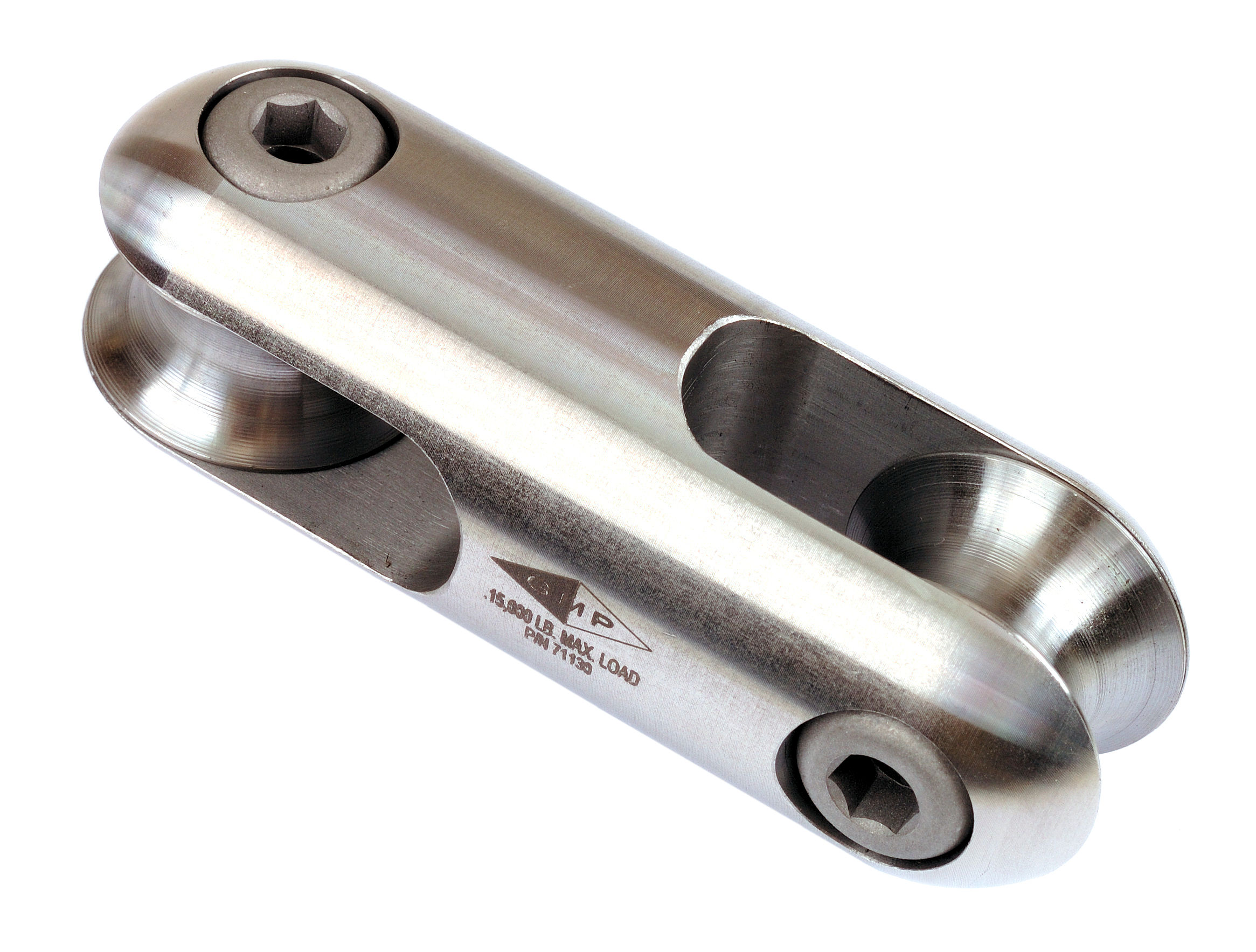

Rope to Rope Connectors

These connectors are used to connect two ropes of up to 7/8 in. (22mm) diameter.

  • Rated @ 15,000 lbs. (6804kg) max. load, this connector is made entirely from Stainless Steel
  • Available only in the one size since it can also be used for smaller rope sizes
  • Safety factor for load is 3:1 (horizontal pull only)

P/N 71130   Rope to Rope Connectors    Weight 2.7 lbs. (1.2kg)

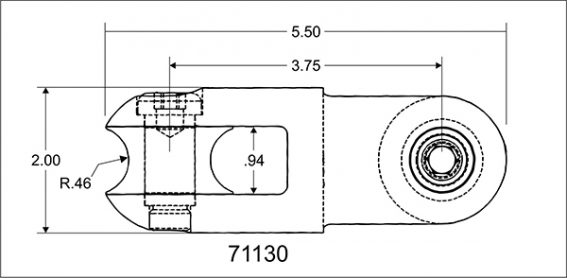

71130 rope to rope connector dimensions
















Rope to Swivel Connectors

These connectors achieve in two products what others do in four. The stainless steel connectors maximize usefulness by catering to the same rope capacity and using different ends to attach to the most popular swivel sizes.

  • The sheaves run on clevis pins which are also available as spares
  • Safety factor for load is 3:1 (horizontal pull only)
Rope to Swivel Connectors .5 inch

















Rope to Swivel Connectors .66 inch
P/NDescriptionWeight

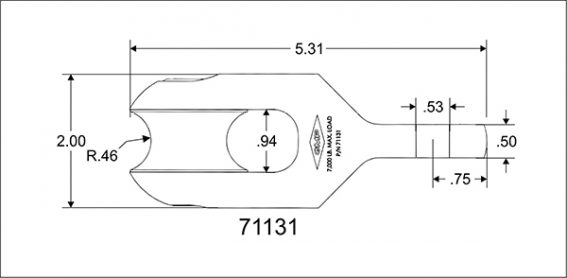

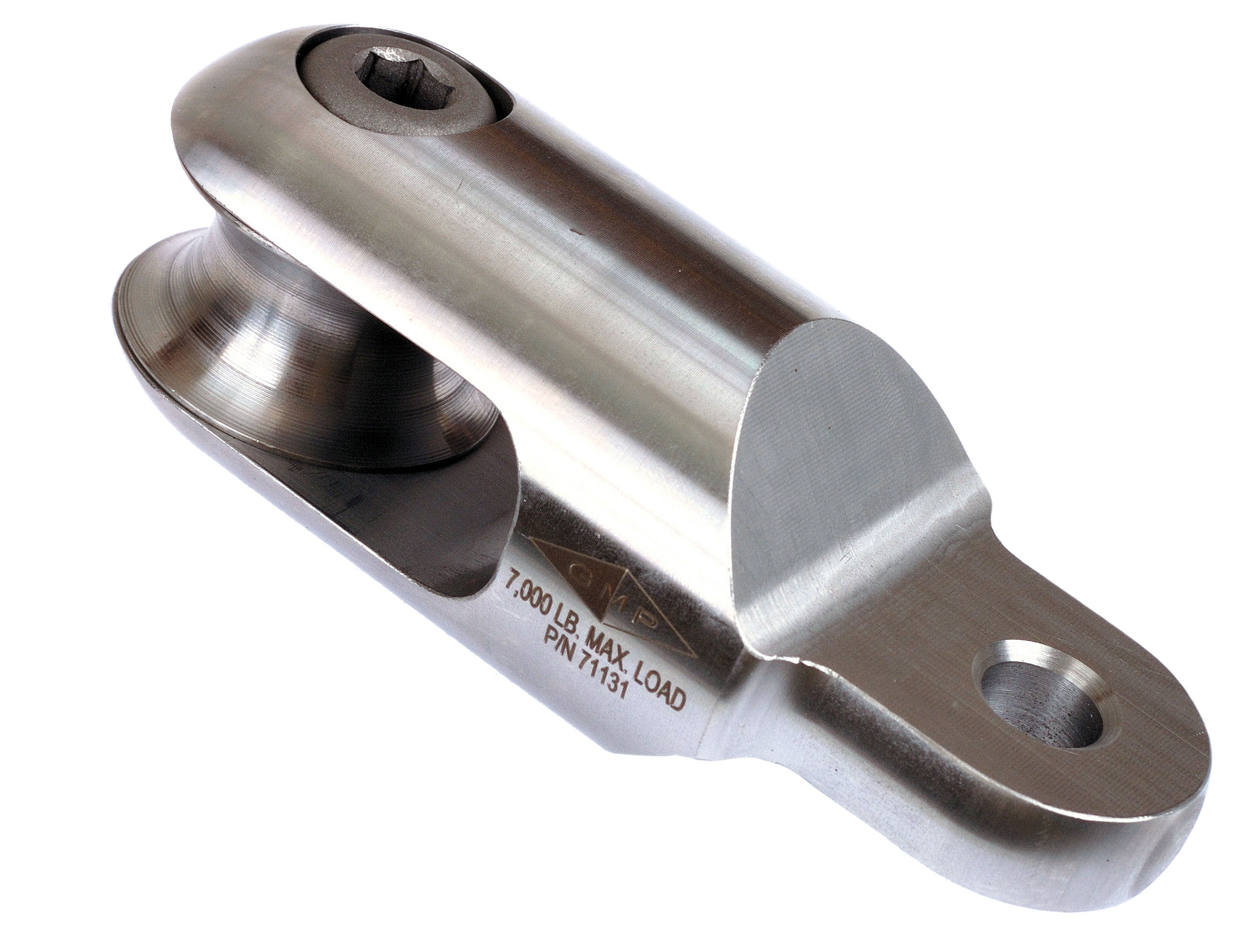

711311/2 in. Rope to Swivel Connector
Rated @7000 lbs. (3175kg) Max Load
Can be used with GMP swivel P/N 70137 and 70138		Weight 2.1 lbs. (0.95kg)

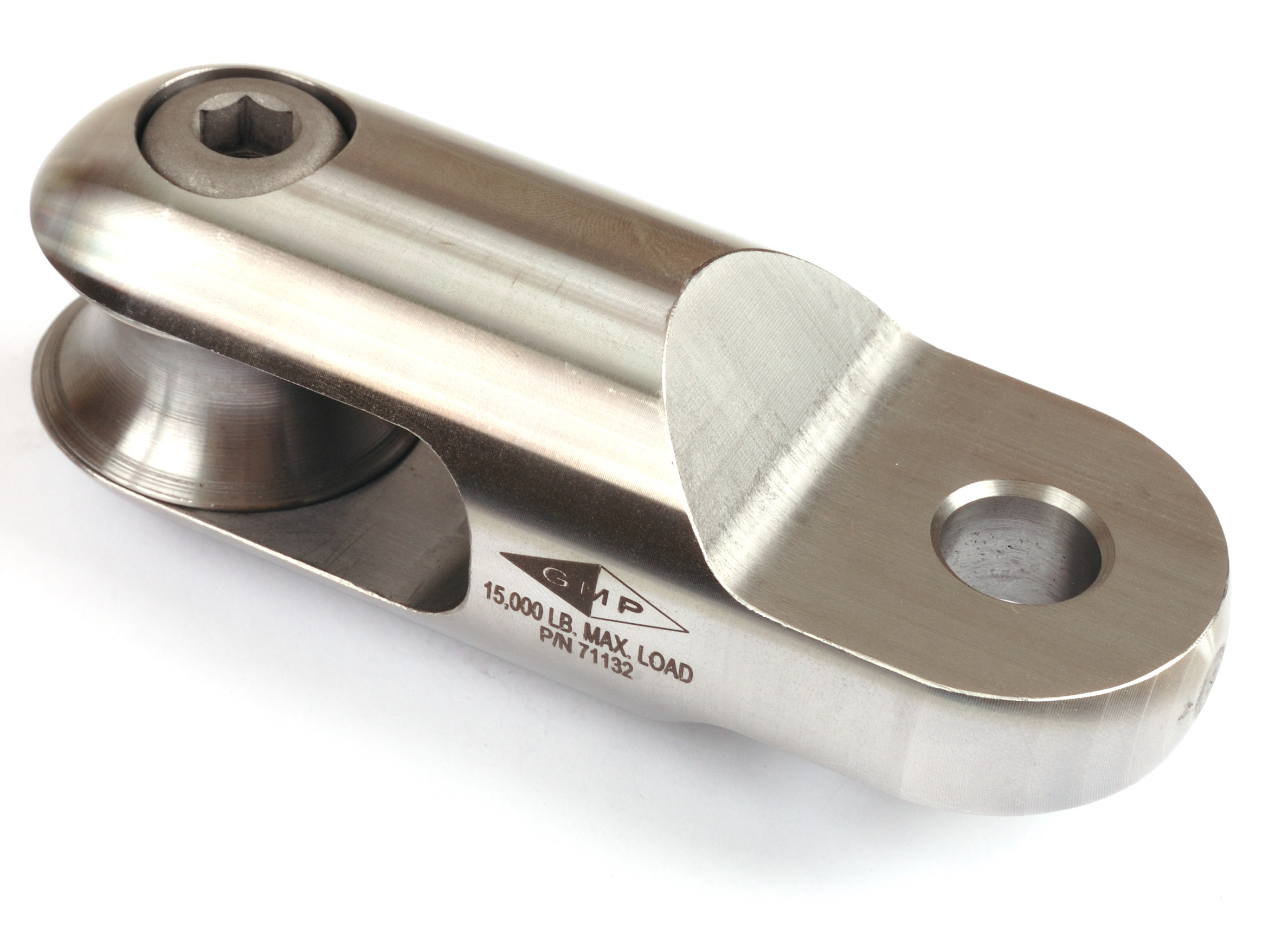

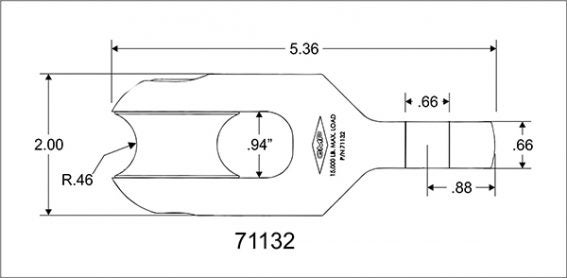

7113221/32 in. Rope to Swivel Connector
Rated @ 15,000 lbs. (6804kg) max load
Can be used with GMP swivel P/N 70139		Weight 2.3 lbs. (1.0kg)
