INNERDUCT PULLING EYES

60510

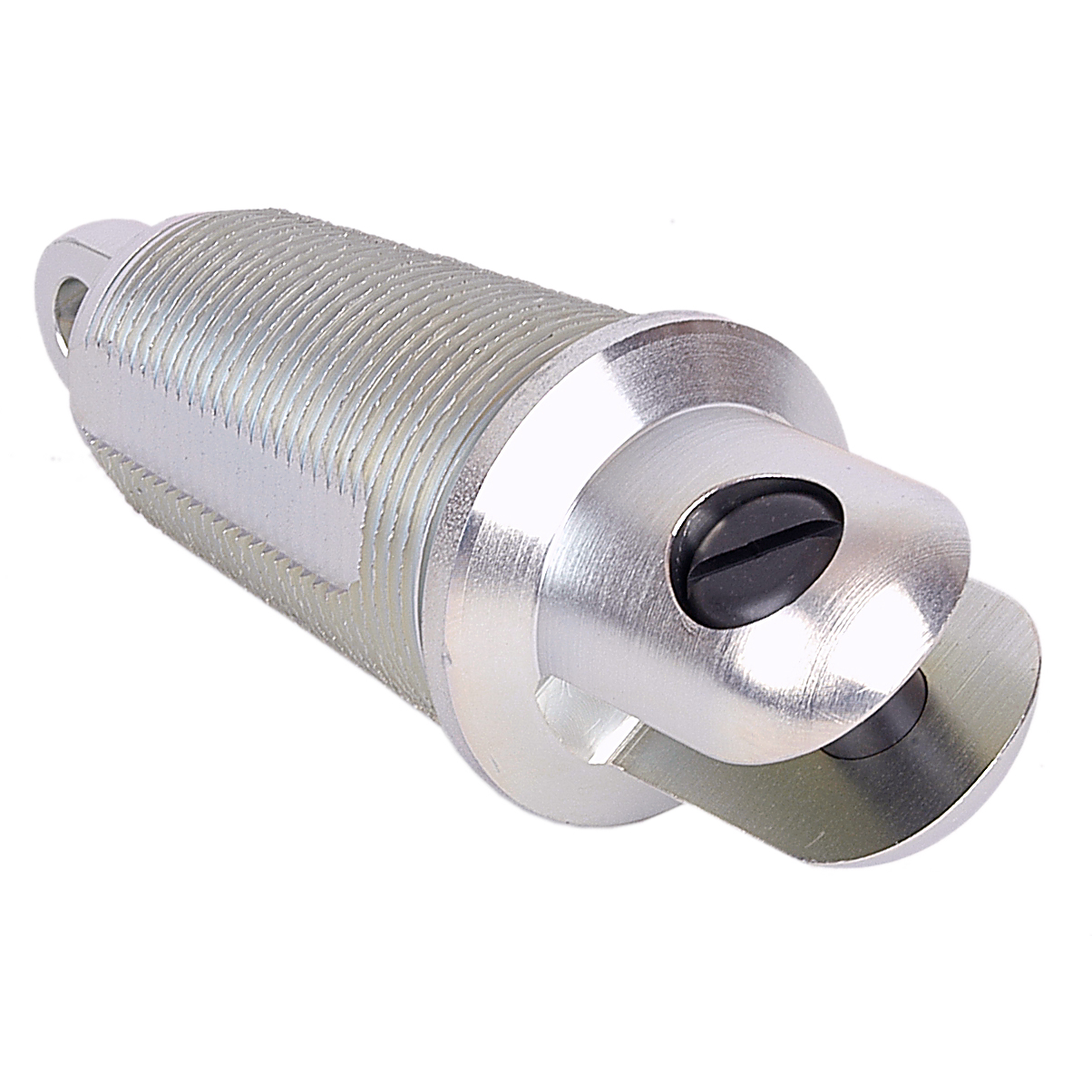

These rugged zinc-plated steel pulling eyes allow innerduct placement to become a faster, safer operation.

Easy insertion by rotating the pulling eye into the innerduct allows the threads to make the connection
A convenient hole in the threaded end of the pulling eye body is used to tie off the innerduct pulling line or tape keeping it from being lost during the pulling operation
Our Swiveling Pulling Eyes eliminate the need to use a separate swivel between the winch line and innerduct

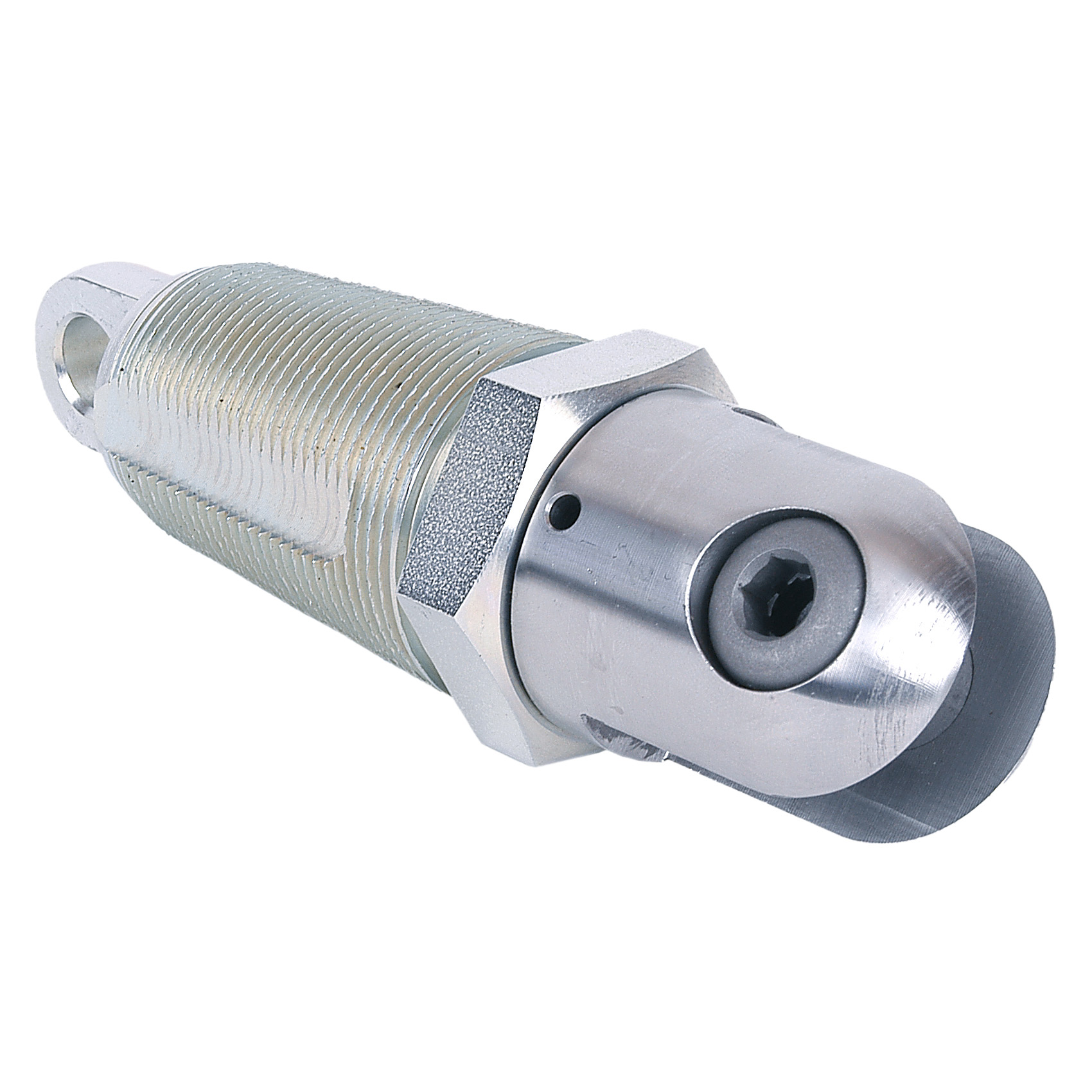

The hex portion of the Swiveling Innerduct Pulling Eye allows use of a wrench to make the final turns when inserting into innerduct

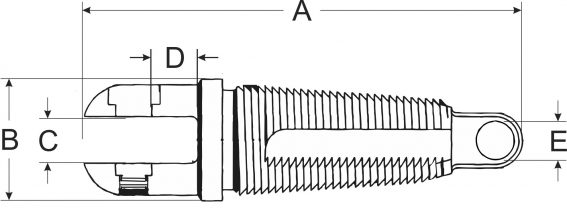

P/N	A	B	C	D	E
60510	5 1/8 .in	1 3/8 .in	9/16 .in	9/16 .in	3/8 .in
60512	5 1/8 .in	1 3/8 .in	9/16 .in	9/16 .in	3/8 .in
60515	5 3/4 .in	2 .in	11/16 .in	11/16 .in	1/2 .in
60520	5 3/4 .in	2 7/16 .in	11/16 .in	11/16 .in	1/2 .in
61510	5 9/16 .in	1 1/4 hex .in	9/16 .in	9/16 .in	3/8 .in
61512	5 19/32 .in	1 5/8 hex .in	9/16 .in	9/16 .in	3/8 .in
61515	6 9/32 .in	1 3/4 hex .in	11/16 .in	11/16 .in	1/2 .in
61520	6 13/32 .in	1 3/4 hex .in	11/16 .in	11/16 .in	1/2 .in
