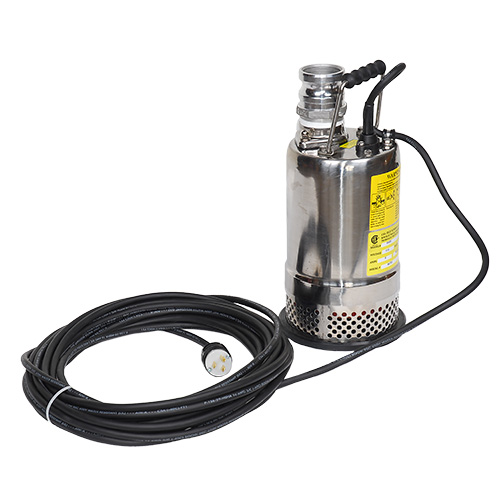

Submersible Dewatering Pumps 115V Ac 1/2 and 1 Hp
Our pumps are ideal for dewatering construction sites or for all-around use in industrial plants and utilities. They have a Slim-line design, enabling the operator to easily fit them into casings as small as 8 in. (203mm) in diameter. Top discharge also provides maximum motor cooling for continuous-duty applications.
- Built-in controls: Thermal overload protectors.
- Motor: Class F. Built-in high-temperature switch protects the motor form overheating and shorting if the pump runs dry.
- Mechanical face seals: 3 seals: Lip seal, (2) mechanical seals; silicon carbide and carbon/ceramic.
- Mechanical Seal-Upper: Carbon/ceramic
- Mechanical Seal-Lower: SiC/SiC
. | Submersible Pump .5 HP2 | Submersible Pump 1 HP |
Part Number | 87253 | 87252 |
Rated Output | 0.5 Hp (373 W) | 1 Hp (746 W) |
Volts/Phase | 115VAC, 1 phase | 115VAC, 1 phase |
Rated Amps | 6 amps | 14 amps |
Rated Amps | 50 ft. (15m) | 50 ft. (15m) |
GPM (lpm) | 66 GPM (250lpm) | 89 GPM (337lpm) |
Maximum Head | 35 ft. (10.66m) | 49 ft. (14.9m) |
Rotation Speed | 3450 rpm | 3450 rpm |
Weight | 33 lbs. (15kg) | 60 lbs. (27kg) |
Height | 15 in. (381mm) | 19.5 in. (495mm) |
Width | 7.1 in. (180mm) | 7.3 in. (185mm) |
Discharge Connection | 2 in. | 2 in. |
| Pump Material | |
Outer casing | 304 Stainless steel | 304 Stainless steel |
Stator housing | 304 Stainless steel | 304 Stainless steel |
Shaft | 304 Stainless steel | 304 Stainless steel |
Impeller | Cast Iron | Cast Iron |
Pump Volute | Cast Iron | Cast Iron |

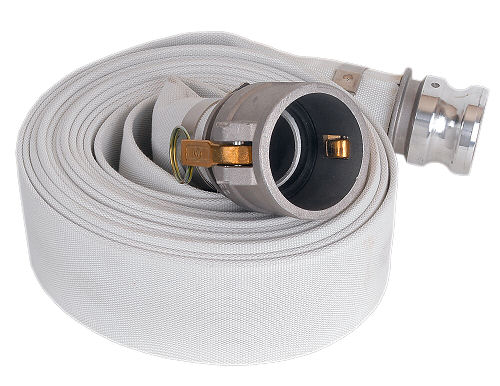

DISCHARGE HOSES
2 in. x 25 ft. (50mm x 8m) hose for discharging liquid extracted by submersible pumps. 2 in. diameter female fitting connects to our Submersible Pump models 87253 and 87252.
P/N | Description | Weight |
87250 | Discharge Hose w/male and female fittings. | 9 lbs (4kg.) |
Male fitting at discharge end accepts extra lengths of hose as needed | ||
87251 | Discharge Hose with 1 fitting and open end. | 8.5 lbs (4kg.) |
No fitting on opposite end |
