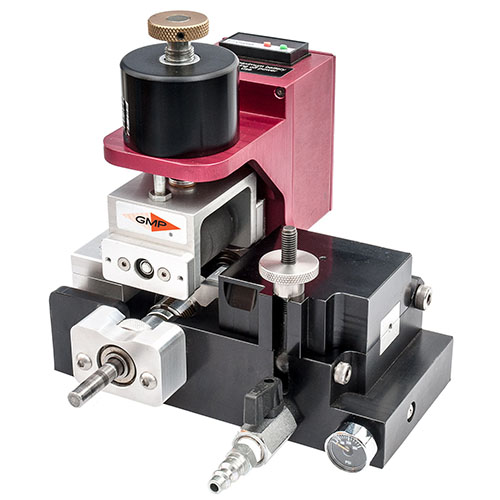

Gentle Air Fiber Blowing Machine
The Gentle Air uses compressed air to install the Fiber. Coupled with the driven roller is a precision clutch that can dial in custom torque settings from zero to infinity.
The rollers, Powered by most types of cordless drills (not included), control the blown Fiber as it is propelled into the micro duct. An electronic monitoring system provides read-outs of speed and distance. The design of the Gentle Air provides for quick and easy component changes for different cable or Duct sizes. Its compact size and portable maneuverability make the Gentle Air ideally suited for external or in-building use. GMP recommends using a variable speed drill (brush-less type drill manufactured by an industrial-grade manufacturer) with an adjustable torque setting Powered by an 18-20 volt battery.
- Installs cable diameters of 0.039″ to 0.118″ (1.0 to 3.0mm).
- Accommodates microDuct sizes of 4 to 7mm (OD).
- Uses a fully adjustable precision clutch for torque control.
- Uses most variable speed drills as a power source.
- Lightweight, durable construction with precision machined parts.
- Single person operation.
- Digital cable speed and length monitoring.
- Integral air Valve and Pressure gauge.
WHAT'S INCLUDED WITH YOUR GENTLE AIR |
Gentle Air Cable Blowing Machine |
(2) 9V Lithium Batteries |
Tube Collet and clamp assembly for (1) tube size of your choice |
Cable seal collet assembly for (1) cable size of your choice |
Toolkit |
Travel bag |
Manual |
WHAT'S INCLUDED WITH YOUR GENTLE AIR PLUS |
Gentle Air Cable Blowing Machine |
(2) 9V Lithium Batteries |
Tube Collet and clamp assembly for (3) tube sizes of your choice |
Cable seal collet assembly for (3) cable sizes of your choice |
Toolkit |
Travel bag |
Manual |
P/N | Description | Weight |
89916 | Gentle Air Blown Fiber Machine | 12 lbs (5.4kgs) |
89901 | Gentle Air Plus Blown Fiber Machine | 12 lbs (5.4kgs) |
| SPECIFICATIONS |
|---|
| Cable Diameter: 0.039″ to 0.118″ (1.0 to 3.0mm) |
| Tube Size (Outside Dia): (OD) 0.158″ to 0.275″ (4 to 7mm) |
| Cable Speed (Adjustable): 0-300 ft/min (0-90m/min) |
| Max Air Pressure: 220 psi (15 Bar) |
| Power Requirement: Variable Speed Drill |
| Width: 8.1 in. (206mm) |
| Length: 9.7 in. (246mm) |
| Height: 8.5 in. (216mm) |
| Weight: Approx. (5.4Kgs Approx.) |
GENTLE AIR ACCESSORIES
TRIPOD MOUNT P/N 89945
| BOTTLED NITROGEN KIT P/N 89742
| WHISPER AIR SUPPLY HOSE P/N 89945
|
DRILL STAND P/N 89948
| MOUNTING PLATE P/N 89947
| COMPRESSOR P/N 89011
|
