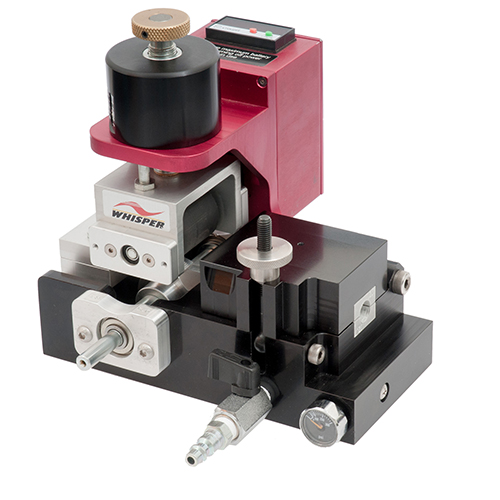

Whisper Micro Cable Blowing Machine
Now you can depend on the same GMP quality as our larger machines in a new smaller package… The Whisper installs microcable and its versatility saves you money. The Whisper uses compressed air to install the cable.
The rollers, powered by most types of cordless drills (not included), control the microfiber as it is propelled into the microduct. An electronic monitoring system provides read-outs of speed and distance. The design of the Whisper provides for quick and easy component changes for different cable or duct sizes. Its compact size and portable maneuverability make the Whisper ideally suited for external or in-building use. The Whisper uses compressed air to install the cable. The rollers, powered by most types of cordless drills (not included), control the microfiber as it is propelled into the microduct. We suggest using a variable speed drill with an adjustable torque setting powered by an 18-20 volt battery. We further suggest a brush-less type drill manufactured by an industrial-grade manufacturer. An electronic monitoring system provides read-outs of speed and distance.
- Installs cable diameters of 3 to 8.5mm.
- Accommodates microduct sizes of 4 to 18mm.
- Uses most any variable speed drill as a power source.
- Lightweight, durable construction with precision machined parts.
- Single person operation.
- Digital cable speed and length monitoring.
- Integral air Valve and Pressure gauge.
- Low maintenance.
WHAT'S INCLUDED WITH YOUR WHISPER |
Whisper Cable Blowing Machine |
(2) 9V Lithium Batteries |
Tube Collet and clamp assembly for (1) tube size of your choice |
Cable seal collet assembly for (1) cable size of your choice |
Toolkit |
Travel bag |
Manual |
WHAT'S INCLUDED WITH YOUR WHISPER PLUS |
Whisper Cable Blowing Machine |
(2) 9V Lithium Batteries |
Tube Collet and clamp assembly for (3) of the most popular tube sizes |
Cable seal collet assembly for (3) of the most popular seal collet assemblies |
Toolkit |
Travel bag |
Manual |
WHAT'S INCLUDED WITH YOUR WHISPER MAX |
Whisper Cable Blowing Machine |
(2) 9V Lithium Batteries |
Tube Collet and clamp assembly for all available tube sizes |
Cable seal collet assembly for all available seal collet assemblies |
Toolkit |
Travel bag |
Manual |
P/N | Description | Weight |
89910 | Whisper Micro Cable Blowing Machine | 12 lbs (5.4kgs) |
89897 | Whisper Micro Cable Blowing Machine PLUS | 12 lbs (5.4kgs) |
90064 | Whisper Micro Cable Blowing Machine MAX | 12 lbs (5.4kgs) |

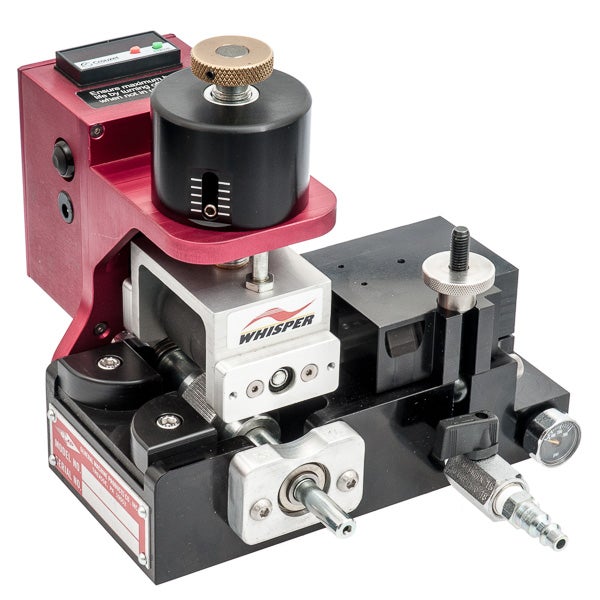

89915 | Whisper Micro Cable Blowing Machine for Flat Drop Fiber Optic Cable | 12.5 lbs (5.6kgs) |
89895 | Whisper Micro Cable Blowing Machine PLUS for Flat Drop Fiber Optic Cable | 12.5 lbs (5.6kgs) |
32018 | 3/4 X 50 ft Air Hose with 2-lug twist claw fittings on each end |
| Cable Diameter: 3 to 8.5mm and various manufacturers flat drop |
| Tube Size (Outside Dia): 4 to 18mm |
| Cable Speed (Adjustable): 0-300 ft/min (0-90m/min) |
| Max Air Pressure: 220 psi (15 Bar) |
| Power Requirement: Variable Speed Drill |
| Width: 8.1 in. (206mm) |
| Length: 9.7 in. (246mm) |
| Height: 8.5 in. (216mm) |
| Weight: Approx. 12 lbs (5.4Kgs Approx.) |
WHISPER ACCESSORIES
TRIPOD MOUNT P/N 89945
| BOTTLED NITROGEN KIT P/N 89742
| WHISPER AIR SUPPLY HOSE P/N 89945
|
DRILL STAND P/N 89948
| MOUNTING PLATE P/N 89947
| COMPRESSOR P/N 89011
|
