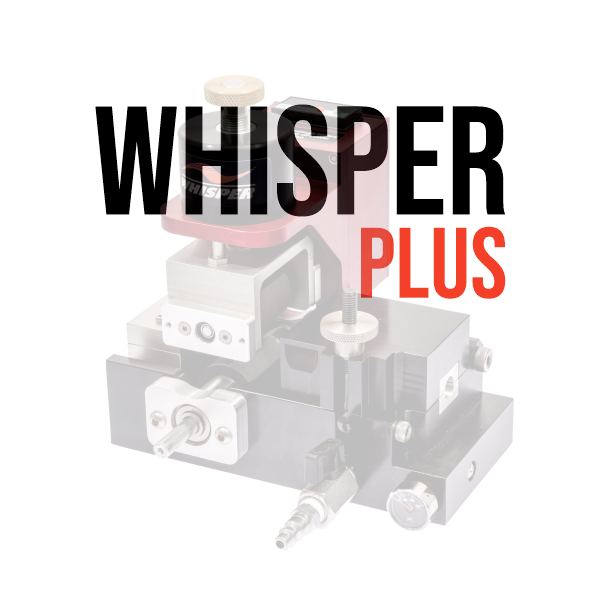

Whisper PLUS Micro Cable Blowing Machine
Now you can depend on the same GMP quality as our larger machines in a new smaller package… The Whisper installs microcable and its versatility saves you money. The Whisper uses compressed air to install the cable.
With the Whisper Plus, you get 3 complete fiber/tube blowing sets for the most common sizes.
The rollers, powered by most types of cordless drills (not included), control the microfiber as it is propelled into the microduct. An electronic monitoring system provides read-outs of speed and distance. The design of the Whisper provides for quick and easy component changes for different cable or duct sizes. Its compact size and portable maneuverability make the Whisper ideally suited for external or in-building use. The Whisper uses compressed air to install the cable. The rollers, powered by most types of cordless drills (not included), control the microfiber as it is propelled into the microduct. We suggest using a variable speed drill with an adjustable torque setting powered by an 18-20 volt battery. We further suggest a brush-less type drill manufactured by an industrial-grade manufacturer. An electronic monitoring system provides read-outs of speed and distance.
- Installs cable diameters of 3 to 8.5mm.
- Accommodates microduct sizes of 4 to 18mm.
- Uses most any variable speed drill as a Power source.
- Lightweight, durable construction with precision machined parts.
- Single person operation.
- Digital cable speed and length monitoring.
- Integral air Valve and Pressure gauge.
- Low maintenance.
| SPECIFICATIONS |
|---|
| Cable Diameter: 3 to 8.5mm and various manufacturers flat drop |
| Tube Size (Outside Dia): 4 to 18mm |
| Cable Speed (Adjustable): 0-300 ft/min (0-90m/min) |
| Max Air Pressure: 220 psi (15 Bar) |
| Power Requirement: Variable Speed Drill |
| Width: 8.1 in. (206mm) |
| Length: 9.7 in. (246mm) |
| Height: 8.5 in. (216mm) |
| Weight: Approx. 12 lbs (5.4Kgs Approx.) |
| WHAT'S INCLUDED WITH YOUR WHISPER PLUS |
|---|
|
