CABLE PUSHER

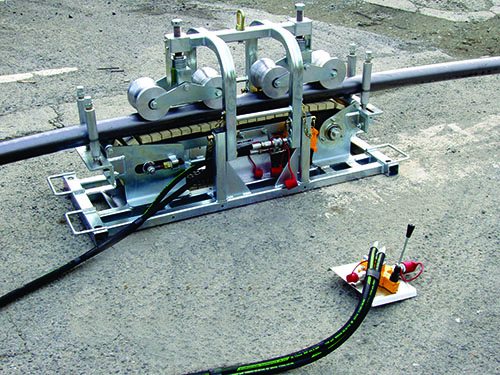

Cable Pusher 89760

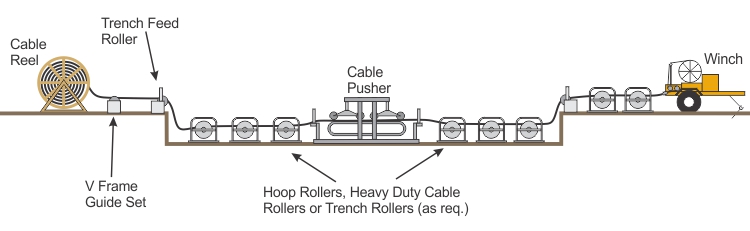

Cable Pusher 89760 Cable Pusher Setup P/N 89765 Trench Roller P/N 89766 Heavy Duty Cable Roller P/N 89767 Triple Corner Rollers P/N 89762 “V” Frame Guide Set P/N 89763 Trench Feed Roller P/N 89768 Lead Roller Valve Control Module Tornado power pack

CABLE PUSHER

89760

Effortless Cable Laying with the GMP Cable Pusher!

Streamline your cable installation process with the GMP Cable Pusher, designed to make laying large electrical cables easier and more efficient. Perfect for open trench work, this innovative tool assists winches by reducing pulling tension and “pushing” cables at a midpoint.

Key Features:

  • Versatile Cable Compatibility: Works with cable sizes ranging from 1.25" to 6" (32–152mm) in diameter.
  • Hydraulic Power: Powered by a Portable Hydraulic Power Pack (sold separately) for reliable performance.
  • Precision Control: Single lever, bi-directional control with variable speed adjustment for maximum efficiency.
  • Unmatched Strength: Delivers a maximum pushing force of 1540 lbs. (700kg) at speeds up to 33 ft. (10m) per minute.
  • Customizable Performance: Adjustable pushing force via a relief valve and a profiled belt with upper rollers for optimal grip.
  • Accessory Rollers: A wide selection of rollers available to guide cables with ease.

Whether you're tackling heavy-duty projects or looking to improve cable installation efficiency, the GMP Cable Pusher is your ultimate solution. Get the job done faster, safer, and smarter!

Note: Control Valve Modules and Power Pack are offered separately.

Part NumberDescriptionWeight
89760Cable Pusher for 1.25 - 6" (30-150mm) Power Cable441 lbs. (200 kgs)

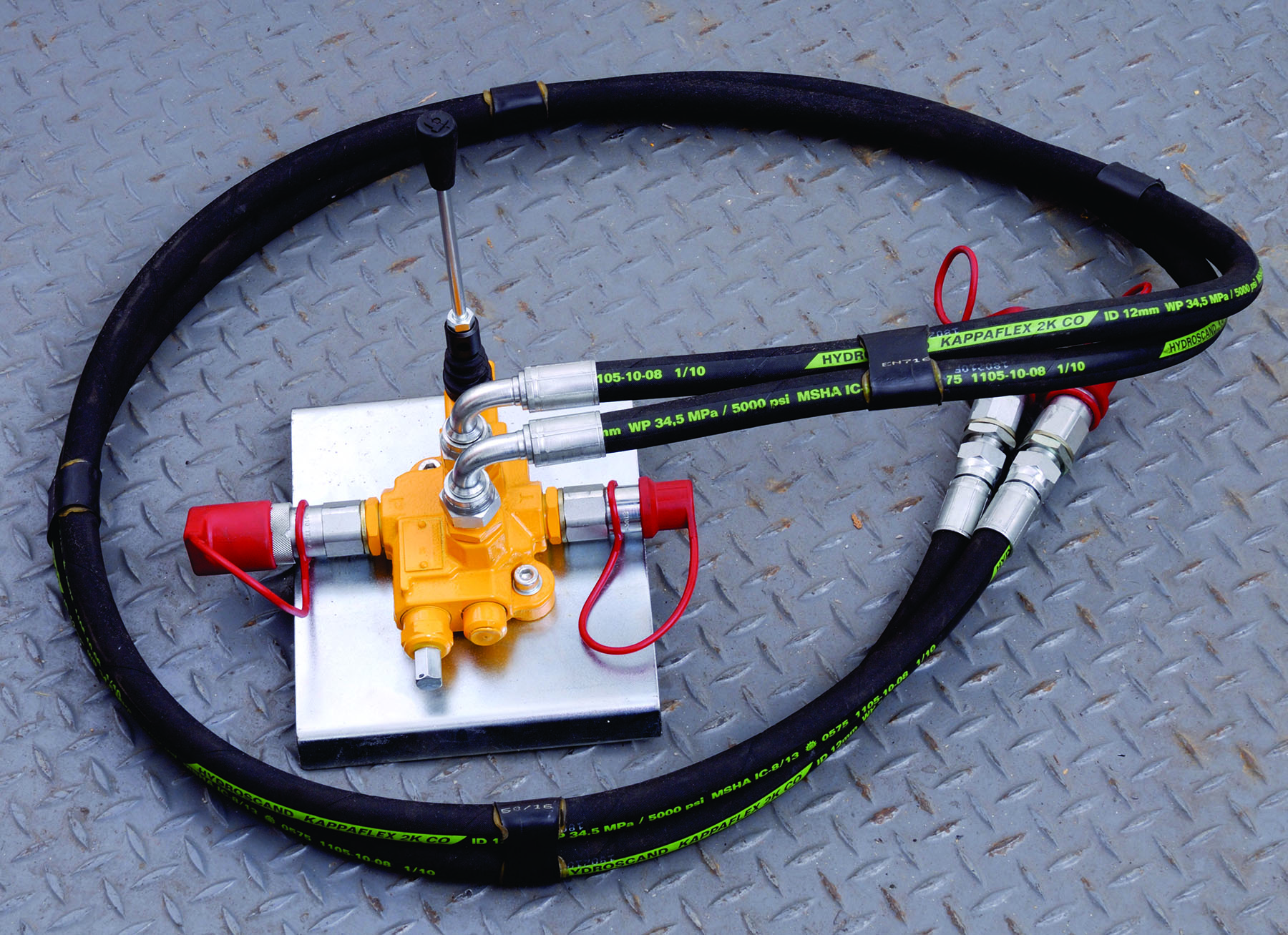

89761    Valve Control Module with Hoses    32 lbs. (14.5kg)
34519    Foot Control Valve and Hoses (single direction only)    75 lbs. (35kg)
32799    Hydraulic Power Pack    145 lbs. (66kg)
89765Trench Roller (Aluminum Roller)   12.5 lbs. (5.7kg)
89766   Heavy Duty Cable Roller (Steel Roller)8.8 lbs. (4kg)
89767 Triple Corner Rollers26.5 lbs. (12kg)

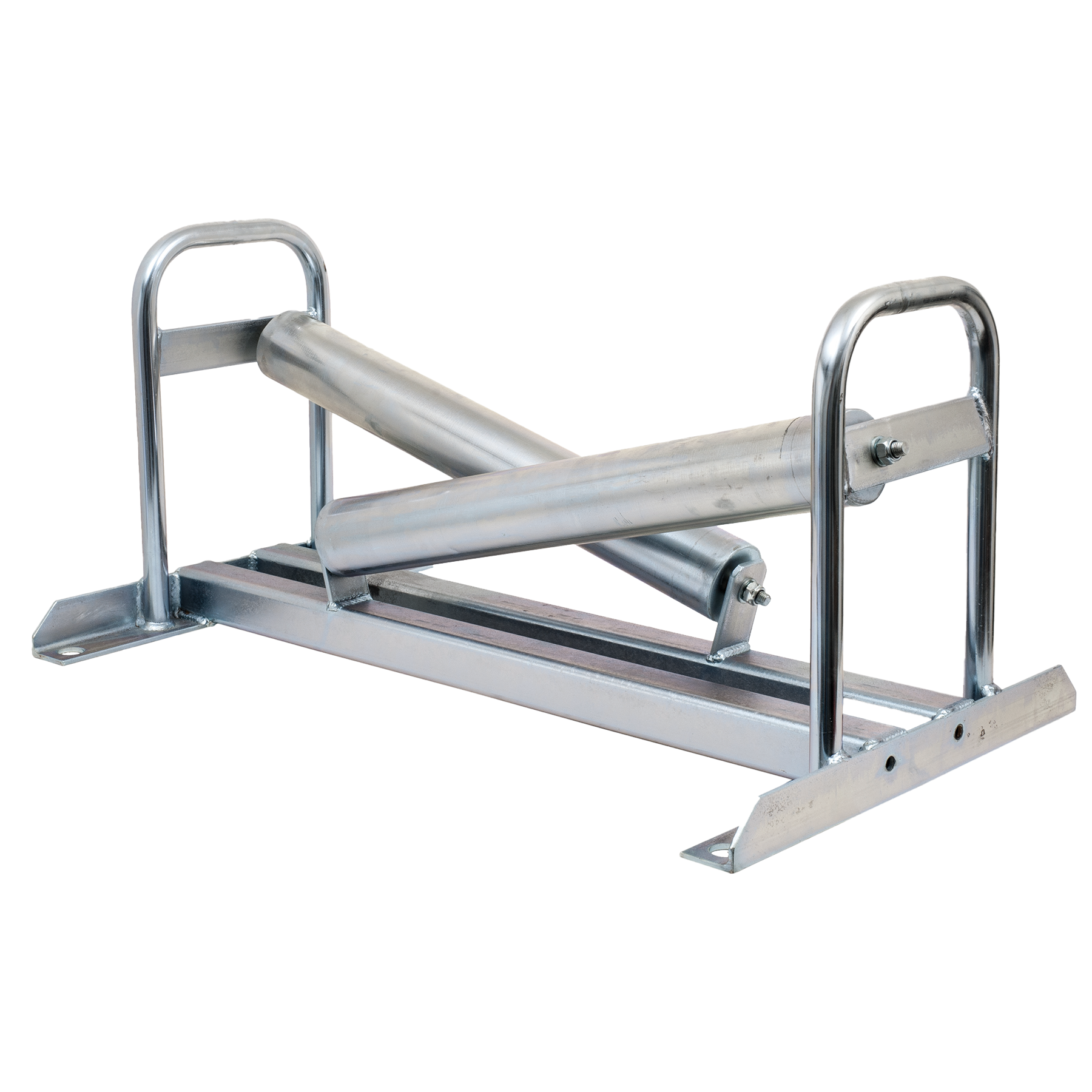

89762“V” Frame Guide Set 43 lbs. (19.5kg)

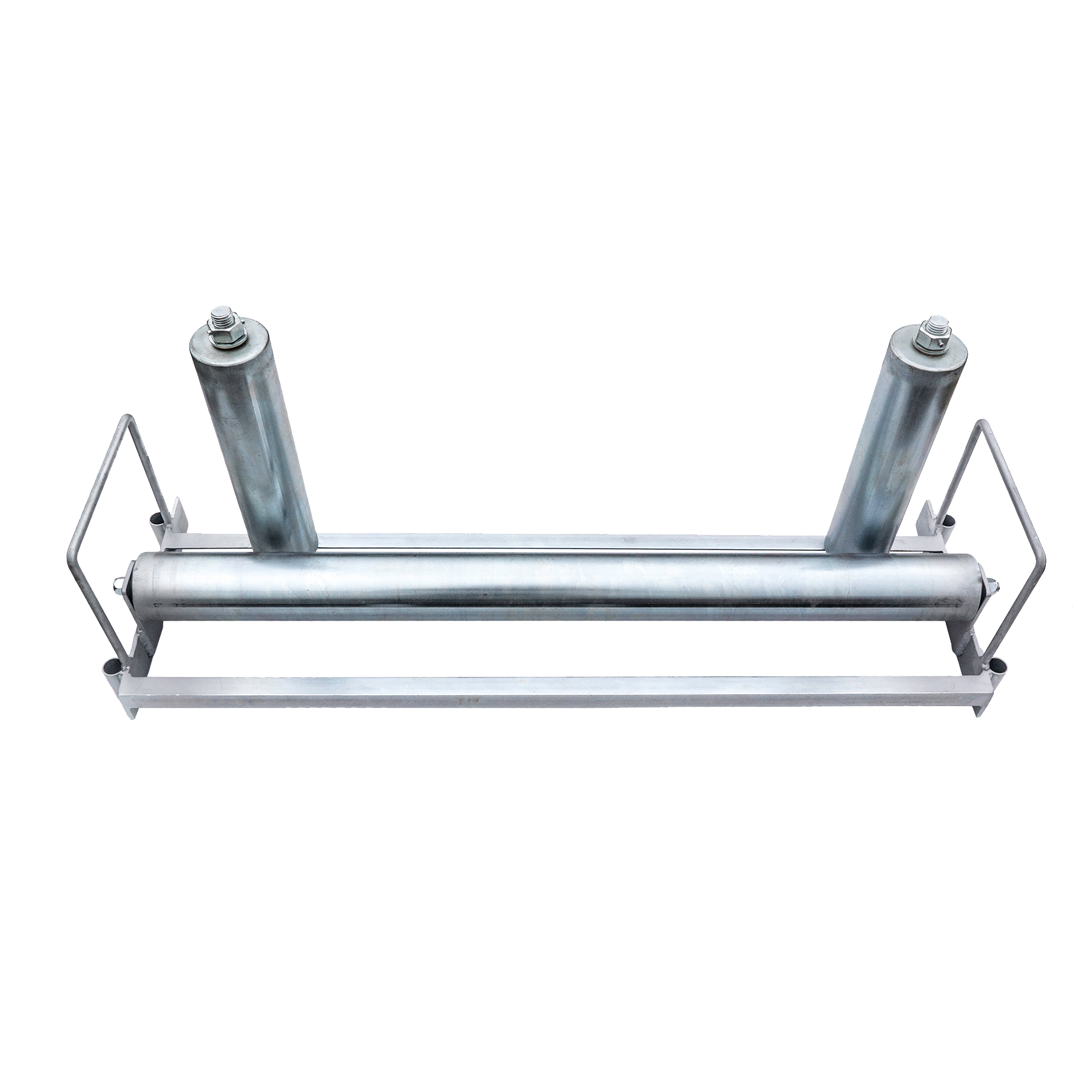

89763Trench Feed Roller35 lbs. (15.9kg)

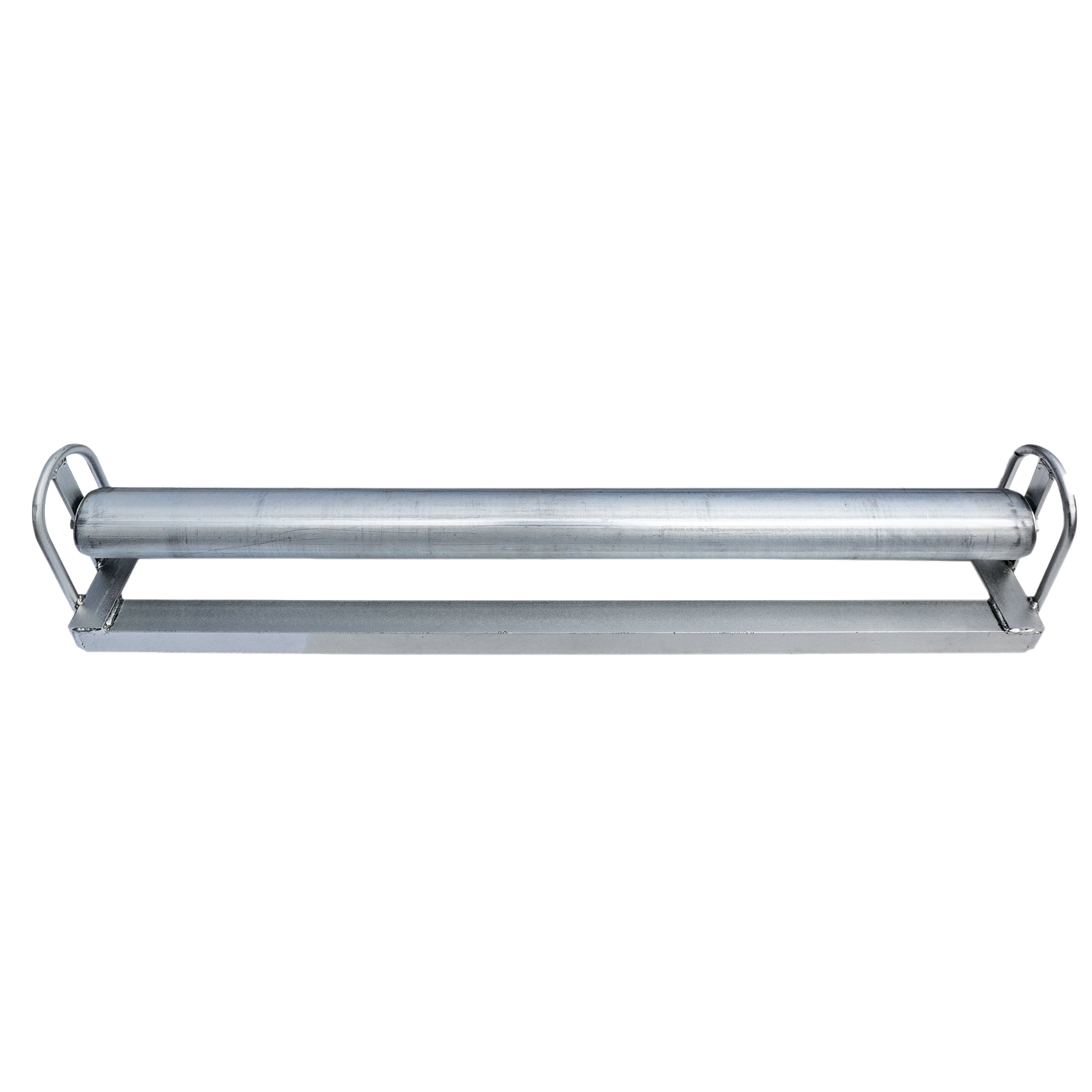

89768Lead Roller 40 lbs. (18.1kg)

Cable Size: 1.25 -6" (32-152mm) O.D.
Dimensions: 55" W x 20" L x 31" H (500mm x 1390mm x 770mm)
Max Push: 1543 lbs. (700kg)
Max Speed: 33'/min (10m/min)
Controls: Single Lever for Push/Pull Operations
Drive System: Hydraulic
Min Requirement: 4.75 gpm/870 psi (18 Ltr/min at 60 bar)
Weight: 441 lbs. (200kg)
