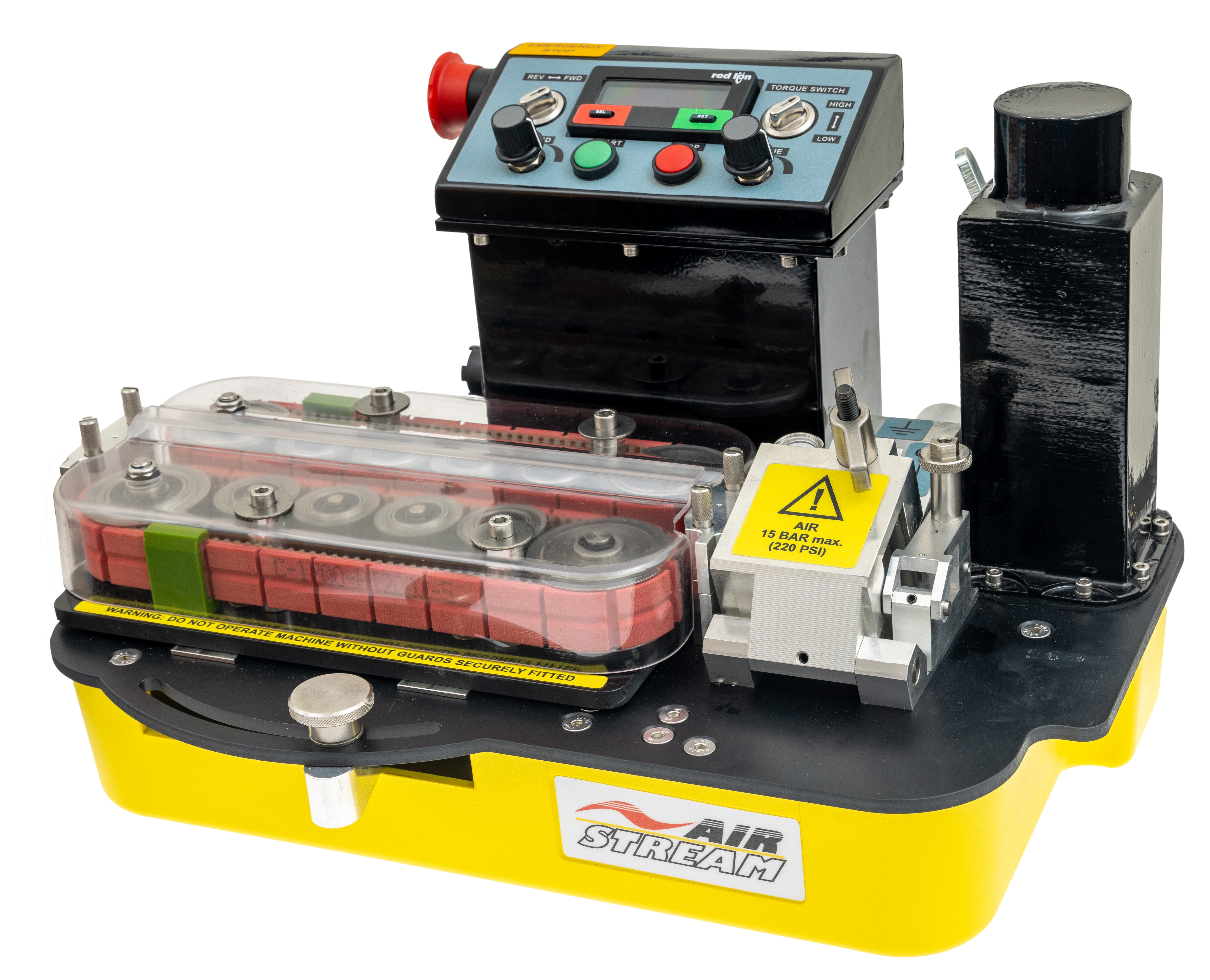

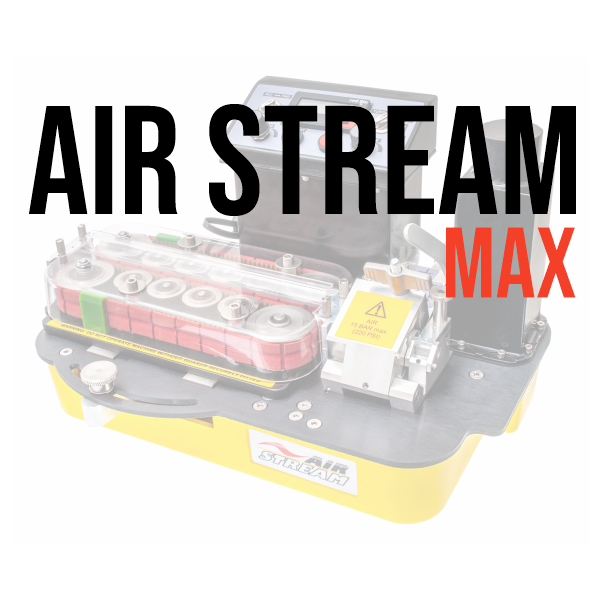

Airstream MAX Cable Blowing Machine
89327
The Air Stream has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed.
With the AirStream MAX, you get All available fiber/tube blowing sets
Single-person operation with safe, easy-to-operate ergonomic controls combines low maintenance and high reliability to form the machine’s key features. The Air Stream is adjustable to suit a wide range of cable diameters 2.5 – 11mm.
- Automatic Cable centralizing.
- Synchronous high grip profiled compliant drive belts.
- Tabletop design with ergonomic controls for ease of operation.
- Forward and reverse Variable torque and speed controls.
- Digital servo motor drive system.
- Single person operation.
- Digital cable speed and length monitoring.
- Flat Drop compatable.
| SPECIFICATIONS |
|---|
| Cable Diameter: 2.5 to 11mm |
| Tube Size (Outside Dia): 5 to 18mm |
| Cable Speed (Adjustable): 0-260 ft/min (0-80m/min) |
| Air Pressure: 145-215 psi (10-15 Bar) |
| Power Requirement: 110/220 Volt AC |
| Width: 11.8 in. (300mm) |
| Length: 18 in. (460mm) |
| Height: 10.6 in. (270mm) |
| WHAT'S INCLUDED WITH YOUR AIRSTREAM MAX |
|---|
|
Youtube Videos
| ORDERING INFORMATION | ||
|---|---|---|
| P/N | Description | Weight |
| 89300 | AirStream Cable Blowing Machine | Weight: 31 lbs (14kgs) |
| 89321 | AirStream Cable Blowing Machine PLUS | Weight: 31 lbs (14kgs) |
| 89327 | AirStream Cable Blowing Machine MAX | Weight: 31 lbs (14kgs) |
