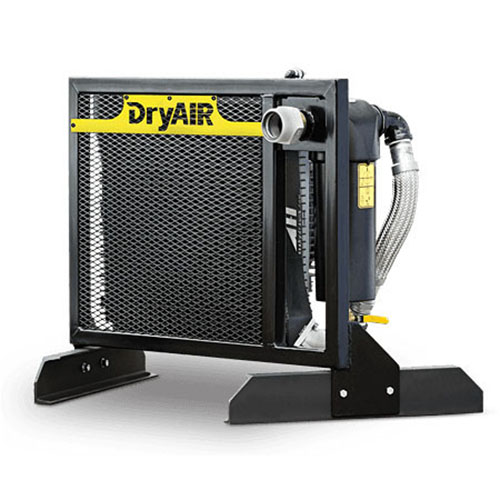

400CFM Compressor Aftercooler
The 400CFM Compressor Aftercooler has been Designed to cool compressed air and remove water Droplets prior to entering a GMP Cable Blowing Machine.
- Features a Heavy-Duty moisture separator and coalescing filter to trap moisture and condensed oil. Manual drain Valves provide removal of captured fluids.
- Completely self-contained and packaged in a construction skid with a lifting bail and expanded metal heat exchanger Guard.
- Boss outlet fitting (Boss 28) and inlet fittings (1-1/2 in. Pipe) are standard.
- DC fan motor is run from the compressor battery and automatically starts when the system is pressurized.
- 13-foot Power cord with alligator clips to connect to the compressor starting battery.
- Optional 1-micron coalescing filter available.
- Adaptable stand-alone or tongue-Mount design.
- Compact installation does not interfere with vehicle tailgates, etc.
- Cools air to within 20° of ambient temperature to optimize moisture removal
- Available in either 12 or 24 volt versions
P/N 89065 400 CFM Compressor Aftercooler with 24V Fan Weight: 170 lbs. (77kg)
P/N 89073 400 CFM Compressor Aftercooler with 12V Fan Weight: 170 lbs. (77kg)
PLEASE NOTE, THAT THESE AFTERCOOLERS DO NOT COME WITH THE FOOT KIT AND THE FOOT KIT NEEDS TO BE PURCHASED SEPERATLY
P/N 74162 Foot kit for 400 CFM cooler
Length: | 24 in. (610 mm) |
Width: | 44 in. (1118 mm) |
Height: | 30 in. (762 mm) |
Weight: | 170 lbs. (77 kg) |
Fan Power Requirments | 9 A, 24 VDC or 18 A, 12 VDC |
Max Working Pressure | 200 psi (13.9 bar) |
Max Air Compressor Flow Rate | 400 cfm (11 M³/Min) |
Air Hose Connections | Output: Boss 28 |
Input: 1-1/2 in. Pipe |
