TRAILER-MOUNTED CABLE FLEETER

Trailer Mounted Cable Feeder
Trailer Mounted Cable Feeder

TRAILER-MOUNTED CABLE FLEETER

89012
The Trailer Mounted Cable Fleeter replaces the manual method of “figure eighting” cable, and provides protection and security for the cable. Following installation of the cable in the first leg of the duct route the balance of the cable is removed from the drum and fed into the Fleeter, thereby releasing the cable end ready for blowing into the second leg.
  • The Fleeter provides a smooth and simple system while ensuring cable protection from pedestrians or vehicles and prevents contamination from mud, soil or dust
  • The Fleeter is designed to work in conjunction with the Cable Blowing Machine, which provides the cable feed in and out of the Fleeter
  • The unit accepts 10,000 ft (3,000 meters) of 1/2 in. (13mm) cable, allowing drum lengths of 20,000 ft. (6,000 meters) to be utilized

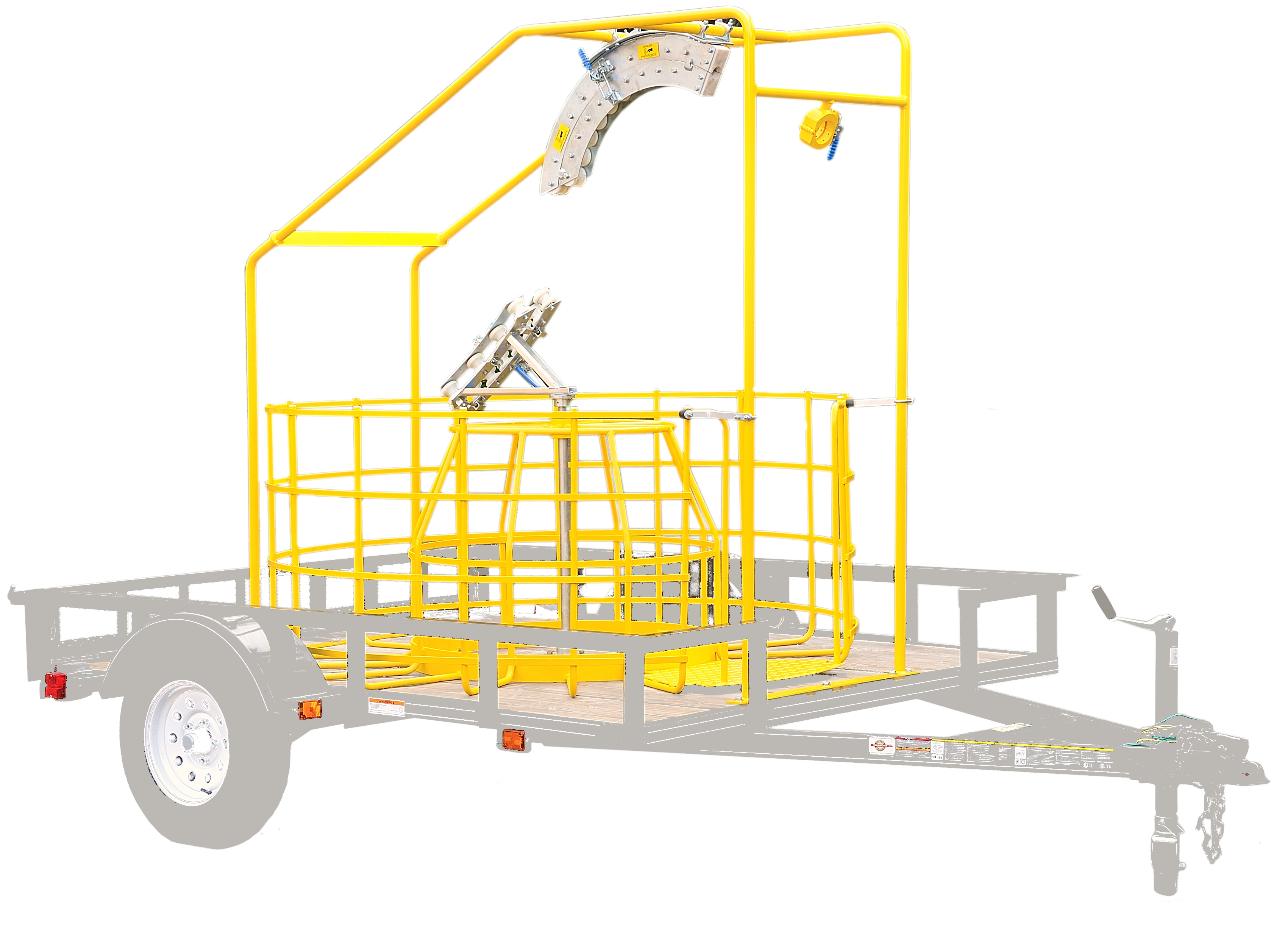

  • The Fleeter consists a cable storage cassette, rotating cable guide quadrant and duct clamp assembly (trailer not included)

P/N 89012   Trailer Mounted Fleeter   weight: 400 lbs. (181kg)

Capacity: 10,000 ft.(3000 m) 1/2 in. (13 mm) Fiber Optic Cable
Basket Diameter: 69 in. (1750mm)
Height: 75 in. (1900mm)
Width: 83 in. (2110mm)
Weight: 400 lbs (181kg)

Note: Please have innerduct dimensions available when ordering to select correct duct clamp. 3/4-1 1/4 in. duct clamps available.
