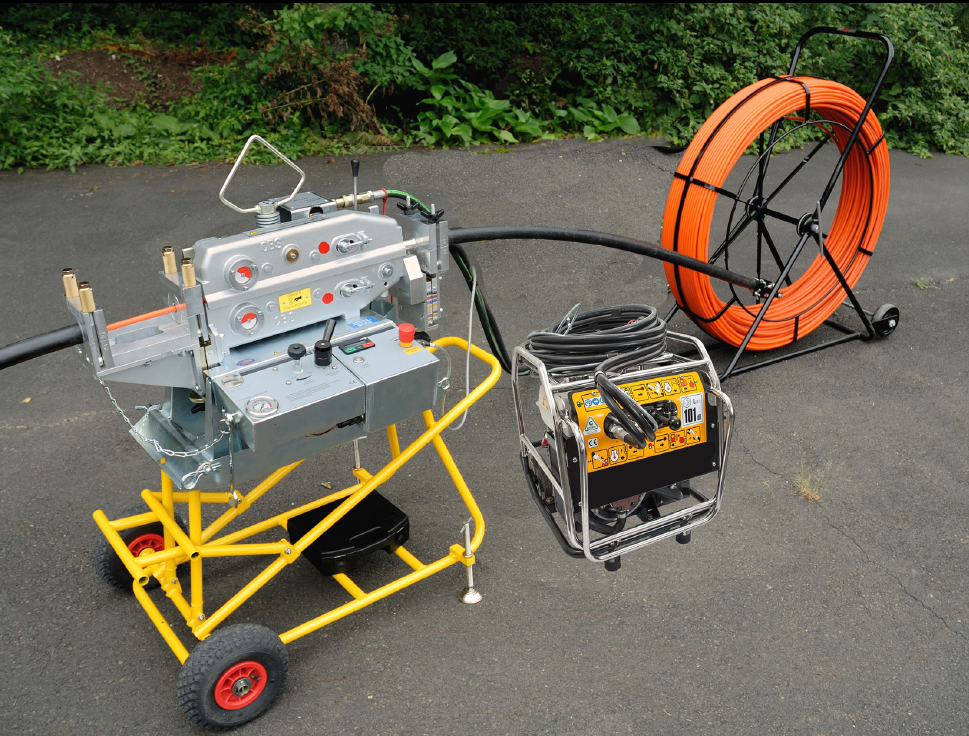

Portable Powered Duct Rod Pusher
89004

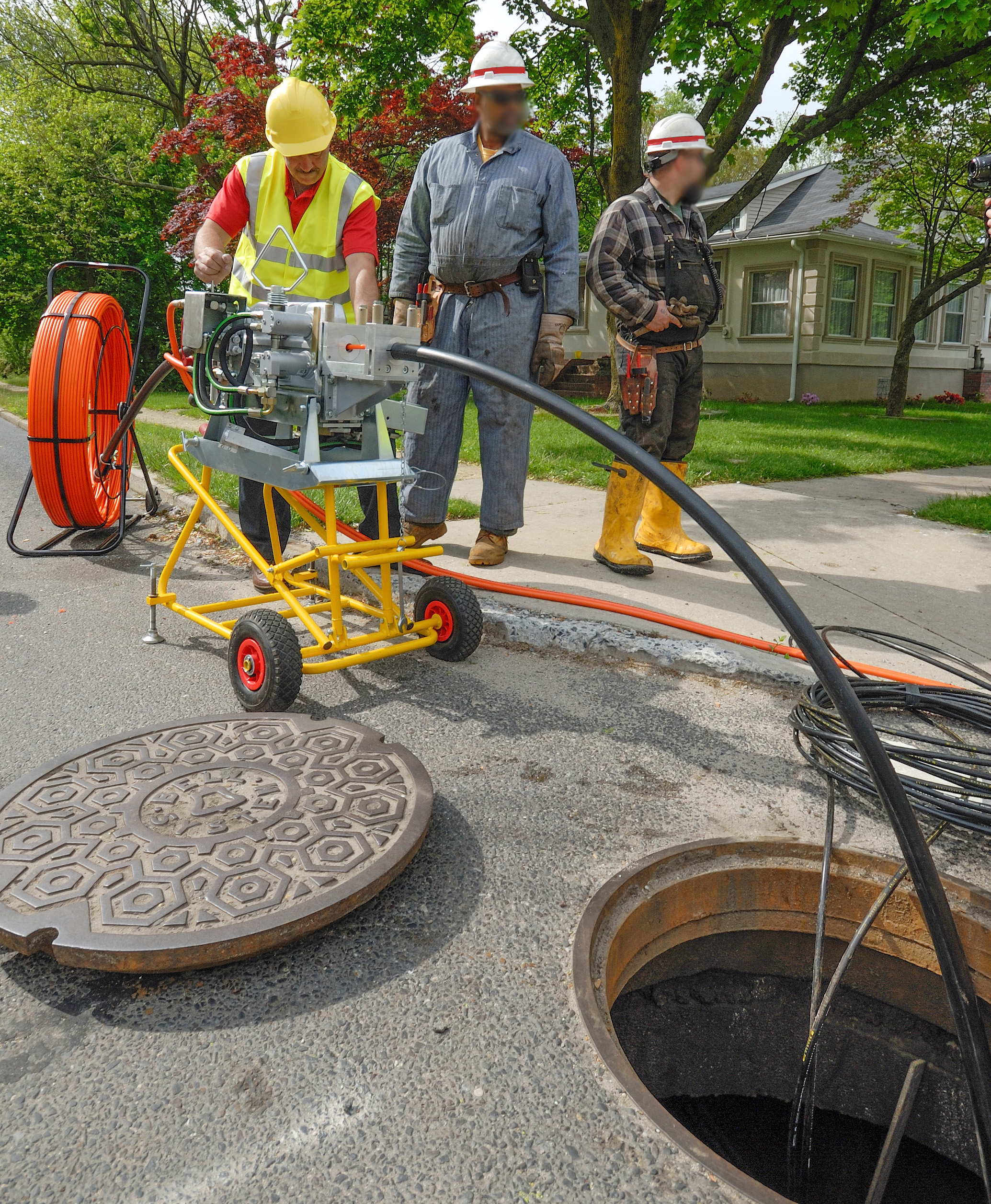

With GMP’s Portable Powered Duct Rod Pusher and a 1/2 inch GMP Duct Rodder, the job of placing pulling lines or fiber cables just got that much easier with less personnel in old or occupied conduits.
- Designed to work with a GMP 1/2 in. Continuous Duct Rodder.
- Operations and Maintenance Manual Power Pack Manual
- Hydraulically powers GMP 1/2 in. Duct Rodders in to and out of conduits.
- Pushes and pulls with forces up to 300 lbs.
- Rod speeds up to 130 ft/min (40 meters/min)
- Accurately measures footage and speed with an electronic monitoring system that works in either direction.
- The readout can be scaled to feet or meters.
- When pulling back, the fiberglass rod is placed directly back onto the cassette.
- Features rod access areas for wiping the rod clean during the pull back operation.

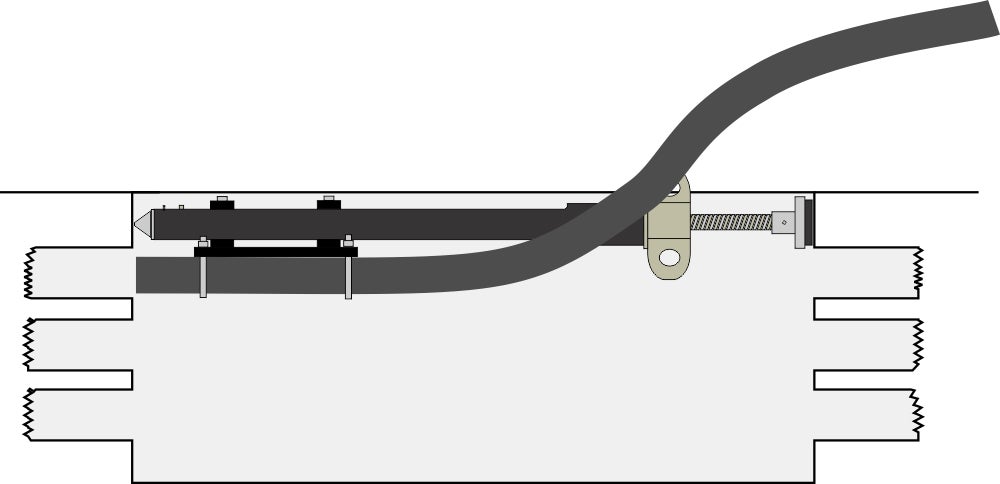

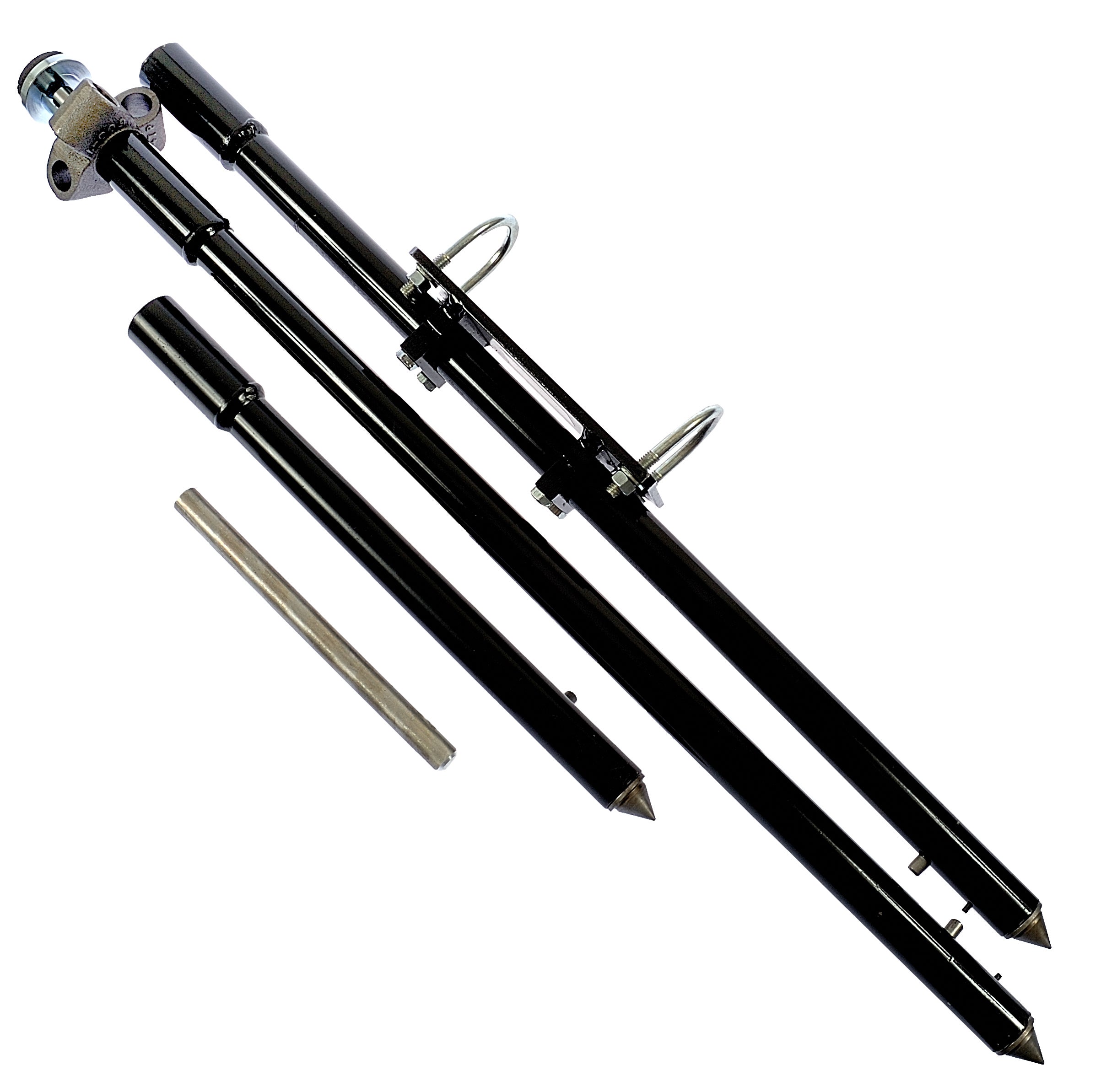

- Also comes with a package of rod wiper pads (P/N 32290) Duct Clamp on the machine, and the specially designed Duct Mounting Clamp Assembly (P/N 32221) provided on the rodder cassette, help stabilize both pieces of equipment during use. Comes with a gasoline driven power pack and hoses.
- Pusher is mounted on a lightweight, brightly painted, tubular-steel frame that can be tilted at a 30-degree angle to the manhole to reduce initial bending of the fiberglass rod.
- Must order 1/2 in. Duct Rodder Separately. Also, user must provide length of 1 1/4 in. innerduct between Rod Pusher and Rodder Cassette, and another length of 1 1/4 in. innerduct between the pusher and the duct to be rodded.

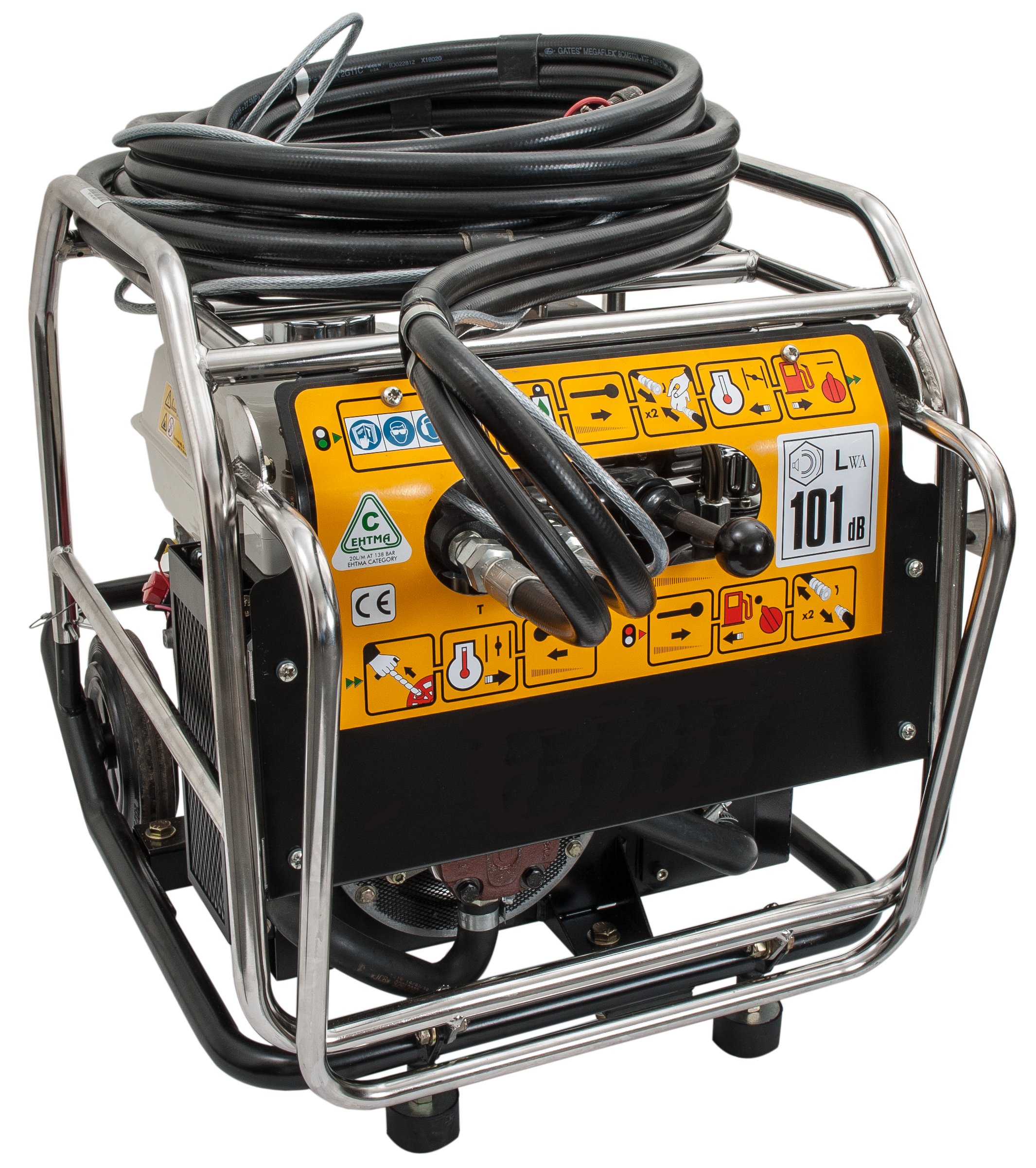

- Included with pusher is a gasoline hydraulic power pack.
P/N | Description | Weight |
89004 | Powered Duct Rod Pusher (calibration in feet) | 210 lbs. (95 kgs.) |
89005 | Powered Duct Rod Pusher (calibration in meters) | 210 lbs. (95 kgs.) |

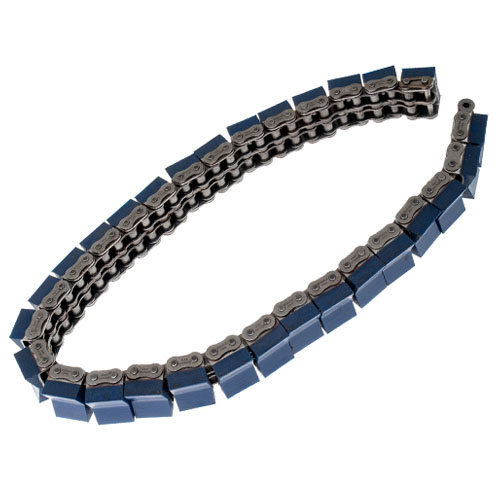

89191 | Replacement Drive Belt Each (2 required) | 3.36 lbs. (1.54 Kg) |
