eCAPSTAN ELECTRIC FIBER OPTIC PULLING CAPSTAN

Introducing the eCAPSTAN ELECTRIC FIBER OPTIC PULLING CAPSTAN  – the ultimate solution for clean, quiet, and efficient cable pulling. Designed to deliver up to 900 lbs of pulling force, this powerhouse works tirelessly all day on a single charge, pulling up to 15,000 ft of cable (estimated based on average pull and speed).

Why Choose the GMP eCapstan?

  • Whisper-Quiet Operation: Enhance jobsite communication and safety with
    minimal noise.
  • Eco-Friendly Design: No engine, no emissions – just pure electric efficiency.
  • Precision Control: Adjustable pulling force and speed with electronically controlled
    setpoints from 0-800+ lbs.
  • Effortless Operation: Quick push-button settings for capstan diameter, max pulling
    force, and speed.
  • Durable Battery Life: Over 2000 full charging cycles (5+ years) with safe LiFePO4
    technology.
  • Versatile Setup: Compatible with hitch mounts or ground stands, and supports 32” or 42” capstans.
  • Single-Person Operation: Simplify your workflow with easy-to-use features.
  • Data Recording: Monitor pull force during operation for added precision and reliability.


Upgrade your cable-pulling game with the GMP eCapstan – where innovation meets performance. Clean. Quiet.
Powerful. Revolutionize Cable Pulling with the GMP eCapstan!

PART OF THE GMP LINE OF PRODUCTS

P/N

Description

Weight

71490

Motor and Battery

243 lbs.

71498

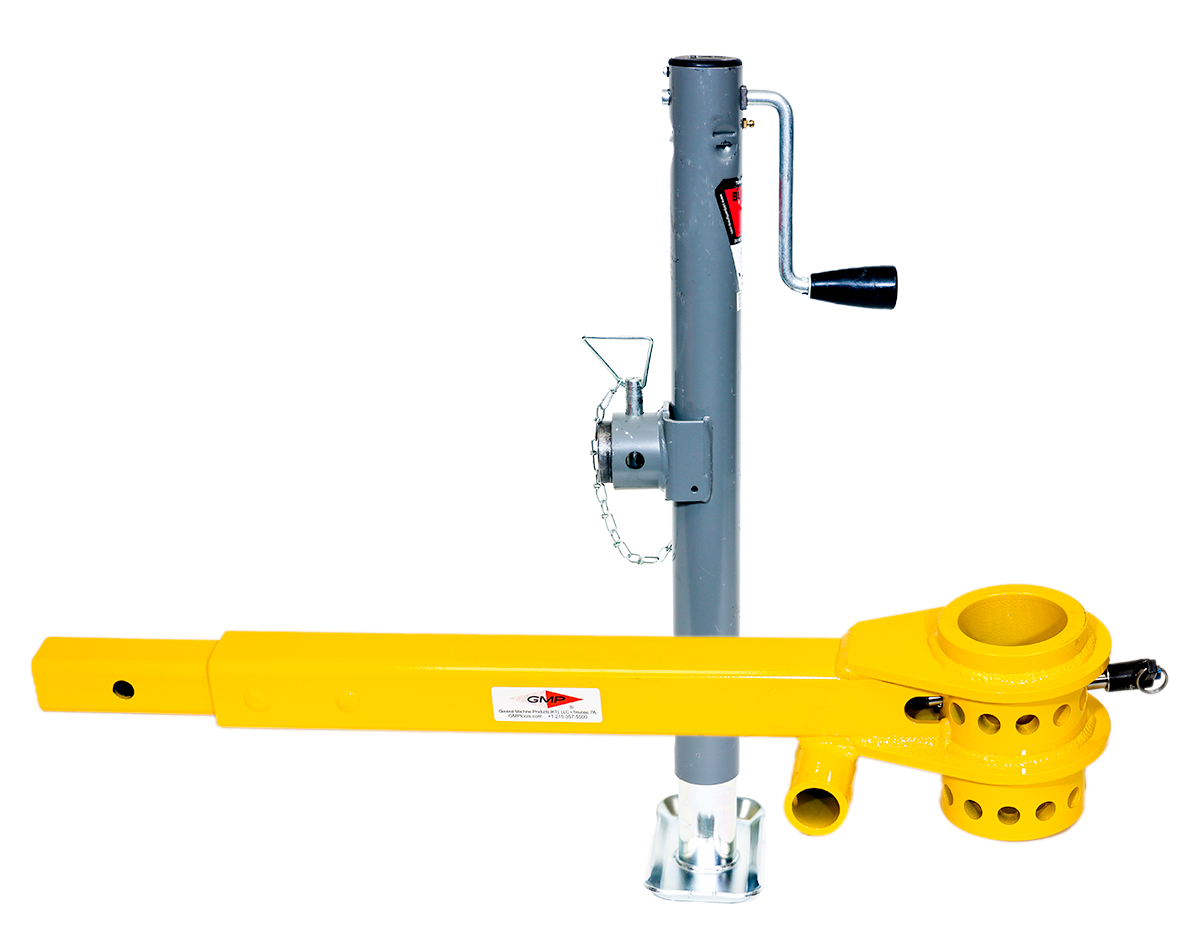

Ground Stand Kit

146 lbs.

71499

Hitch Mount Stand Kit

78 lbs.

36207

32” Capstan

35 lbs.

71491

42” Capstan

100 lbs.

71800

Foot Pedal and Cord

80 lbs.



Operating Capacities

Max Pulling Load: 900 lbs. (3558 N)@ 100lb setpoints
Max Pulling Speed: 300 feet/minute (76m/min)
Battery Life Max Pull: 8500' @ 600 lbs. & 175 feet/minute

Battery

Battery Type: LiFePO4
Battery Size: 48V, 40Ah
Charge Time: 8hr
Height: 11 in (280mm)
Length: 15 in (381mm)
Width: 9 in (229mm)
Weight: 43 lbs. (19.5kg)

Dimensions with Ground Stand and 42 in Capstan

Height: 53 in (1346mm)
Length: 46.75 in (1187mm)
Width: 48.5 in (1232mm)
Weight: 326 lbs. (147kg)

Dimensions with Hitch Mount and 42 in Capstan

Height: 43 in (1092mm)
Length: 53 in (1346mm)
Width: 24 in (609mm)
Weight: 258 lbs. (117kg)

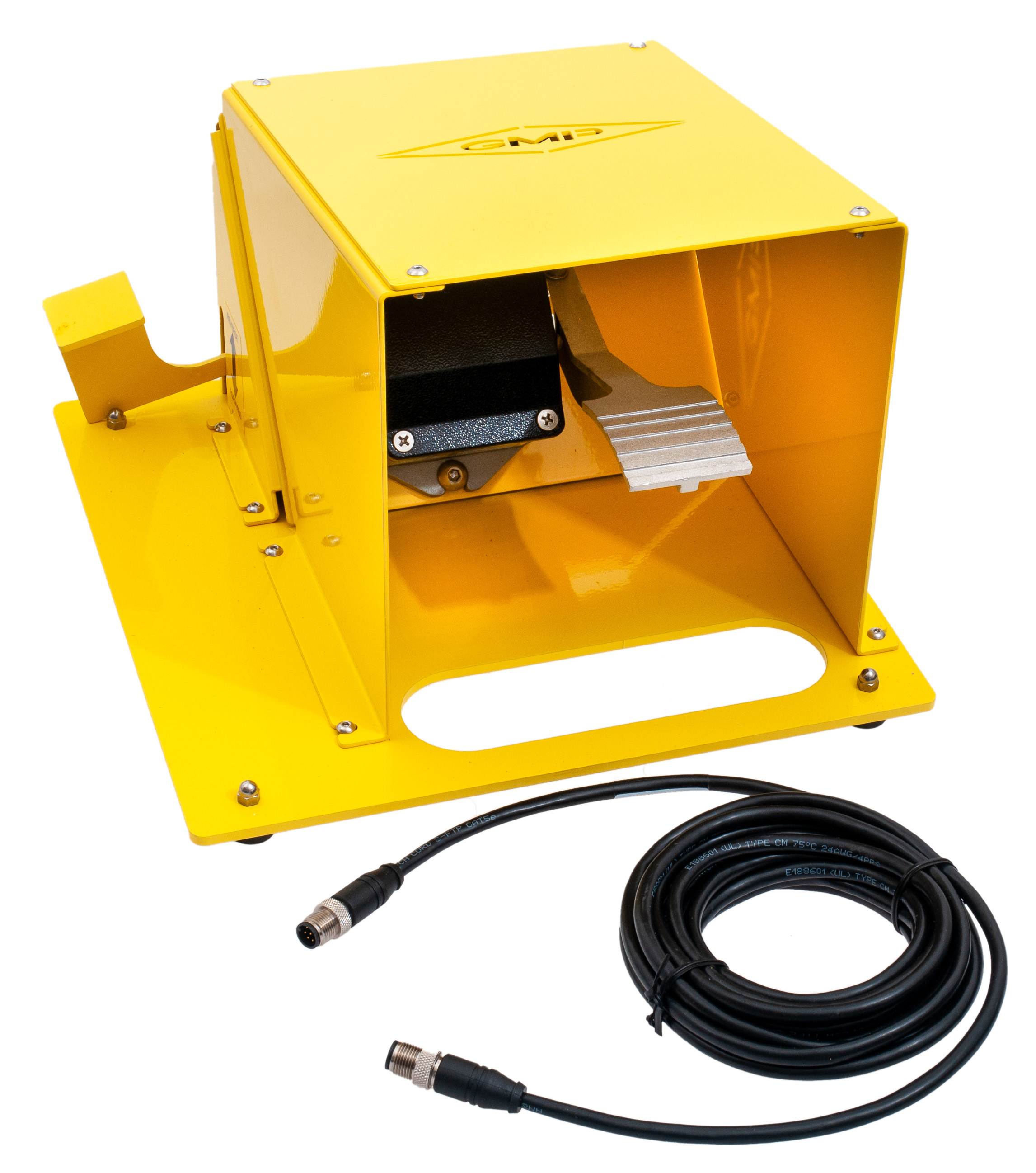

Accessory Foot Pedal with 15 ft Cable PN 71800

Accessory Foot Pedal with 15 ft Cable PN 71800

  • Allows the user to work hands-free at a safe distance
  • Variable Speed
  • 15 ft heavy-duty cord
  • Foot operated forward and reverse
  • Durable powder-coated frame
  • Designed to be used in damp environments
