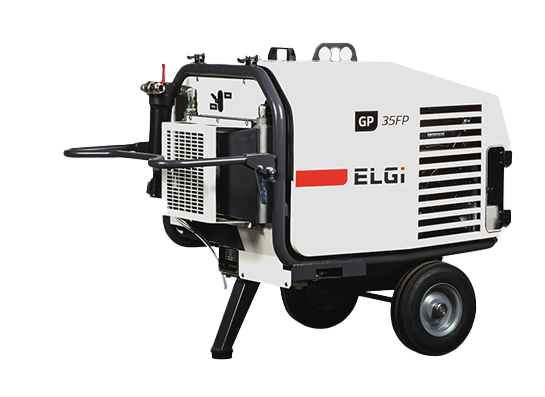

ELGI 35 CFM PORTABLE AIR COMPRESSOR
The GP35FP is specifically designed to meet the needs of fiber optic cable blowing professionals.

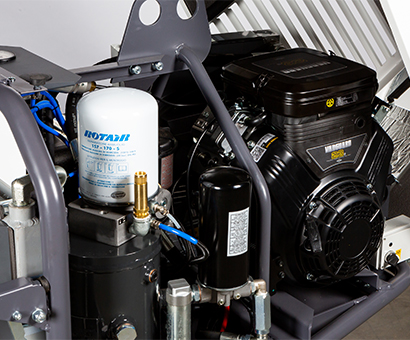

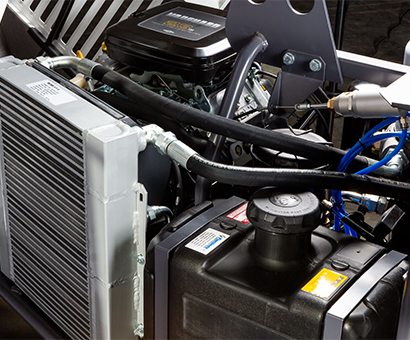

- Two integrated aftercoolers and moisture separator to reduce service air temperature to ambient + 3.6 F

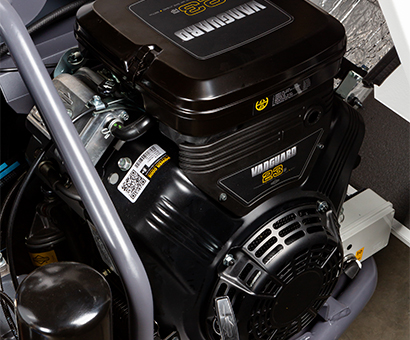

- Vanguard 23 HP gas engine with electric start and recoil starter
- The compressor package includes a 50 foot 3/4 in. diameter air hose for connection to the microFiber cable blowing machine
- Produces 35 cfm at 218 psi, perfect for fiber optic cable installation
- A skid option is available for installation on a utility truck or trailer
- Compatible with our Hurricane, AirStream, Whisper, Accelair, GentleAir and MicroDrive blowers
P/N 90200 35 CFM PORTABLE AIR COMPRESSOR with 50 FOOT AIR HOSE 563lbs (255kg)
COMPRESSOR | | | GASOLINE ENGINE | |
Operating Pressure | 218 psi | | Engine Make | VANGUARD |
Free Air Delivery | 35 cfm | | Engine Type | 3864 |
Minimum Working Pressure | 73 psi | | Engine System | 4 stroke |
Drive System Engine-Airend | Belt-drive | | Displacement | 627 cc |
Air Outlet Temperature | Ambient +3.6°F | | No. Cylinders | 2 |
Oil Cooling Capacity | 1.33 gal | | Aspiration | Natural |

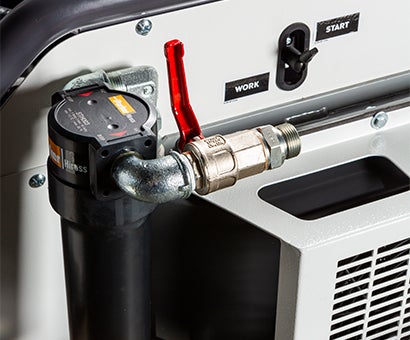

Outlet Valves | 1 x 3/4" | | Max Engine Power @ 3600 RPM | 23 HP |
Battery Capacity | 12V 45Ah 330A | | Max Engine Speed | 3600 RPM |
Fuel Tank Capacity | 3.9 gal | | Min Engine Speed | 2000 RPM |
Fuel Consumption | 1.7 gph | | Cooling System | Air |
Dimensions with Running Gear | L-47" W-31" H-38" | | Cooling System Capacity | 0.38 gal |
Dimensions with Skid Configuration | L-47" W-31" H-36" | | Lubrication System | Oil |
Dry Weight with Running Gear | 563 lbs | | Lubrication System Capacity | 0.375 gal |
Dry Weight with Skid Configuration | 563 lbs | | Max Ambient Temperature | 115°F |
| | | Min Working Temperature | 14°F |
