CONTINUOUS DUCT RODDERS
GMP produces what are the best performing and most durable duct rodders available anywhere – at a price that represents the very best value. Decades of in-field use have proven this high visibility orange rod material to have the ideal combination of the mechanical properties of tensile strength,modulus, stiffness and bending behavior.
- Now available in either standard core or detectable copper core

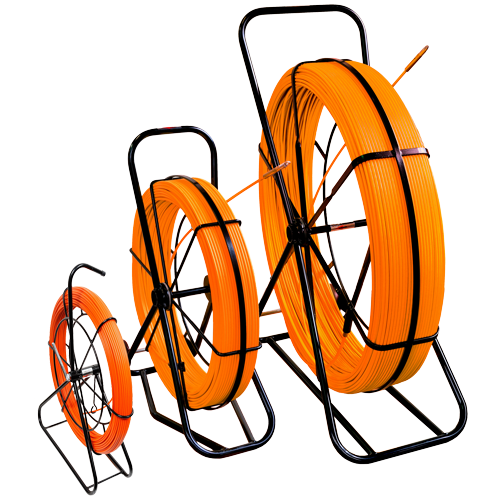

- When loaded onto our durable yet maneuverable dispenser/carriers these duct rodders are fundamentally essential tools for underground tasks such as cleaning and locating ducts, threading lines or pulling cables
- Rodders come equipped with a male threaded end fitting and tapered head on the leading end and a female threaded fitting on the back end
- Our carriers are made of tubular steel alloy and are powder coated for corrosion resistance. Larger diameter carriers have inboard wheels for easier transport at the jobsite. Each carrier is fitted with a hand-operated brake to control payout.
Note: Duct Rodders are made to order. Verify length and diameter when ordering. Due to custom nature of every Duct Rodder order, all orders are non-returnable. Custom sizes available.
Please refer to the following tables for specific lengths in each size.
Rodder Sizes and Lengths
| Nominal Size |
End Fitting Threads | Rated Tensile Strength |
Rated Pull Strength | Minimum Bend Diameter |
|---|---|---|---|---|
| 1/4 in. (6.7mm) | 5/16-18 | 6000 lbs.-f (29.5kN) | 500 lbs.-f (2.2kN) | 9.8 in. (250mm) |
| 3/8 in. (9mm) | 3/8-16 | 10000 lbs.-f (45.2kN) | 1400 lbs.-f (6.2kN) | 12.2 in. (310mm) |
| 1/2 in. (12mm) | 3/8-16 | 21000 lbs.-f (95.2kN) | 1800 lbs.-f (8.0kN) | 18 in. (450mm) |
Rodder Carrier Dimensions
| Nominal Size | Cassette Dia. in. (mm) |
Length in. (mm) | Width in. (mm) | Height in. (mm) |
|---|---|---|---|---|
| 1/4 in. (6.7mm) | 24 3/4 (629) | 21 1/2 (546) | 7 3/4 (197) | 30 (762) |
| 3/8 in. (9mm) | 33 1/2 (851) | 35 (889) | 13 1/2 (343) | 40 1/2 (1029) |
| 1/2 in. (12mm) | 45 (1143) | 46 (1168) | 18 1/2 (470) | 52 3/4 (1340) |
Non-Tonable Ductrodders
Ordering Information – Standard Rod – 1/4 in.
| P/N | 1/4 in. (6.7mm) Duct Rodders | Weight |
|---|---|---|
| 89202 | 1/4 in. (6.7mm) X 100 ft. (30m) | 13 lbs. (6kg) |
| 89204 | 1/4 in. (6.7mm) X 200 ft. (61m) | 15 lbs.(7kg) |
| 89206 | 1/4 in. (6.7mm) X 300 ft. (91m) | 17 lbs.(8kg) |
| 89208 | 1/4 in. (6.7mm) X 400 ft. (122m) | 19 lbs.(9kg) |
| 89210 | 1/4 in. (6.7mm) X 500 ft. (152m) | 21 lbs.(10kg) |
| 89205 | 1/4 in. Replacement Rod Cut to order with end fittings installed |
Ordering Information – Standard Rod – 3/8 in.
| P/N | 3/8 in. (9mm) Duct Rodders | Weight |
|---|---|---|
| 89222 | 3/8 in. (9mm) X 200 ft. (61m) | 63 lbs. (29kg) |
| 89224 | 3/8 in. (9mm) X 300 ft. (91m) | 69 lbs. (31kg) |
| 89226 | 3/8 in. (9mm) X 400 ft. (122m) | 76 lbs. (34kg) |
| 89228 | 3/8 in. (9mm) X 500 ft. (152m) | 82 lbs. (37kg) |
| 89230 | 3/8 in. (9mm) X 600 ft. (183m) | 89 lbs. (40kg) |
| 89232 | 3/8 in. (9mm) X 700 ft. (213m) | 95 lbs. (43kg) |
| 89234 | 3/8 in. (9mm) X 800 ft. (244m) | 101 lbs. (46kg) |
| 89236 | 3/8 in. (9mm) X 900 ft. (274m) | 108 lbs. (49kg) |
| 89238 | 3/8 in. (9mm) X 1000 ft. (305m) | 113 lbs. (52kg) |
| 89240 | 3/8 in. (9mm) X 1100 ft. (335m) (1) | 139 lbs. (63kg) |
| 89242 | 3/8 in. (9mm) X 1200 ft. (366m) (1) | 146 lbs. (66kg) |
| 89243 | 3/8 in. (9mm) X 1300 ft. (396m) (1) | 152 lbs. (69kg) |
| 89244 | 3/8 in. (9mm) X 1400 ft. (427m) (1) | 158 lbs. (72kg) |
| 89245 | 3/8 in. (9mm) X 1500 ft. (457m) (1) | 164 lbs. (74kg) |
| 89246 | 3/8 in. (9mm) X 1600 ft. (488m) (1) | 171 lbs. (78kg) |
| 89247 | 3/8 in. (9mm) X 1700 ft. (518m) (1) | 177 lbs. (80kg) |
| 89248 | 3/8 in. (9mm) X 1800 ft. (549m) (1) | 183 lbs. (83kg) |
| 89249 | 3/8 in. (9mm) X 2000 ft. (610m) (1) | 196 lbs. (89kg) |
| (1) Larger 1/2 carrier used for extra length of rod | ||
| 89223 | 3/8 in. Replacement Rod Cut to order with end fittings installed |
Ordering Information – Standard Rod – 1/2 in.
| P/N | 1/2 in. (12mm) Duct Rodders | Weight |
|---|---|---|
| 89252 | 1/2 in. (12mm) X 200 ft. (61m) | 87 lbs. (39kg) |
| 89254 | 1/2 in. (12mm) X 300 ft. (91m) | 98 lbs. (44kg) |
| 89256 | 1/2 in. (12mm) X 400 ft. (122m) | 109 lbs.(49kg) |
| 89258 | 1/2 in. (12mm) X 500 ft. (152m) | 120 lbs. (54kg) |
| 89260 | 1/2 in. (12mm) X 600 ft. (183m) | 132 lbs. (60kg) |
| 89262 | 1/2 in. (12mm) X 700 ft. (213m) | 143 lbs. (65kg) |
| 89264 | 1/2 in. (12mm) X 800 ft. (244m) | 154 lbs. (70kg) |
| 89266 | 1/2 in. (12mm) X 900 ft. (274m) | 165 lbs. (75kg) |
| 89268 | 1/2 in. (12mm) X 1000 ft. (305m) | 177 lbs. (80kg) |
| 89270 | 1/2 in. (12mm) X 1100 ft. (335m) | 188 lbs. (85kg) |
| 89272 | 1/2 in. (12mm) X 1200 ft. (366m) | 199 lbs. (90kg) |
| 89253 | 1/2 in. Replacement Rod Cut to order with end fittings installed |
Tonable Ductrodders
The GMP toneable duct rodders are available in 3/8″ and 1/2 ” diameter. Detectable duct rods are used to find, follow and accuratelymap the duct route without digging or trenching. The traceable duct rod is used in conjunction with both a signal transmitter and a receiver. The easily identifiable signal is transmitted along the entire length of the duct rod.
The toneable duct rod has an 18 AWG copper wire, almost twice the size of the competition, in the center of the fiberglass core. The copper wire is also connected to the end fittings so the transmitter leads can make a direct connection to the copper wire. The female end fitting provides the attachment point for the transmitter’s lead connection. The other transmitter lead is connected to a stake driven into the earth. The direct connection of the signal to the copper wire provides the most effective method of signal transmission.
Toneable Duct Rodder Features
• Large internal copper conductor
• Premium rod material
• Can be used with a sonde
Used with our Traceable Rod Detection Transmitter and Receiver
Ordering Information – Detectable Rod – 3/8 in.
| P/N | 3/8 in. (9mm) Duct Rodders with Detectable Rod |
Weight |
|---|---|---|
| 88222 | 3/8 in. (9mm) X 200 ft. (61m) | 63 lbs. (29kg) |
| 88224 | 3/8 in. (9mm) X 300 ft. (91m) | 69 lbs. (31kg) |
| 88226 | 3/8 in. (9mm) X 400 ft. (122m) | 76 lbs. (34kg) |
| 88228 | 3/8 in. (9mm) X 500 ft. (152m) | 82 lbs. (37kg) |
| 88230 | 3/8 in. (9mm) X 600 ft. (183m) | 89 lbs. (40kg) |
| 88232 | 3/8 in. (9mm) X 700 ft. (213m) | 95 lbs. (43kg) |
| 88234 | 3/8 in. (9mm) X 800 ft. (244m) | 101 lbs. (46kg) |
| 88236 | 3/8 in. (9mm) X 900 ft. (274m) | 108 lbs. (49kg) |
| 88238 | 3/8 in. (9mm) X 1000 ft. (305m) | 114 lbs. (52kg) |
| 88223 | 3/8 in. Replacement Rod Cut to order with end fittings installed |
Ordering Information – Detectable Rod – 1/2 in.
| P/N | 1/2 in. (12mm) Duct Rodders with Detectable Rod |
Weight |
|---|---|---|
| 88252 | 1/2 in. (12mm) X 200 ft. (61m) | 87 lbs. (39kg) |
| 88254 | 1/2 in. (12mm) X 300 ft. (91m) | 98 lbs. (44kg) |
| 88256 | 1/2 in. (12mm) X 400 ft. (122m) | 109 lbs. (49kg) |
| 88258 | 1/2 in. (12mm) X 500 ft. (152m) | 120 lbs. (54kg) |
| 88260 | 1/2 in. (12mm) X 600 ft. (183m) | 132 lbs. (60kg) |
| 88262 | 1/2 in. (12mm) X 700 ft. (213m) | 143 lbs. (65kg) |
| 88264 | 1/2 in. (12mm) X 800 ft. (244m) | 154 lbs. (70kg) |
| 88266 | 1/2 in. (12mm) X 900 ft. (274m) | 165 lbs. (75kg) |
| 88268 | 1/2 in. (12mm) X 1000 ft. (305m) | 177 lbs. (80kg) |
| 89270 | 1/2 in. (12mm) X 1100 ft. (335m) | 188 lbs. (85kg) |
| 88272 | 1/2 in. (12mm) X 1200 ft. (366m) | 199 lbs. (90kg) |
| 88253 | 1/2 in. Replacement Rod Cut to order with end fittings installed |
Warning! Do not use on live circuits as electric shock may result. The detectable duct rod contains an internal copper wire and may conduct electricity.
Continuous Duct Rodder Accessories:
Optional Duct Rodder Accessory Kits
You can now store all your accessories in a convenient attached pouch. These kits come with the essentials you’ll need for use and repair of a broken rod.
Duct Rodder Accessory Kits
Ordering Information – Continuous Duct Rodder Accessories:
| P/N | Description | Weight |
|---|---|---|
Duct Rodder Accessory Kits |
||
| 89424 | 1/4 in. Std. rod Kit with Canvas Pouch | |
| 89425 | 3/8 in. Std. rod Kit with Canvas Pouch | |
| 89426 | 1/2 in. Std. rod Kit with Canvas Pouch | |
| 88425 | 3/8 in. Toneable rod Kit with Canvas Pouch | |
| 88426 | 1/2 in. Toneable rod Kit with Canvas Pouch | |
| 89417 | Splice (repair) Kit 1/4 in. (6.7mm)(orange rod only) |
1.76 oz (.05 kg) |
| 89418 | Splice (repair) Kit 3/8 in. (9mm)(orange rod only) |
2.88 oz. (.08 kg) |
| 89419 | Splice (repair) Kit 1/2 in. (12mm)(orange rod only) |
2.40 oz. (.07 kg) |
| 88418 | Splice (repair) Kit for Toneable Rod 3/8 in. | |
| 88419 | Splice (repair) Kit Toneable Rod 1/2 in | |
Fitting Repair Kits. |
||
| 89411 | Male End Fitting (repair) Kit 1/4 in. (6.7mm)(orange rod only) |
.48 oz. (.01 kg) |
| 89412 | Female End Fitting (repair) Kit 1/4 in. (6.7mm)(orange rod only) |
.48 oz. (.01 kg) |
| 89413 | Male End Fitting (repair) Kit 3/8 in. (9mm)(orange rod only) |
3.96 oz. (.11 kg) |
| 89414 | Female End Fitting (repair) Kit 3/8 in. (9mm)(orange rod only) |
4.46 oz. (.13 kg) |
| 89415 | Male End Fitting (repair) Kit 1/2 in. (12mm)(orange rod only) |
2.97 oz. (.08 kg) |
| 89416 | Female End Fitting(repair) Kit 1/2 in. (12mm)(orange rod only) |
3.47 oz. (.10 kg) |
| 88413 | Male End Fitting (repair) Kit for Toneable Rod 3/8 in. (9mm) |
3.96 oz. (.11 kg) |
| 88414 | Female End Fitting (repair) Kit for Toneable Rod 3/8 in. (9mm) |
4.46 oz. (.13 kg) |
| 88415 | Male End Fitting (repair) Kit for Toneable Rod 1/2 in. (12mm) |
2.97 oz. (.08 kg) |
| 88416 | Female End Fitting (repair) Kit for Toneable Rod 1/2 in. (12mm) |
3.47 oz. (.10 kg) |
| 89398 | Duct Rodder Epoxy | 2 oz. (.06 kg) |
Accessories |
||
| 89350 | Tapered Head 1/4 in. (6.7mm) | .16 oz. (.01 kg) |
| 89352 | Tapered Head 3/8 in. (9mm) & 1/2 in. (12mm) | .48 oz. (.01 kg) |
| 89360 | Roller Guide 3/8 in. (9mm) & 1/2 in. (12mm) | 7.36 oz.(.21 kg) |
| 89370 | Flexible Leader 3/8 in.(9mm) & 1/2 in. (12mm) | 2.24 oz. (.06 kg) |
| 89371 | Flexible Leader 1/4 in (6.7mm) | 1 oz. (.03 kg) |
| 89380 | Swivel Coupling 1/4 in. (6.7mm) | .48 oz. (.01 kg) |
| 89382 | Swivel Coupling 3/8 in. (9mm) & 1/2 in. (12mm) | 4.32 oz. (.12 kg) |
| 89384 | Sonde Adapter 1/4 - 20 thread (male thread 1/4 X 20 / female thread 3/8 X 16) |
2.08 oz. (.06 kg) |
| 89394 | Sonde Adapter M10 X 1.5 Thread (both female thread M10 X 1.5 to 3/8 X 16) Use with GMP P/N 88283 |
1.76 oz. (.05 kg) |
| 09339 | Shackle Fitting 3/8 in. (9mm) & 1/2 in. (12mm) |
1.76 oz (.05 kg) |
| 88280 | Traceable Duct Rod Locating Receiver | 4 lbs. (1.87kg) |
| 88281 | Traceable Duct Rod Locating Transmitter | 6 lbs. (2.84kg) |
| 88283 | Sonde Transmitter (needs sonde adapter_sold below) |
3 oz. (.1kg) |
| 89394 | Sonde Adapterm10 x 1.5 Thread (female/female thread) |
1.76 oz. (.05 kg) |
