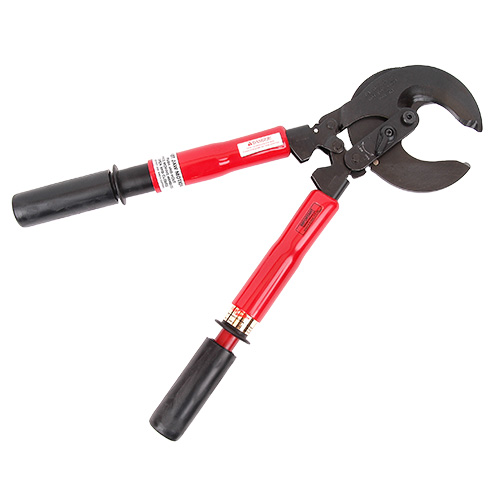

1000 MCM Ratcheting Cable Cutter
75245
These rugged Cutters are Designed specifically for cutting Power cable up to 1000 kcmil. (2.25 in. max o.d.)
- Fiberglass handles with 100 KV/ft. dielectric strength
- 1,000 MCM maximum capacity is 2.25 in. (57mm)
- Overall length is a compact 19 in. (483mm)
- Maximum mechanical advantage is provided by a two-speed Ratcheting mechanism which lets you switch between fast action blade movement (5 strokes to open or close) or high leverage cutting (18 strokes to close)
- For greatest leverage, the ratchet can advance one tooth with each closing stroke
- To change blade direction, just flick a lever on the blade head. Also, the speed switch works with blade movement in either direction.
- Designed to make every cut smoothly, the precision-Ground, high alloy tool Steel blades are twice as thick as those on some competing Cutters and offer excellent cutting edge performance
- A special hardening process on the ratchet and pawl mechanism gives them extra durability
