Reel Buck

Reel Buck w/42 in. Spindle Bar
Reel Buck w/42 in. Spindle Bar Reel Buck use Reel Buck Use 2

Reel Buck

Multiple

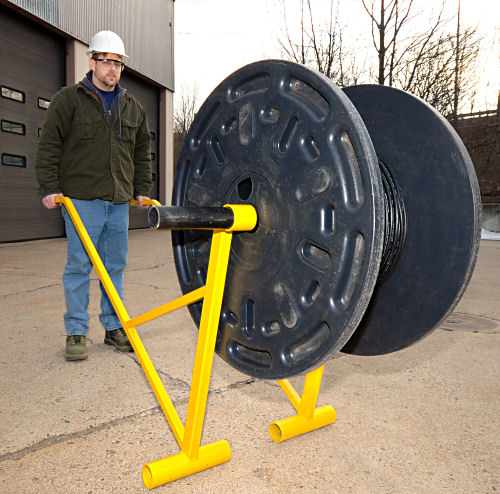

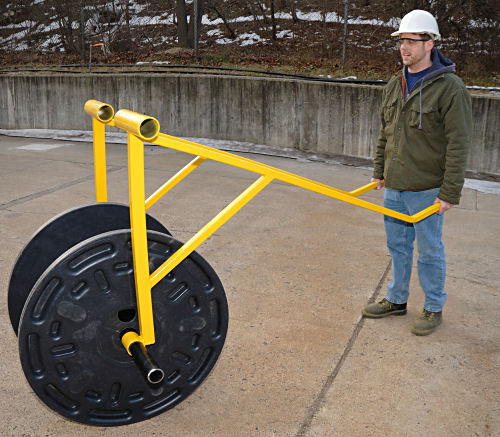

A tough, easily maneuvered and portable frame that’s ideal for supporting any reel up to 50 in. (1270mm) in diameter. Order P/N 71669 for 36 in. (914mm) wide or P/N 71678 for 54 in. (1372mm) wide reels. Order P/N 71679 for large diameter reels up to 84 in. (2134mm) in diameter.

  • Two welded, rectangular Steel members make up the frame.
  • Designed for one-person handling.
  • Will accommodate the Corning FlexNap™ cable Reels.
  • The frame is protected with a durable powder coat finish to prevent corrosion.
  • P/N 71669/71678 have a 1200 lb. (544kg) load capacity. P/N 71679 has a 500lb. (227kg) load capacity
  • 2 1/2″ diameter spindle bar included.

P/N

Description

Weight

71669

Reel Buck with 42 in. Spindle Bar for

80 lbs. (36kg) Including spindle bar



36 in. wide drum/50 in. diameter drum



71678

Reel Buck with 60 in. Spindle Bar for

90 lbs. (41kg) Including spindle bar



54 in. wide drum/50 in. diameter drum



71679

XL Reel Buck with 60 in. Spindle Bar for

100 lbs. (45kg) Including spindle bar



54 in. wide drum/84 in. diameter drum
