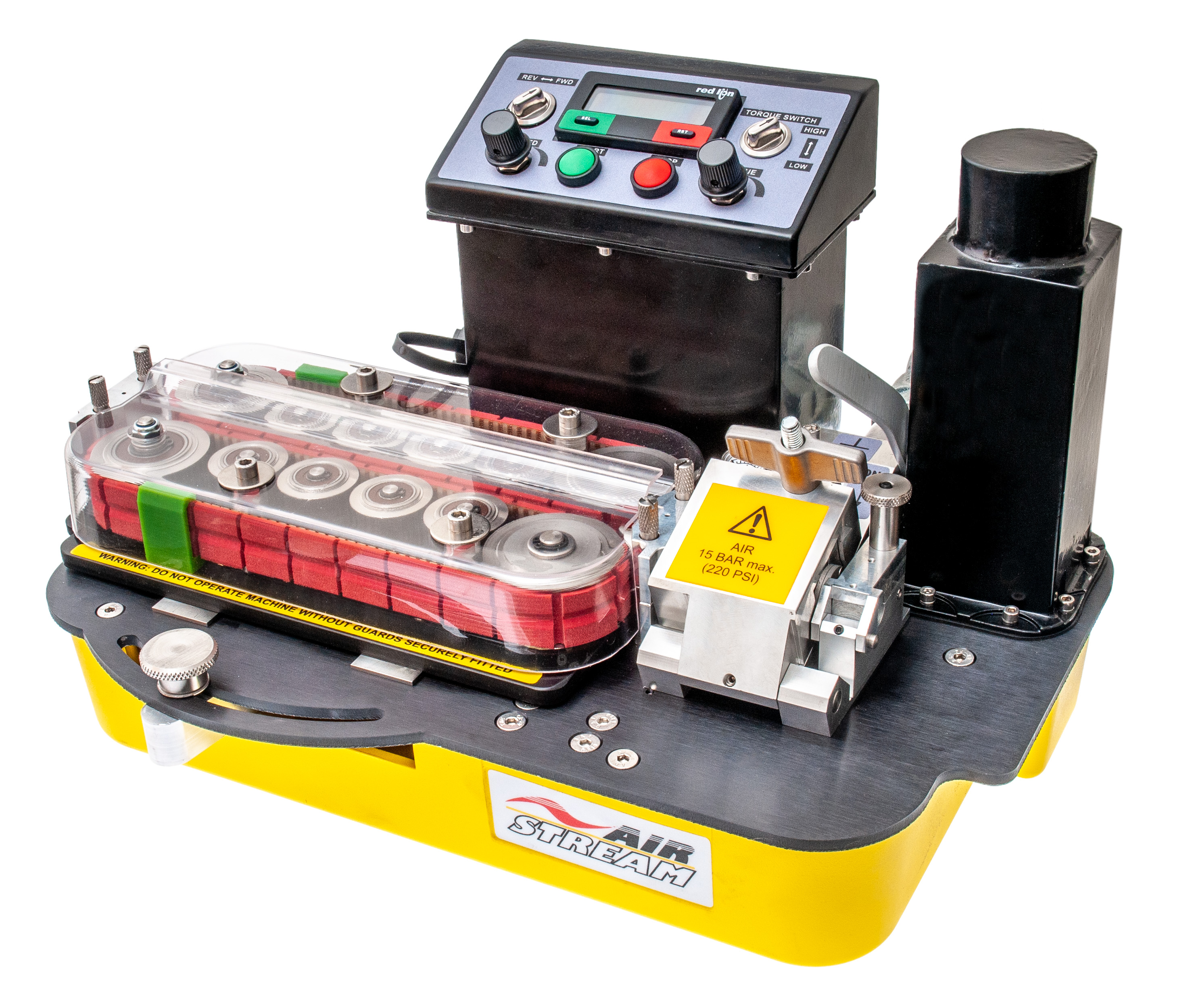

Airstream Cable Blowing Machine
The Air Stream has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed.
Single-person operation with safe, easy-to-operate ergonomic controls combines low maintenance and high reliability to form the machine’s key features. The Air Stream is adjustable to suit a wide range of cable diameters 2.5 – 11mm.
- Automatic Cable centralizing.
- Synchronous high grip profiled compliant drive belts.
- Tabletop design with ergonomic controls for ease of operation.
- Forward and reverse Variable torque and speed controls.
- Digital servo motor drive system.
- Single person operation.
- Digital cable speed and length monitoring.
- Flat Drop compatable.
WHAT'S INCLUDED WITH YOUR AIRSTEAM |
AirSteam Cable Blowing Machine |
Tube Collet and clamp assembly for (1) tube size of your choice |
Cable Guide assembly for (1) cable size of your choice |
Cable seal collet assembly for (1) cable size of your choice |
Toolkit |
Travel Case |
Manual |
WHAT'S INCLUDED WITH YOUR AIRSTREAM PLUS |
AirSteam Cable Blowing Machine |
Tube Collet and clamp assembly for (3) of the most popular tube sizes |
Cable Guide assembly for (3) of the most popular cable sizes |
Cable seal collet assembly for (3) of the most popular cable sizes |
Toolkit |
Travel Case |
Manual |
WHAT'S INCLUDED WITH YOUR AIRSTREAM MAX |
AirSteam Cable Blowing Machine |
Tube Collet and clamp assembly for ALL tube sizes |
Cable Guide assembly for ALL cable sizes |
Cable seal collet assembly for ALL cable sizes |
Toolkit |
Travel Case |
Manual |
P/N | Description | Weight |
89300 | AirStream Cable Blowing Machine* | 31 lbs (14kgs) |
89321 | AirStream Cable Blowing Machine PLUS* | 31 lbs (14kgs) |
89327 | AirStream Cable Blowing Machine MAX* | 31 lbs (14kgs) |
| SPECIFICATIONS |
|---|
| Cable Diameter: 2.5 to 11mm |
| Tube Size (Outside Dia): 5 to 18mm |
| Cable Speed (Adjustable): 0-260 ft/min (0-80m/min) |
| Air Pressure: 145-215 psi (10-15 Bar) |
| Power Requirement: 110/220 Volt AC |
| Width: 11.8 in. (300mm) |
| Length: 18 in. (460mm) |
| Height: 10.6 in. (270mm) |
