Accelair 3
89601
Designed to suit the smaller end of fiber range.

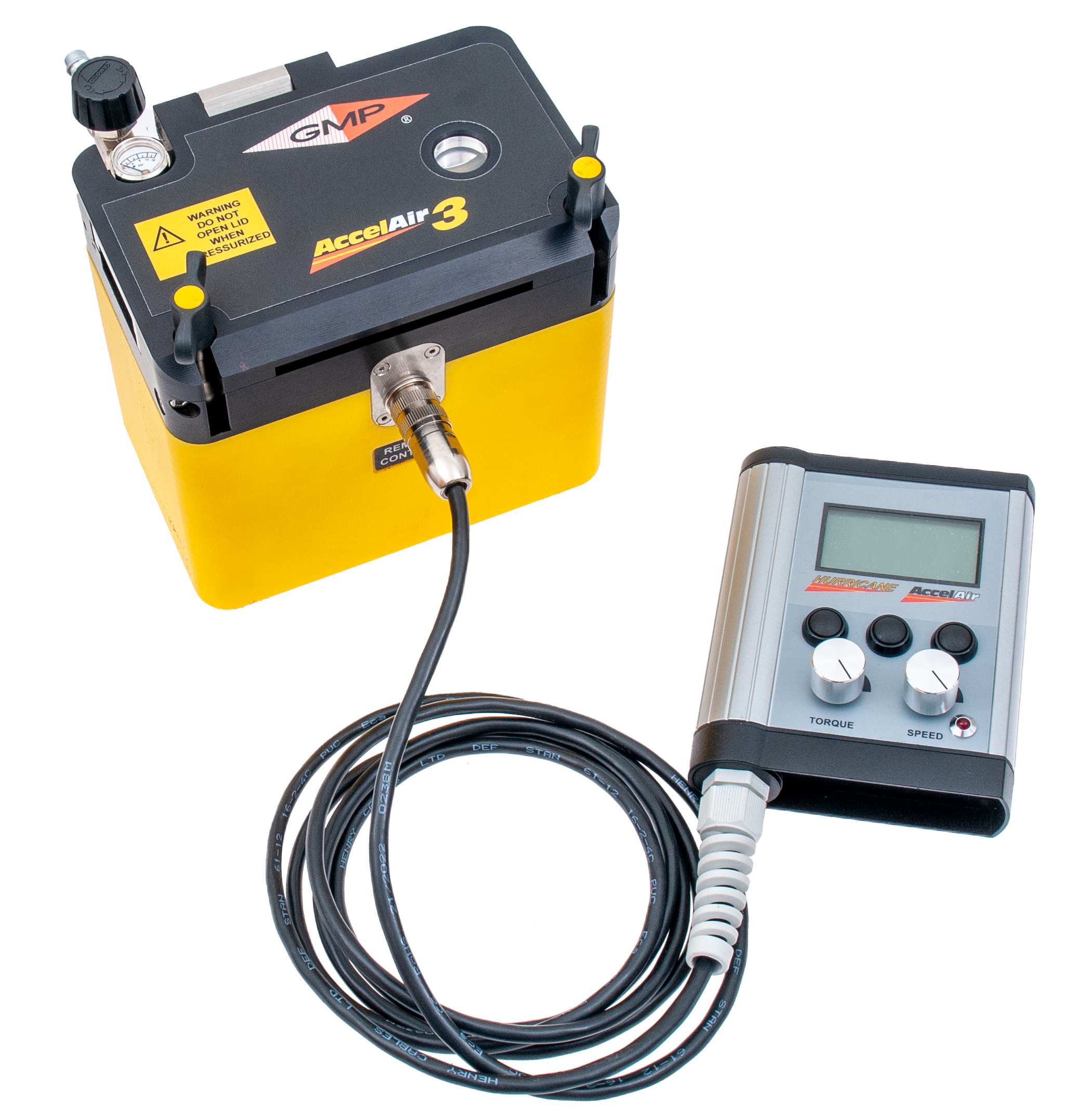

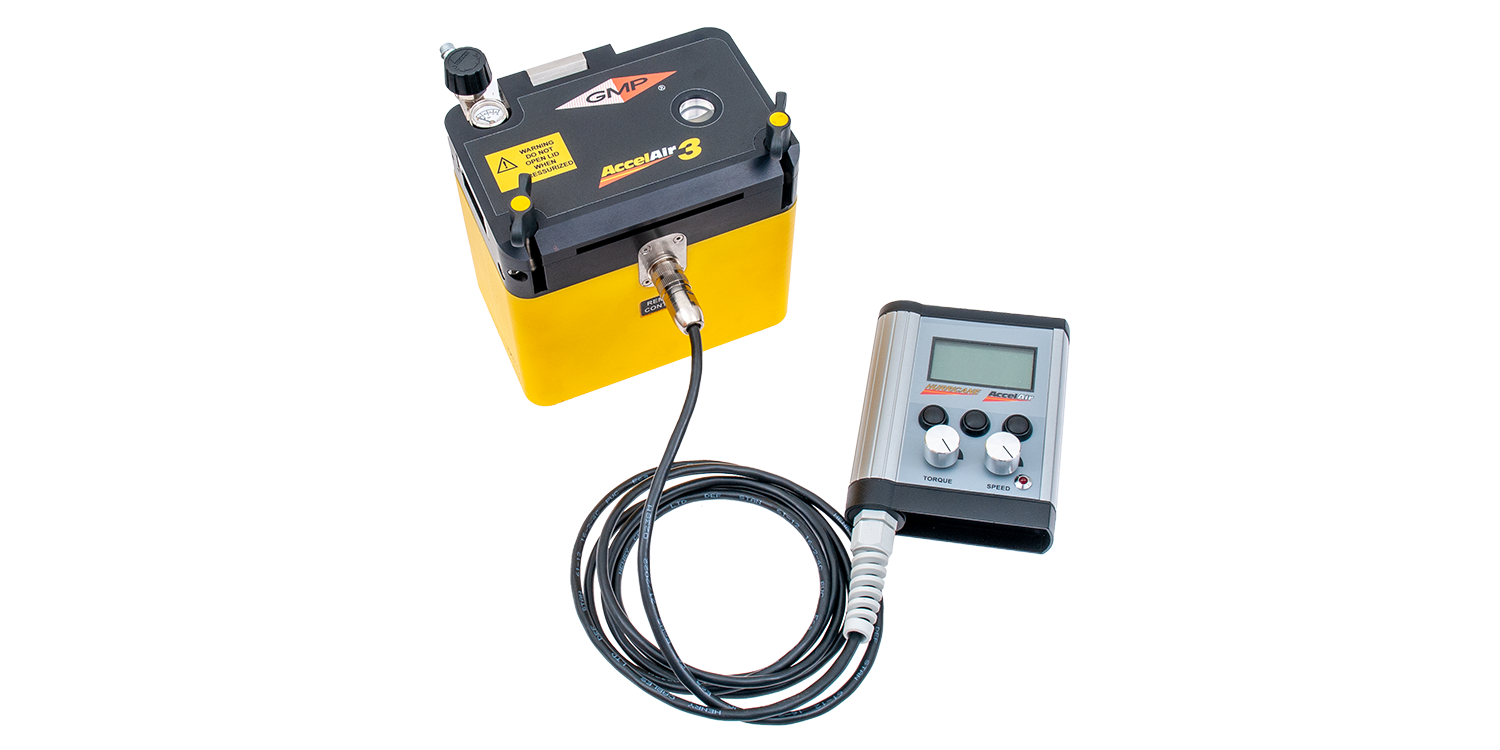

A compact integrated fiber-blowing machine, the AccelAir 3 benefits from full automation and fiber management. Its sophisticated fiber protection is designed to ensure that the blown fiber’s mechanical and optical integrity is maintained. The machine is self-contained and only requires a single electrical supply and compressed air to operate.
- Installs cable diameters of .08-1.6mm with buckle protection and 1.7 to 5mm without buckle protection.
- Accommodates microduct sizes of 3-12mm. Contact GMP for custom sizes.
- Powered directly by the supplied 120/240v to 30V universal power supply.
- Lightweight, durable construction with precision machined parts
- Single person operation
- Digital cable speed and length monitoring.
- Integral air valve and pressure gauge
- Low maintenance
- Durable carrying case included
WHAT'S INCLUDED WITH YOUR ACCELAIR3 |
AccelAir 3 Cable Blowing Machine |

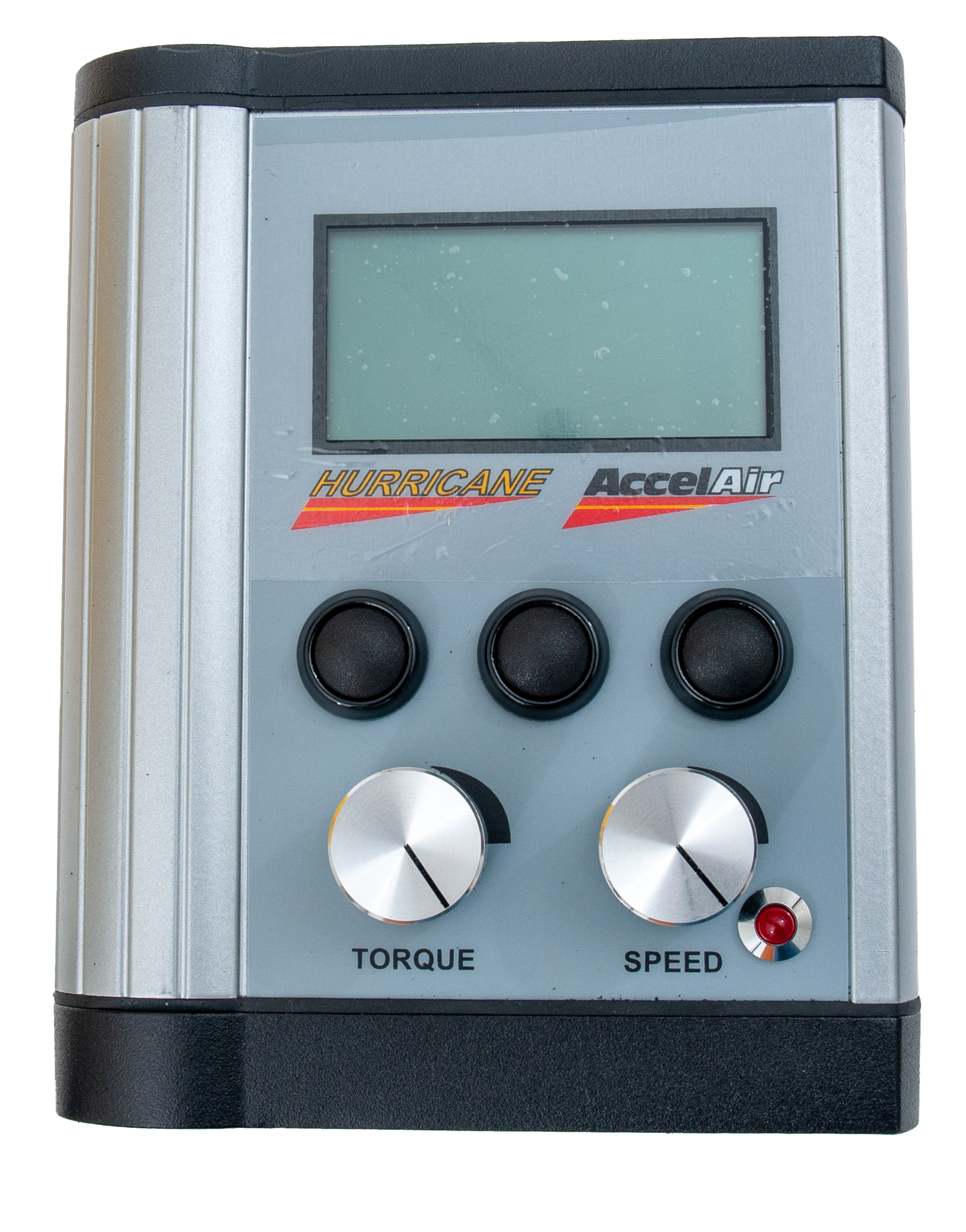

Remote Control |
120/240V Universal Power Supply |

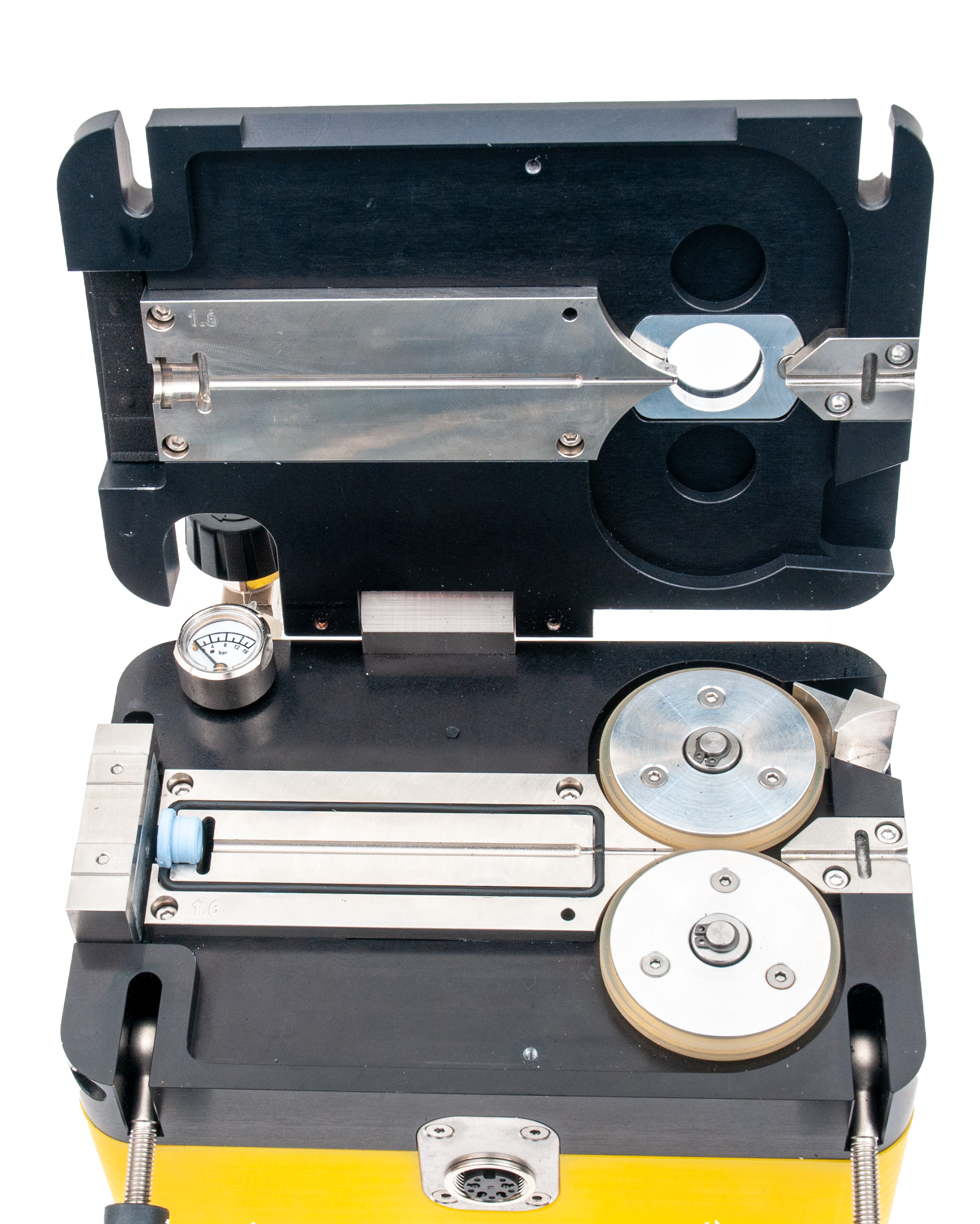

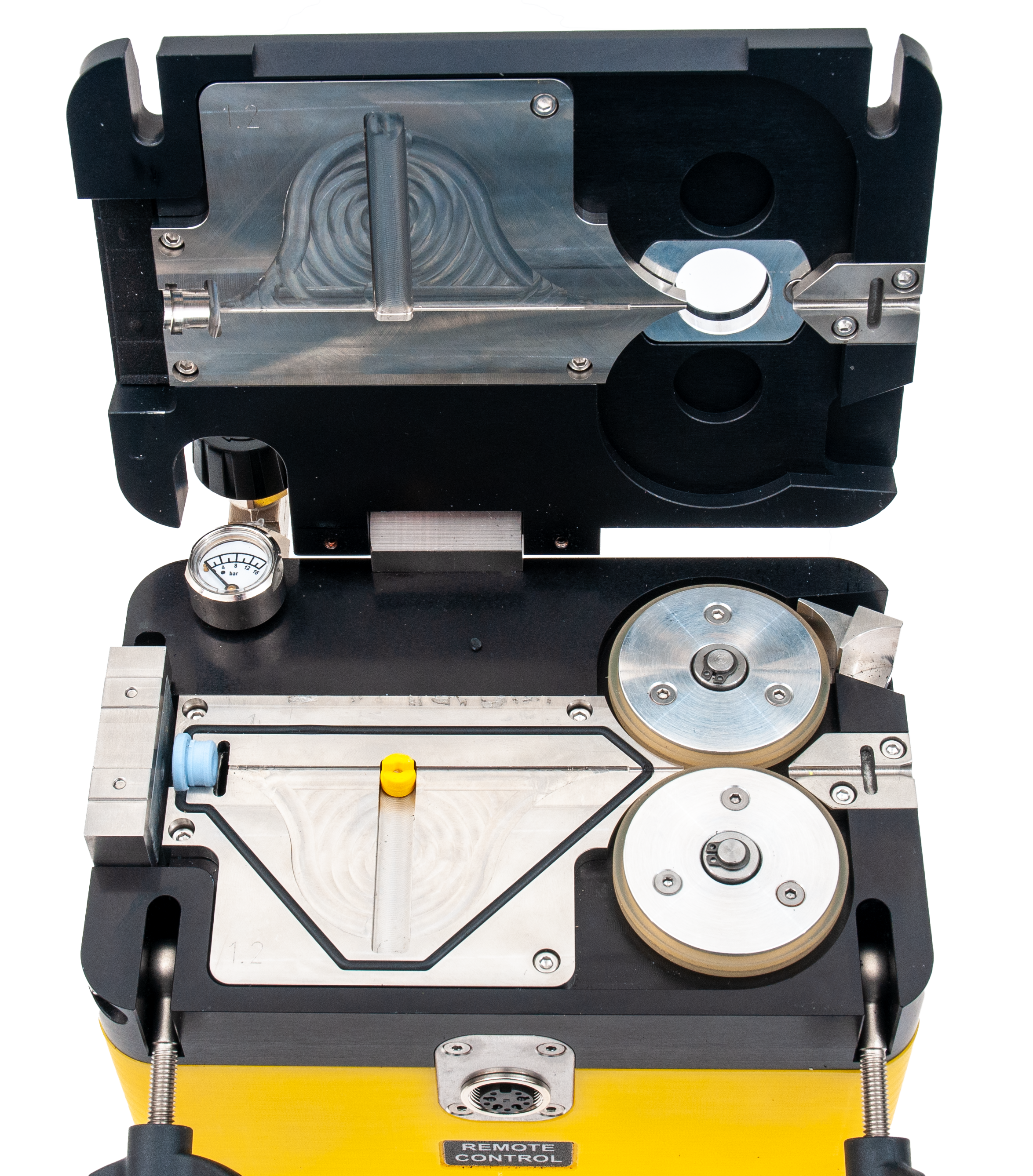

Buckle (w/5 shuttles) or blowing plate for (1) cable size of your choice |
Infeed guide for cable size of your choice |
Tube clamp and 5 seals for (1) tube size of your choice |
Toolkit |

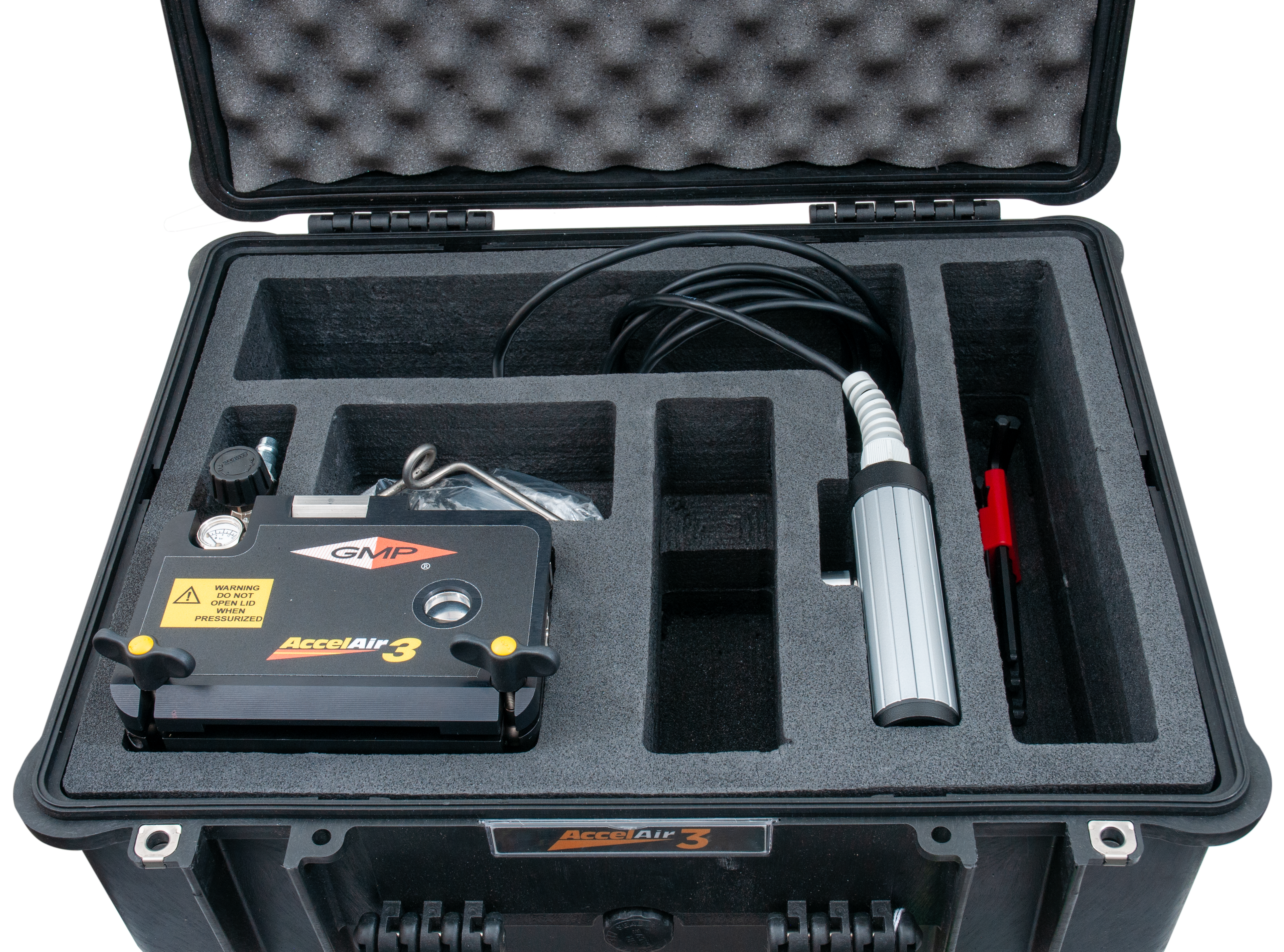

Heavy-duty weatherproof case |
Manual |
P/N | Description | Weight |
89610 | Accelair 3 Cable Blowing Machine | 6.6 lbs (3 kgs) |
| SPECIFICATIONS |
|---|
| Cable Diameter: .8 to 5 mm |
| Tube Size (Outside Dia): 3 to 12mm |
| Cable Speed (Adjustable): 0-328 ft/min (0-100m/min) without buckle detection 0-164 ft/min (0-50 m/min) with buckle detection |
| Max Air Pressure: 220 psi (15 Bar) 8.5 cfm (.24 m/min) |
| Power Requirement:120/220v power supply or optional 24v battery pack |
| Width:7.2 in. (184 mm) |
| Length: 6.5 in. (166 mm) |
| Height: 8.5 in. (216mm) |
| Weight: 6.6 lbs (3 kgs) |
WHAT'S INCLUDED WITH YOUR ACCELAIR 3
- AccelAir 3 Cable Blowing Machine
- Remote Control
- Buckle (w/5 shuttles) or blowing plate for (1) cable size of your choice
- Infeed guide for cable size of your choice
- Tube clamp and 5 seals for (1) tube size of your choice
- Toolkit
- Heavy-duty weatherproof case
- Manual
