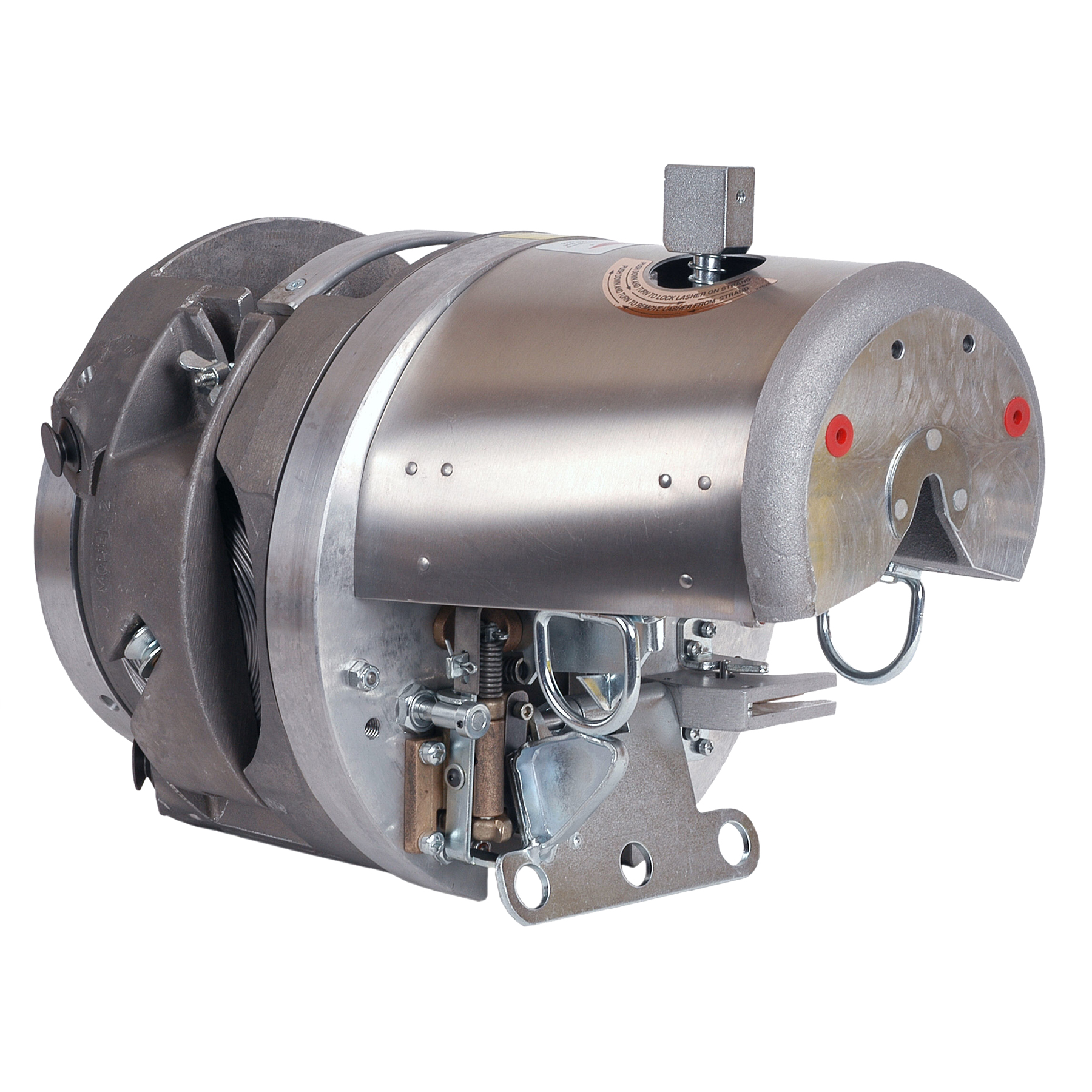

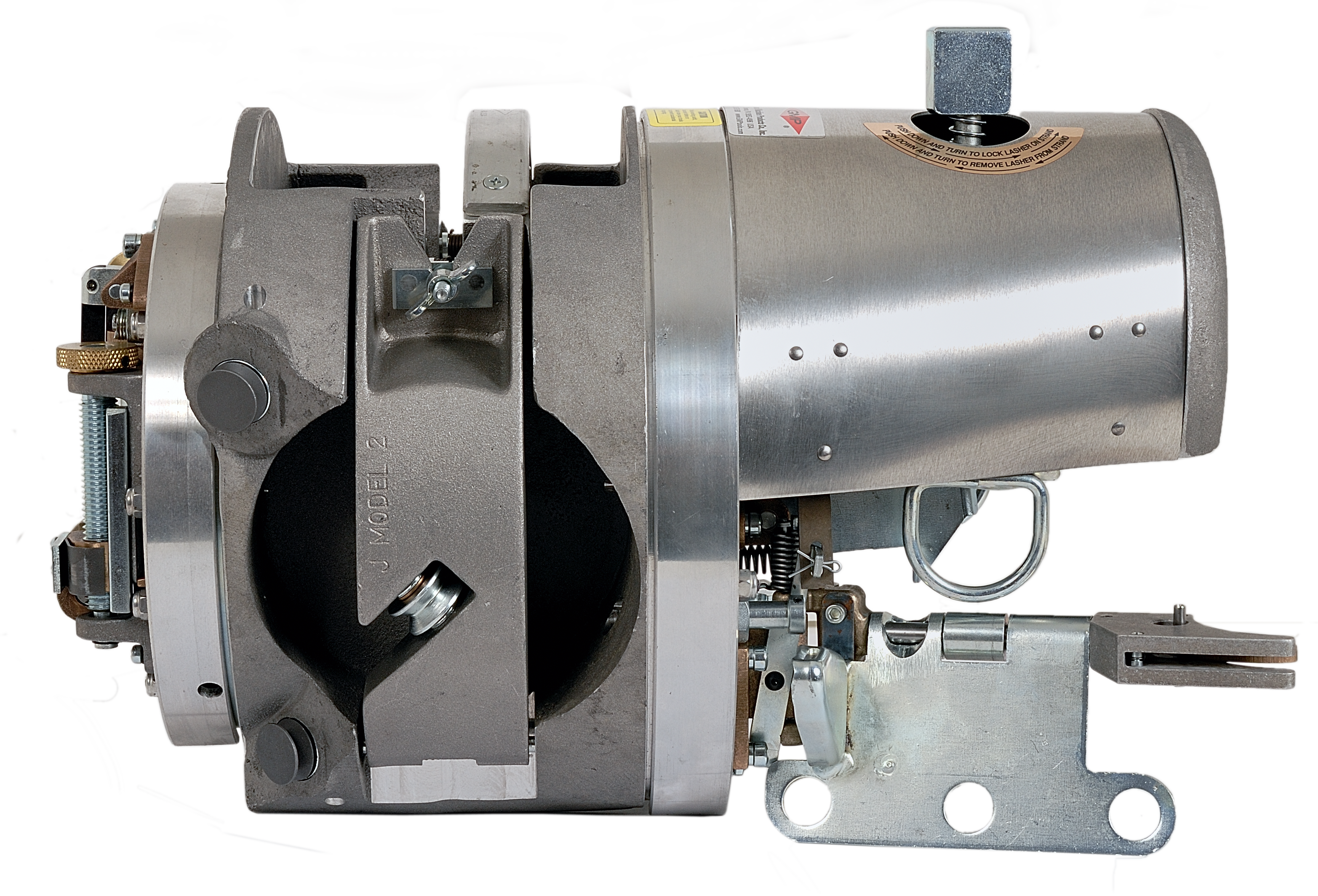

J2 Aerial Cable Lasher
86070
The model J2 Cable Lasher is used to lash a single aerial cable or numerous cables to a supporting strand or to an existing lashed cable with stainless steel lashing wire.
- Will lash any single or multiple aerial cables up to 3 in. (76mm) diameter across on any suspension strand from 1/4 in. (6mm) to 7/16 in. (11mm).

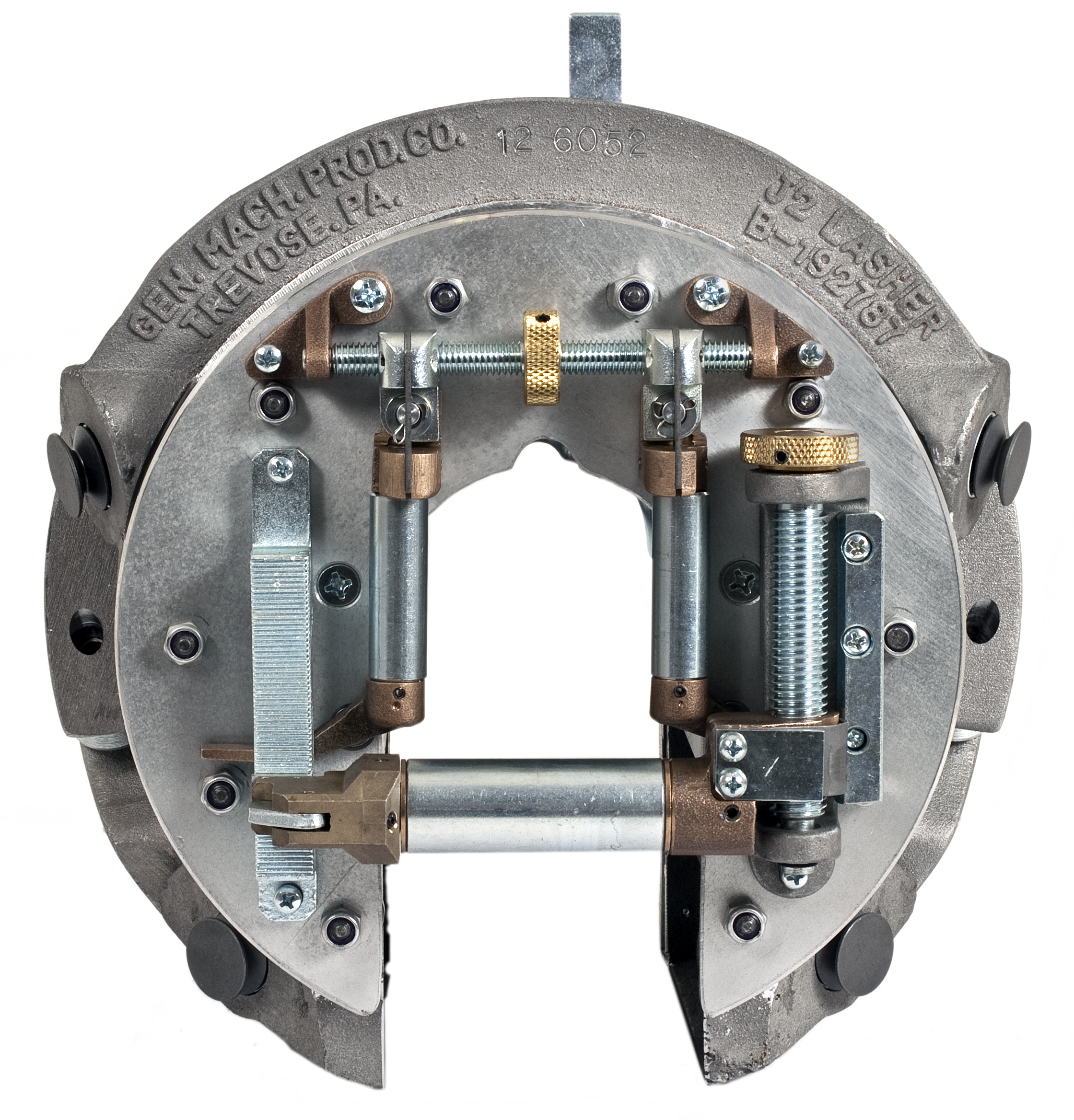

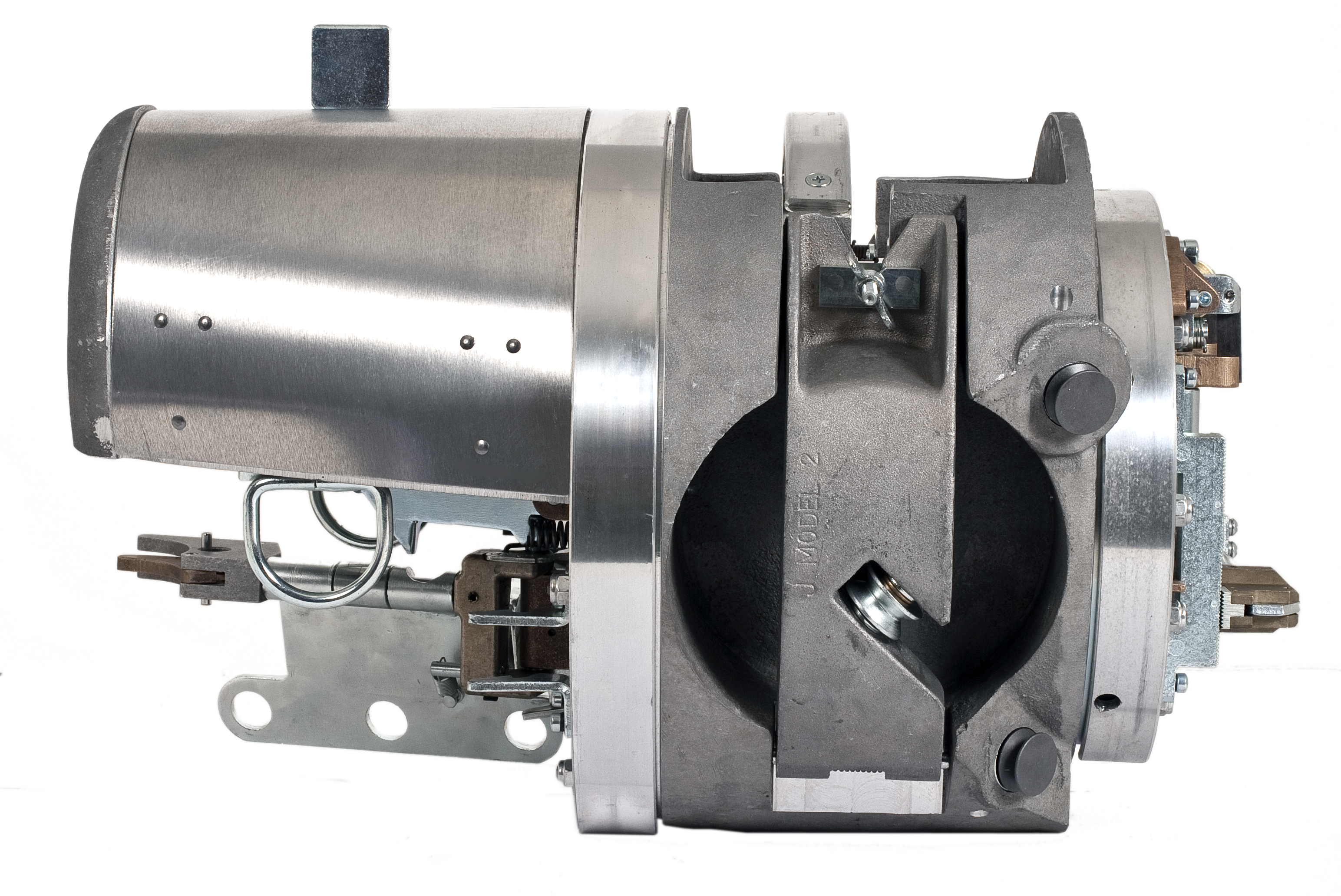

- Consists of a rotating drum supported on a carriage that provides the mounting for a driving mechanism, cable Lifters, cable and strand rollers
- Each of the two recessed magazines will hold a 1200 ft. coil of .045 in. (365m of 1.1mm wire) lashing wire. The lashing wire is fully recessed and covered by a gate.
- Features a fast setup procedure, quick coil loading, and automatic drum lock for easy span transfers and smooth forward travel
- J2 Lashers make overLashing easy. Just push down on the strand roller knob, rotate it a quarter turn and you can lash additional cables together on previously lashed cable
- Positive internal gear to gear mechanism has no chains or belts to stretch, slip or break
- Constructed with heat-treated, plated Steel, stainless Steel, brass and aluminum components. Contains sealed and oiless bearings to minimize maintenance and assure durability.

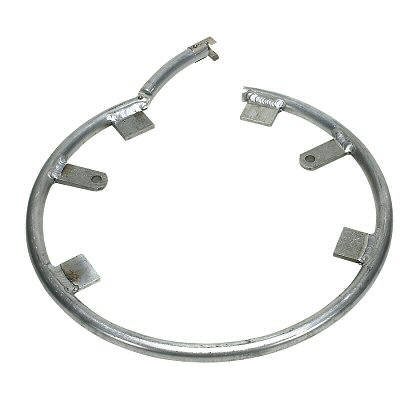

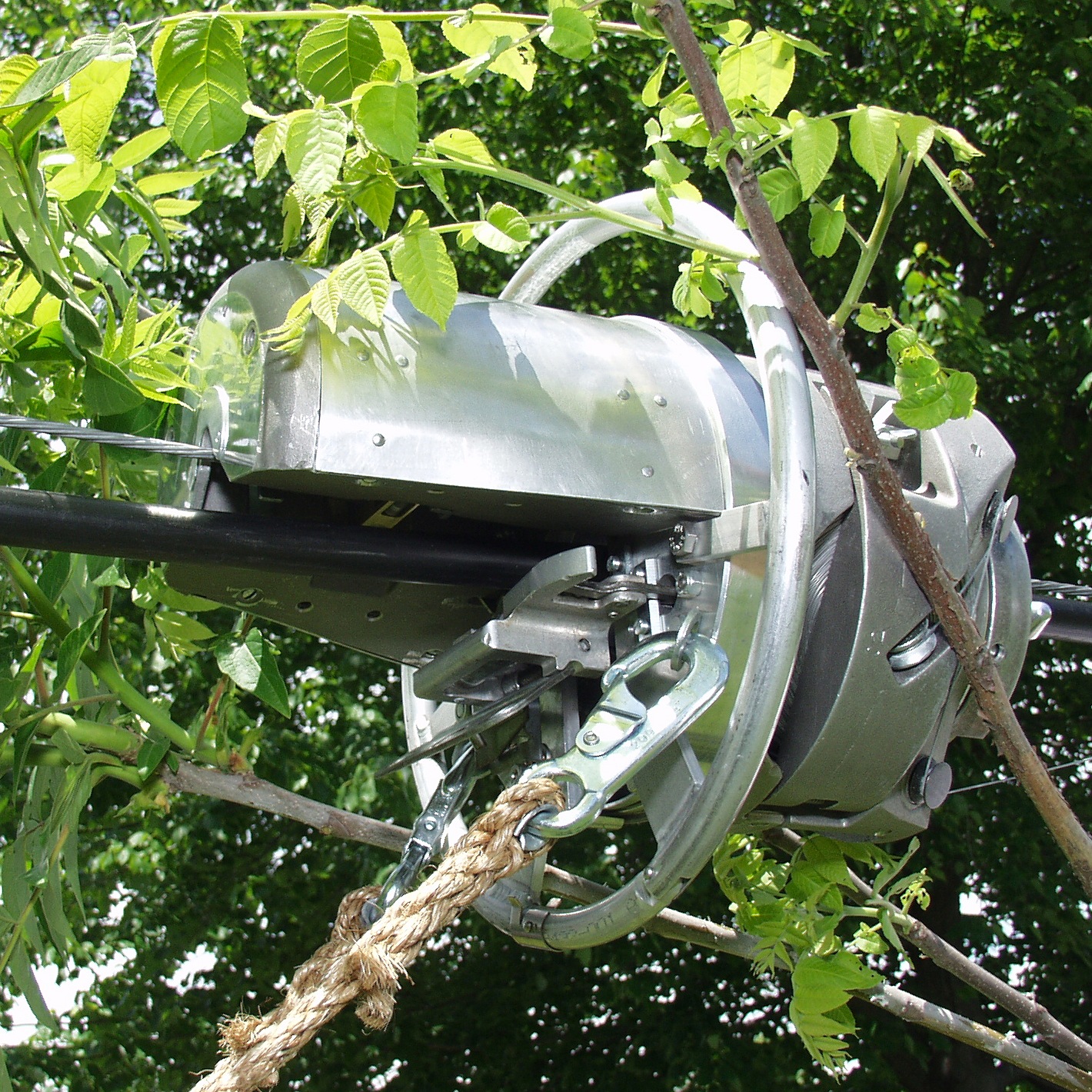

- Pre-drilled and tapped at the factory for Mounting of the Lasher Guard or “halo”. For use when Lashing in overgrown areas.
- The J2 and every GMP lasher is fully serviceable to “good-as-new” specifications at our factory and at factory-trained service locations around the globe.

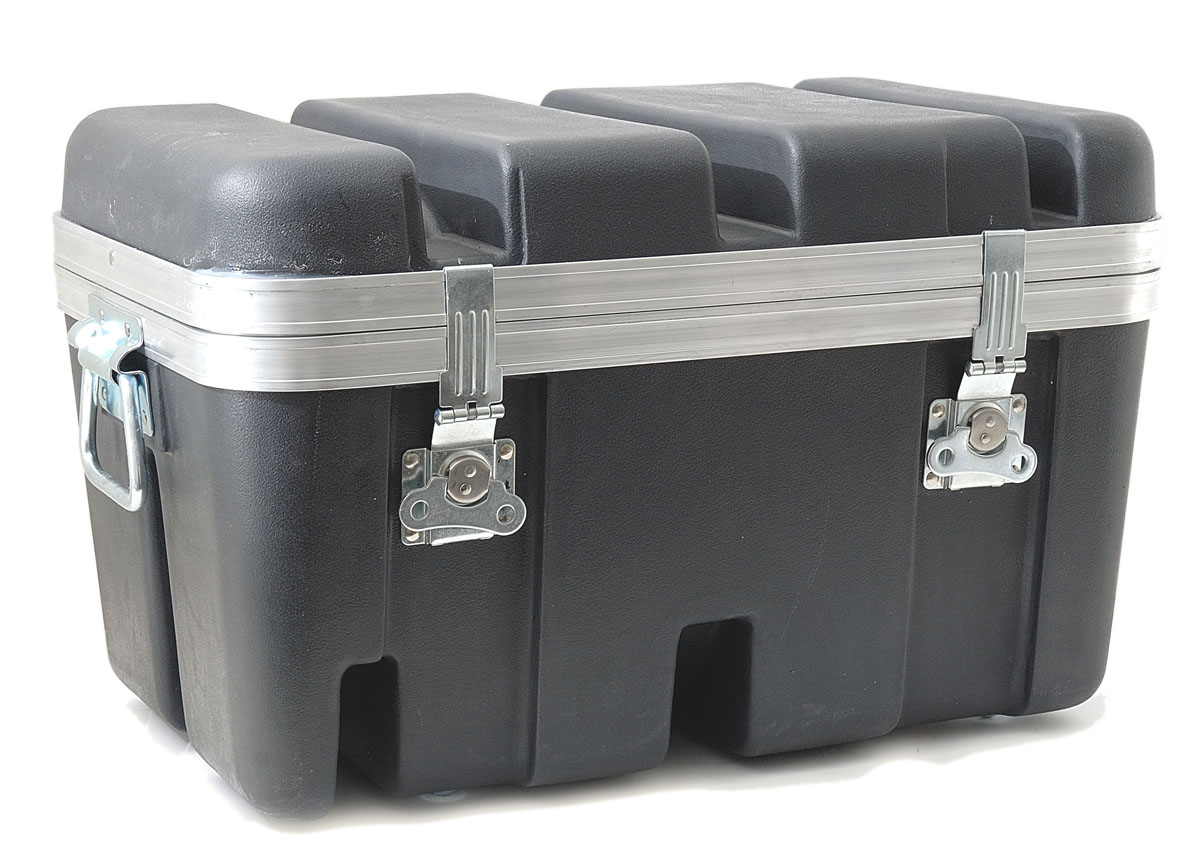

- The lasher is furnished with a rugged lightweight storage chest with corrosion resistant hardware, recessed latches and a moisture-proof, tongue-in-groove design for maximum protection when not in use
- Supplied with a 6 ft. bridle rope assembly and snap hooks, and an information and operation manual
Ordering Information:
| P/N | Description | Wire Dia | Weight |
| 86070 | J2 Cable Lasher Standard | .038-.045 | 46 lbs. (20.9kgs) |
| 86071 | J2 Cable Lasher - Modified for 450 ft. of .065 in. wire | .065 | 46 lbs. (20.9kgs) |
| 86072 | J2 Cable Lasher - Modified for 1/2 " Strand | .045 | 46 lbs. (20.9kgs) |

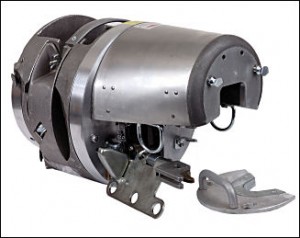

| 86074 | J2B Cable Lasher - Without strand lock and relieved for overlashing | .045 | 46 lbs. (20.9kgs) |
| 86078 | J2 Cable Lasher - Modified for 5/8 " Strand | .045 | 46 lbs. (20.9kgs) |
| 03165 | Bridle Rope Assembly only | 3 lbs. (1.4kg) | |
| 08189 | Chest only (Note: J2 Cable Lasher w/Chest Shipping Weight: 65 lbs. (29.6kgs)) | 19 lbs. (8.6kgs) | |
| 70190 | Towing Lanyard 35 ft. (250 lbs. WLL) (optional) | 6 lbs. (2.7kgs) | |
| 70012 | Lasher Guard "Halo" (optional) | 3 lbs. (1.4kg) | |
| 70014 | Lasher Guard Template Tool (Needed to install Halo on older units) | 1 lbs. (.45kg) | |

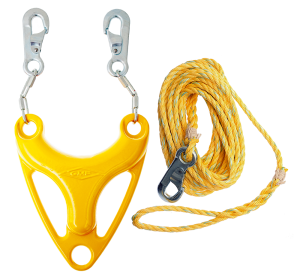

| 70467 | Cable Lasher Parallel Pull Accessory (optional) | 15.7 lbs. (7.2kg) | |
| 33286 | Ice Breaker Lasher Drive Wheels | 5.5 lbs. (2.5kgs) |
J2 CABLE LASHER | |
IDEAL APPLICATION | Telecommunication, Fiber Optic, Cable TV Industry |
MAX BUNDLE SIZE | 3 in. (76mm) |
STRAND SIZE | 1/4 - 7/16 in. (6.6M, 5/16M, 10M, 16M) |
OVERLASHING | Yes |
DRIVE | Friction Drive Wheel |
WIRE SIZE (IN.) | .038, .045, .065 (with modification) |
COIL CAPACITY | 1 or 2 depending whether single or double lashing |
Length: | 19 in. |
Width: | 11 in. |
Height: | 11 in. |
Weight: | 46 lbs. (20.9kg) |
Part Number | 86070 |
